HP 5300 User Manual
Page 90
Upgrading and Replacing Options
9-10
HP Smart Array 5300 Controller User Guide
HP CONFIDENTIAL
Writer: Jennifer Hayward File Name: j-ch9 upgrading and replacing options
Codename: SilverHammer Part Number: 135606-005 Last Saved On: 10/8/02 11:17 AM
To install the new 2- to 4-channel adapter board:
1. Insert the VHDCI connector on the adapter board into the unoccupied VHDCI
slot (1) while sliding the adapter board under the bracket lip (2) on the occupied
VHDCI slot.
1
3
2

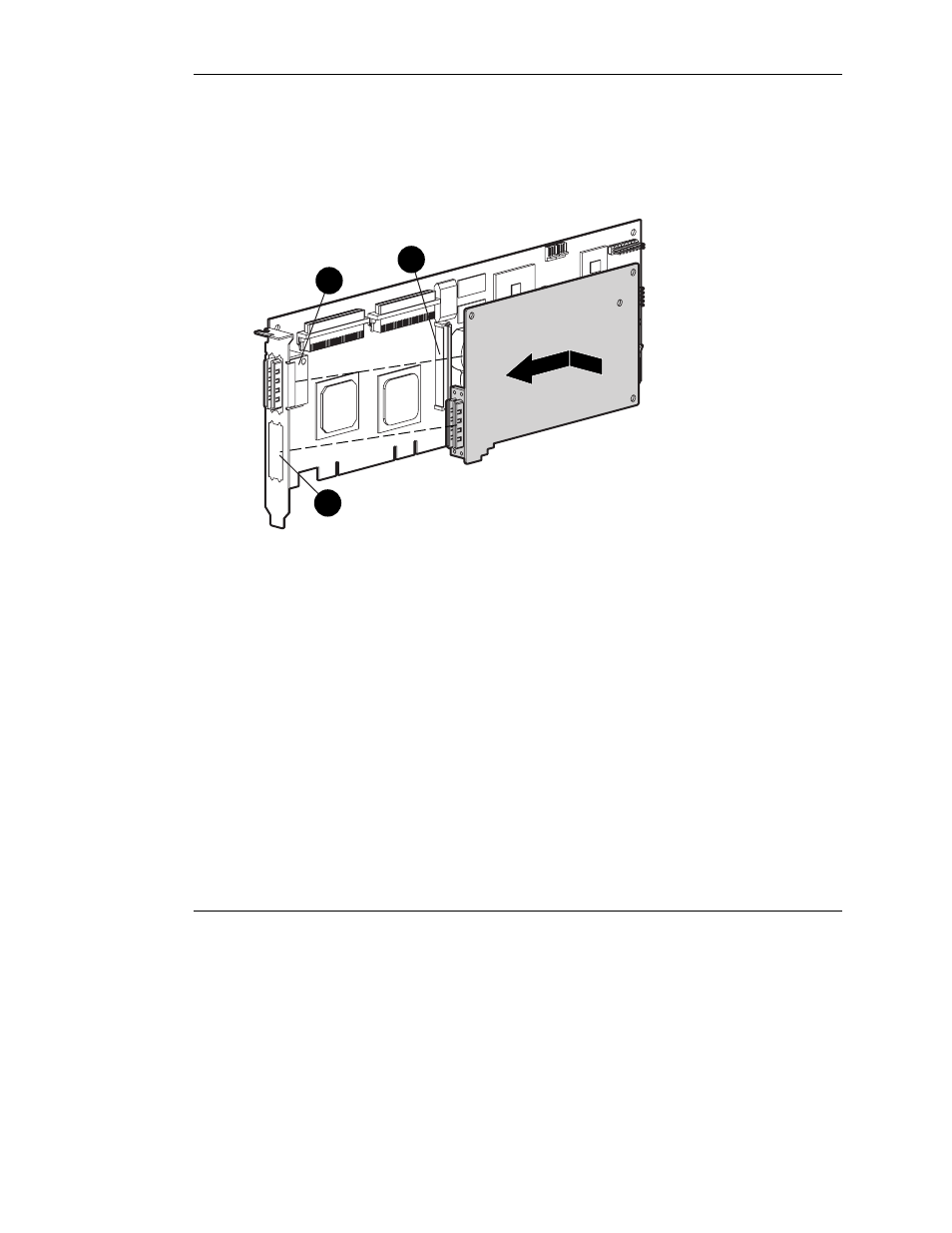

Figure 9-12: Installing the adapter board
2. Plug the adapter board into the connector (3) on the controller board.
3. Secure the adapter board to the controller board by inserting and tightening the
appropriate screw (included in the kit) in the back of the controller board.
