Upgrading and Replacing Options
HP Smart Array 5300 Controller User Guide
9-5
HP CONFIDENTIAL
Writer: Jennifer Hayward File Name: j-ch9 upgrading and replacing options
Codename: SilverHammer Part Number: 135606-005 Last Saved On: 10/8/02 11:17 AM

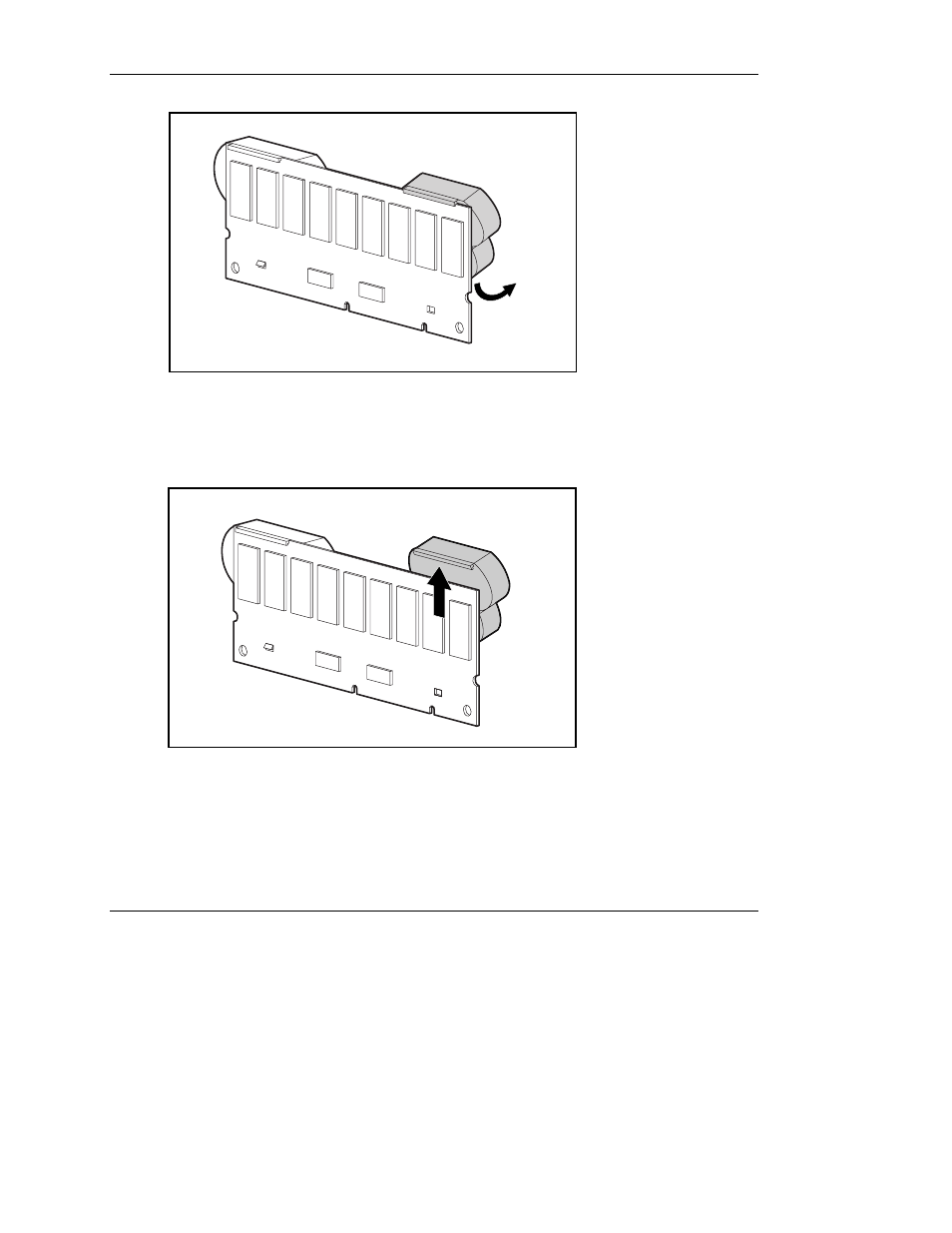

Figure 9-5: Releasing the battery pack
3. Remove the pack from the array accelerator board. If the battery pack flange
grasps the board tightly, rock the pack slightly from side to side while lifting the
pack upward.
Figure 9-6: Removing the battery pack
Since both packs are likely to be discharged at a similar rate, repeat the procedure for
the other battery pack.
