Configuring an Array
7-18 HP Smart Array 5300 Controller User Guide
HP CONFIDENTIAL
Writer: Jennifer Hayward File Name: h-ch7 configuring an array
Codename: SilverHammer Part Number: 135606-005 Last Saved On: 10/8/02 11:15 AM
3. Click the Assign Drive to Array button (Figure 7-15) in the middle of the
screen.

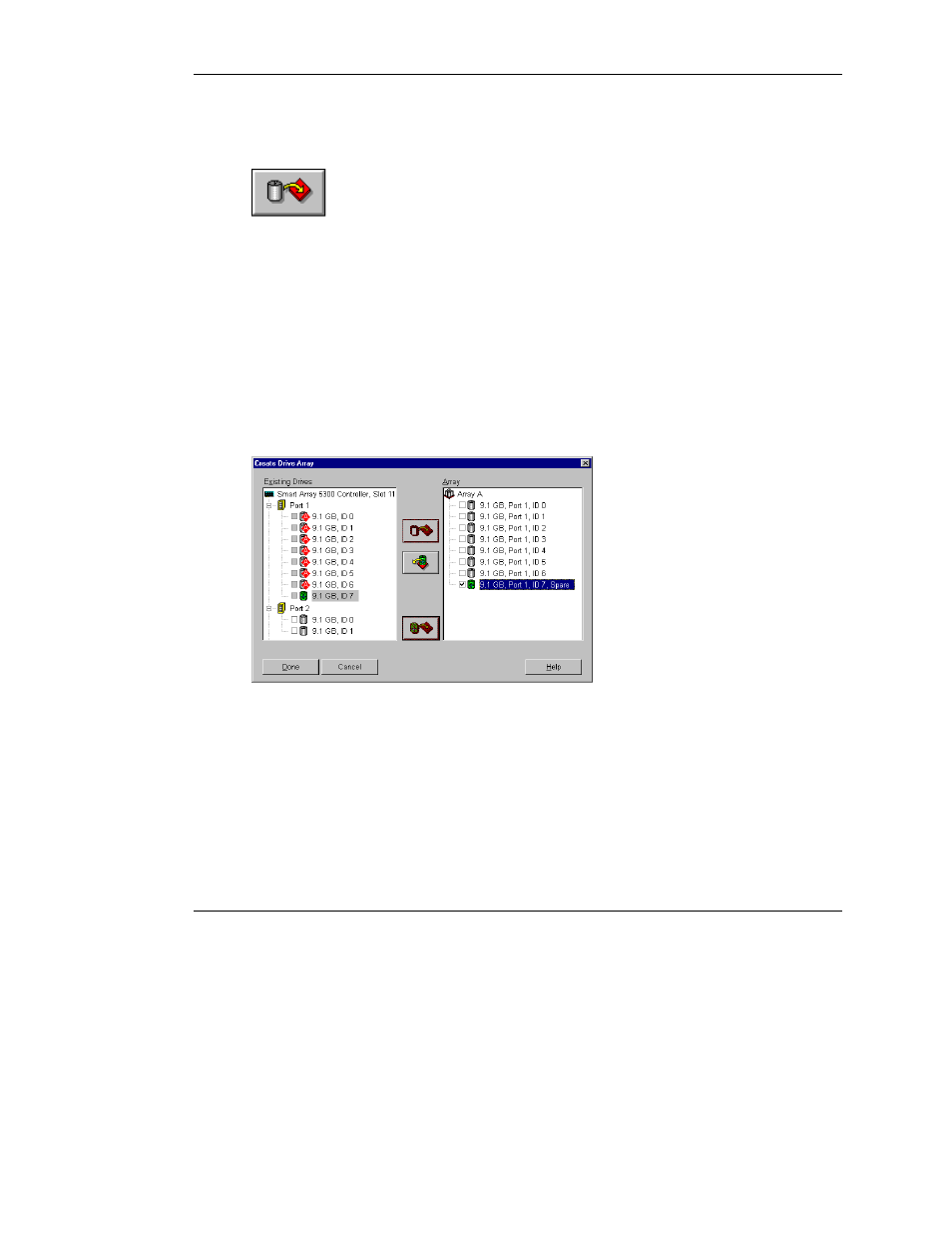

Figure 7-15: Assign Drive to Array button
4. Select the drive at Port 1: SCSI ID 7 and click the Assign Spare to Array button
in the lower middle part of the screen.
NOTE: You can share any given spare among several arrays. You can also assign
several spares to just one array, or share one group of spares among several arrays. In all
such cases, be sure that the capacity of each spare is large enough for each array that it
is assigned to. (The capacity of a spare must be no less than that of any other drives in
the same array.)
The Create Drive Array screen now looks like Figure 7-16.
Figure 7-16: Example Array A with Spare
5. Click Done to return to the main ACU screen.
