HP Smart Array 5300 Controller User Guide 1-1
HP CONFIDENTIAL
Writer: Jennifer Hayward File Name: b-ch1 board components
Codename: SilverHammer Part Number: 135606-005 Last Saved On: 10/8/02 11:08 AM
1
Board Components and Features
The HP Smart Array 5300 Series of controllers comprises two models, the 5302 and
the 5304. Model 5302 has two Wide Ultra3 SCSI channels and 128 MB of cache;
model 5304 has four Wide Ultra3 SCSI channels and 256 MB of cache. You can
upgrade the 5302 model to have four channels, 256 MB of cache, or both, by means
of the appropriate option kits.
1
2
3

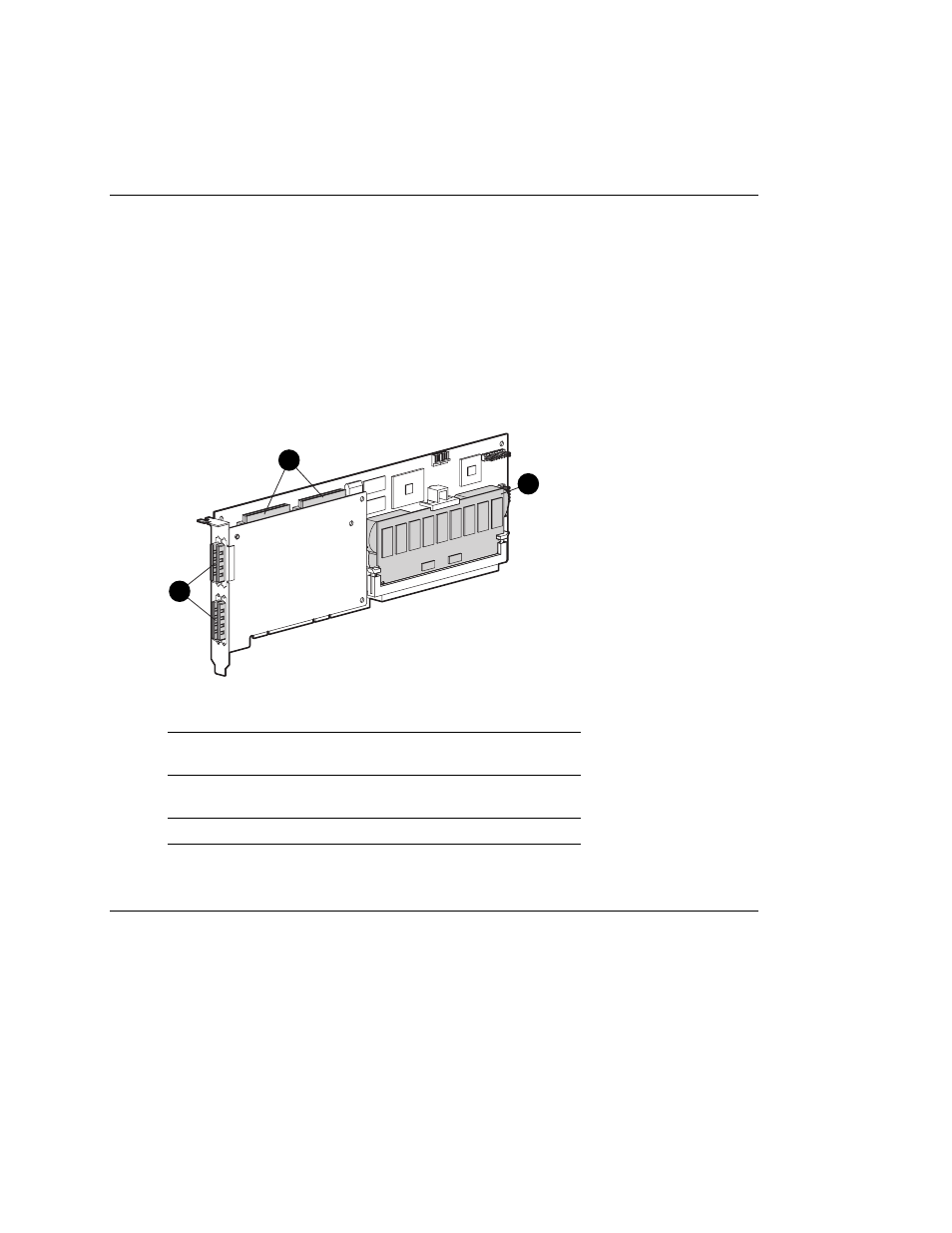

Figure 1-1: Smart Array 5304 Controller
Item Description
1 Two internal 68-pin Wide SCSI connectors (port 1
nearer the bracket, port 2 nearer the board center)
2 Four external (VHDCI) connectors (ports 1 and 3
nearer the main board)
3 Array accelerator cache
