Configuring an Array
HP Smart Array 5300 Controller User Guide 7-11
HP CONFIDENTIAL
Writer: Jennifer Hayward File Name: h-ch7 configuring an array
Codename: SilverHammer Part Number: 135606-005 Last Saved On: 10/8/02 11:15 AM
NOTE: If you optimize the Accelerator Ratio settings, you may also want to change the
Stripe Size setting. For details, refer to the “Create Logical Drive Screen” section, Table 7-2,
and Table 7-3.
Create Drive Array Screen
To display this screen, click Create Array in the Controller box (Figure 7-6) on the
main ACU screen.

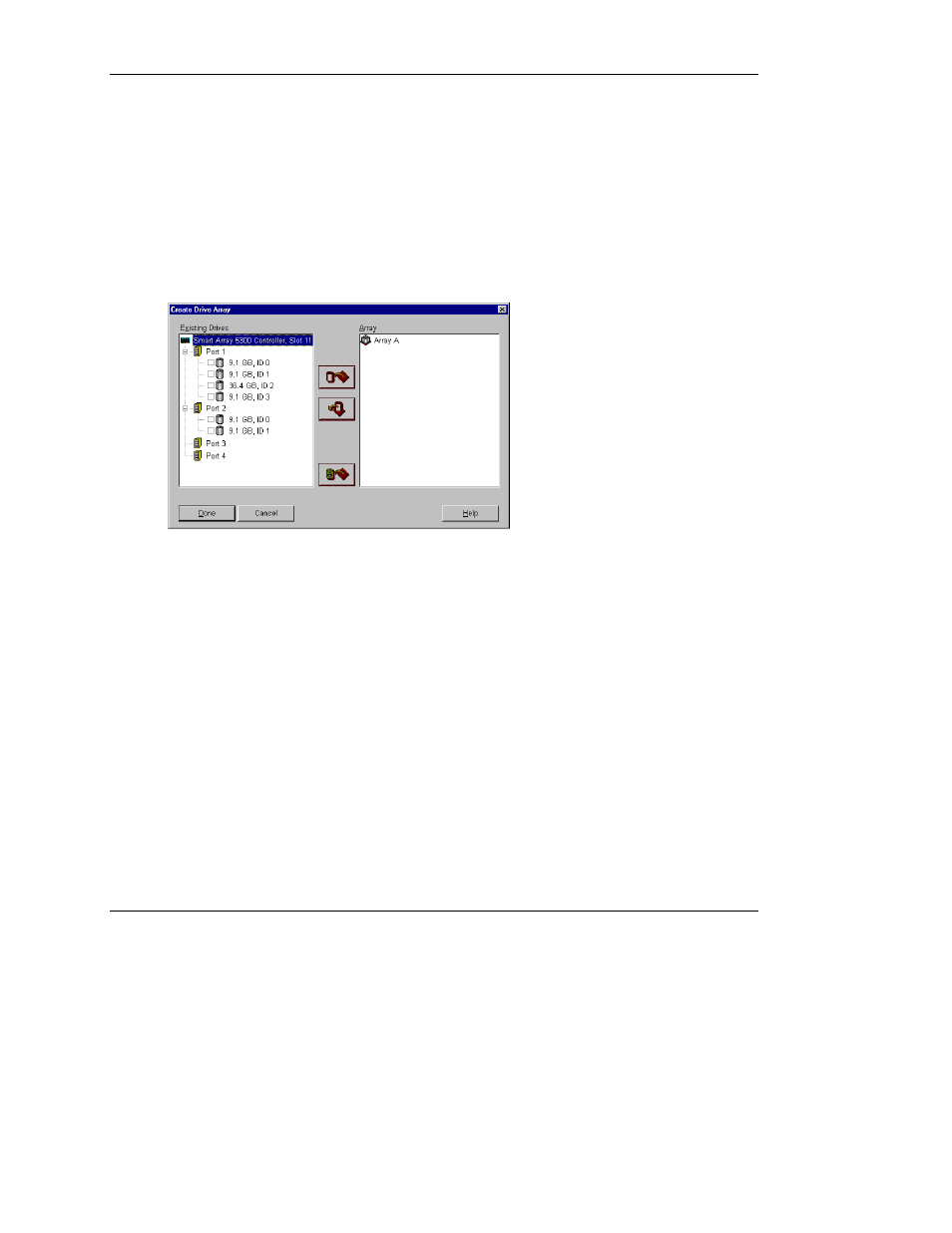

Figure 7-10: Create Drive Array screen
The three buttons in the middle of this screen, from top to bottom, are:
• Assign Drive to Array
• Remove Drive from Array
• Assign Spare to Array
The left-hand panel of the screen shows all the physical drives that are connected to
the selected controller. The right-hand panel shows the physical configuration view
of the arrays on the controller.
