Configuring an Array
HP Smart Array 5300 Controller User Guide 7-27
HP CONFIDENTIAL
Writer: Jennifer Hayward File Name: h-ch7 configuring an array
Codename: SilverHammer Part Number: 135606-005 Last Saved On: 10/8/02 11:15 AM
Running CPQONLIN
1. Enter
cpqonlin at the console prompt.
2. Use the arrow keys to highlight Array Configuration Utility, and then press the
Enter key.
3. From the list of controllers that is presented, select the one that you want to
configure.
— If no logical drives are configured for the controller, the auto-configuration
wizard screen (Figure 7-21) is displayed.
— If logical drives are present on the controller, the manual configuration
screen (Figure 7-22) is displayed.
Press the F1 key for online help at any time on either screen.
Automatic Configuration

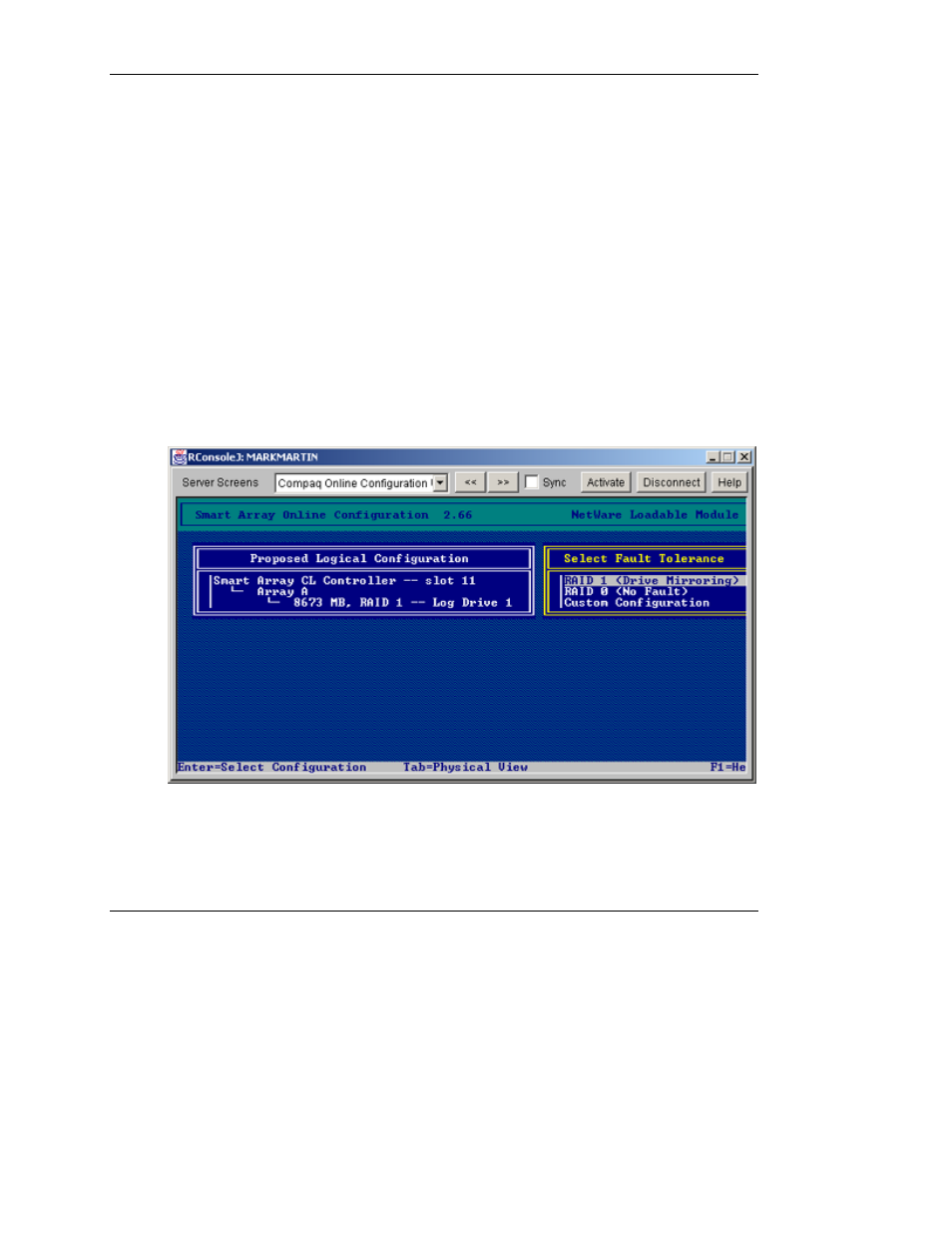

Figure 7-21: CPQONLIN auto-configuration wizard
screen
