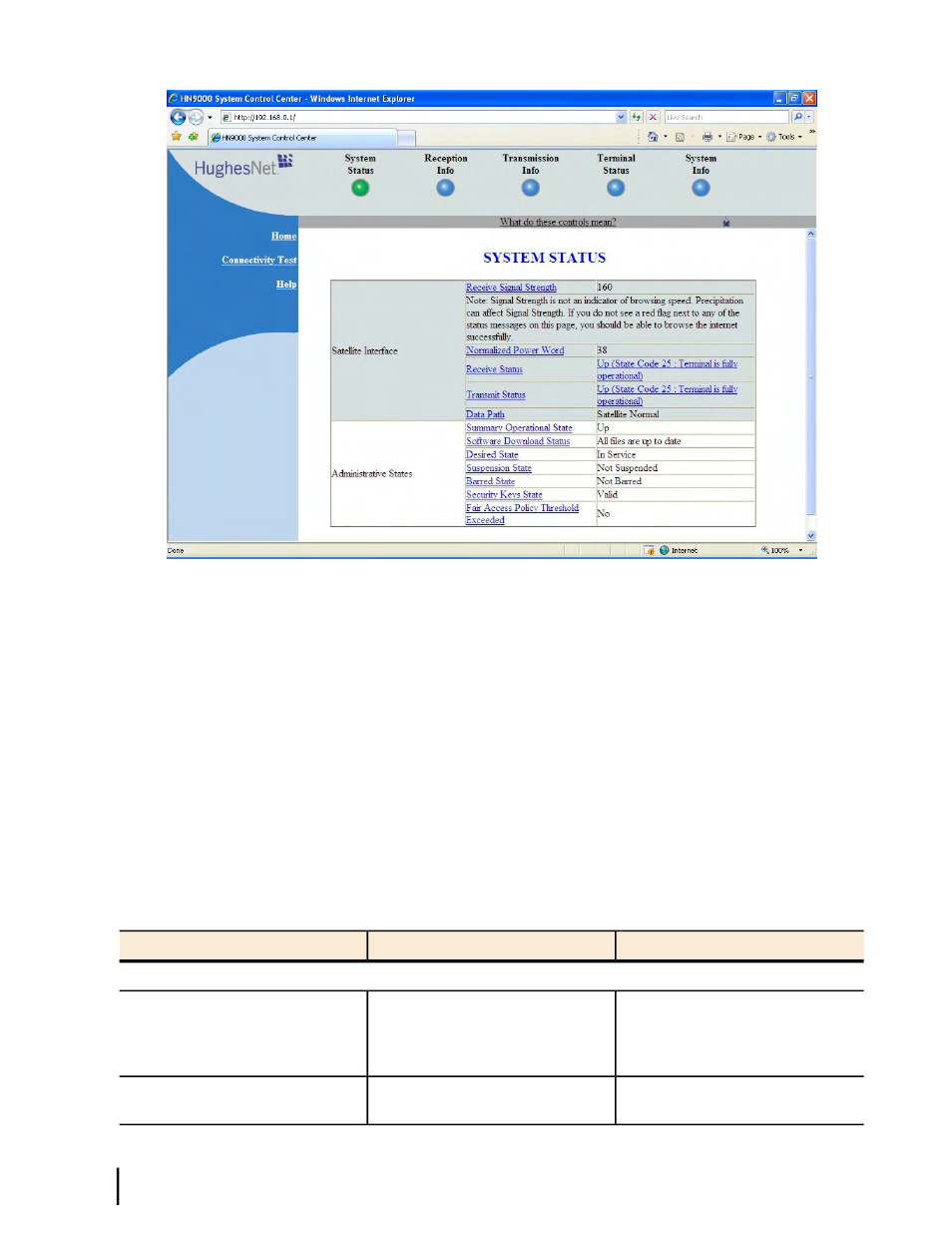

Figure 50: System Status page
The operational parameters listed on the System Status page are shown in a tabular format. The
first (left) column identifies the parameter categories:
• Satellite Interface – Contains information on the receive status and signal strength, as well
as error messages related to satellite modem receive information.
• Administrative States – Contains information on software downloads to this satellite modem,
security keys, and other administrative functions.
Typical values for System Status parameters
The following table lists typical values and the range of values for parameters on the System
Status page. This information may help you understand the values displayed by a customer’s
satellite modem.
To see the definition of any parameter, click the parameter name on the screen.
Table 10: System Status parameters – typical values and range
Range of values Typical values Parameter
Satellite Interface (parameter category)
0–255 160–220 Receive Signal Strength (value is
not displayed until about 2 minutes
after certain events such as modem
re-boot or antenna repointing)
20–65 29–45 Normalized Power Word (value is
not displayed until about 2 minutes
