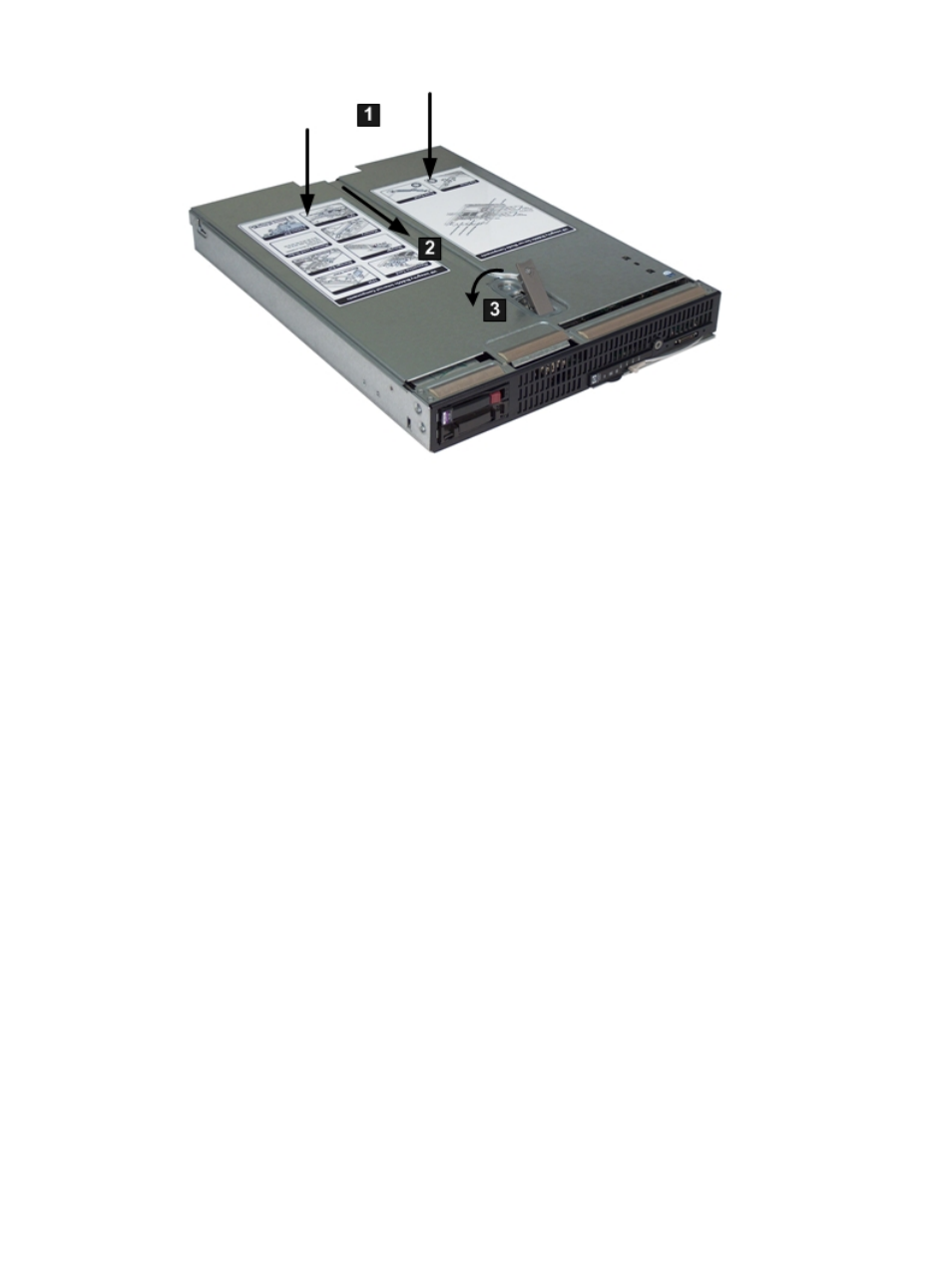

Figure 20 Replacing the Access Panel
4. Lock the access panel cam (if necessary) by turning the cam clockwise with the Torx T–15 or
flathead screwdriver.
Installing and Powering On the Server Blade
This section describes how to install the server blade into a standard c-Class enclosure and power
it on. When you install the server blade into the enclosure, the server blade powers up to standby
mode.
Installing the Server Blade into the c-Class Enclosure
To install the server blade into a standard c-Class enclosure:
1.
Remove the two half-height filler panels from the enclosure (if necessary).
2. Remove the half-height blade shelf (if necessary).
3. Ensure the extraction lever is released (open) on the server blade.
4. Slide the server blade into the enclosure.
See Figure 21 .
