3. Tighten the thumbscrews on the mezzanine card until snug to secure the card to the system
board (2).
See Figure 18 .

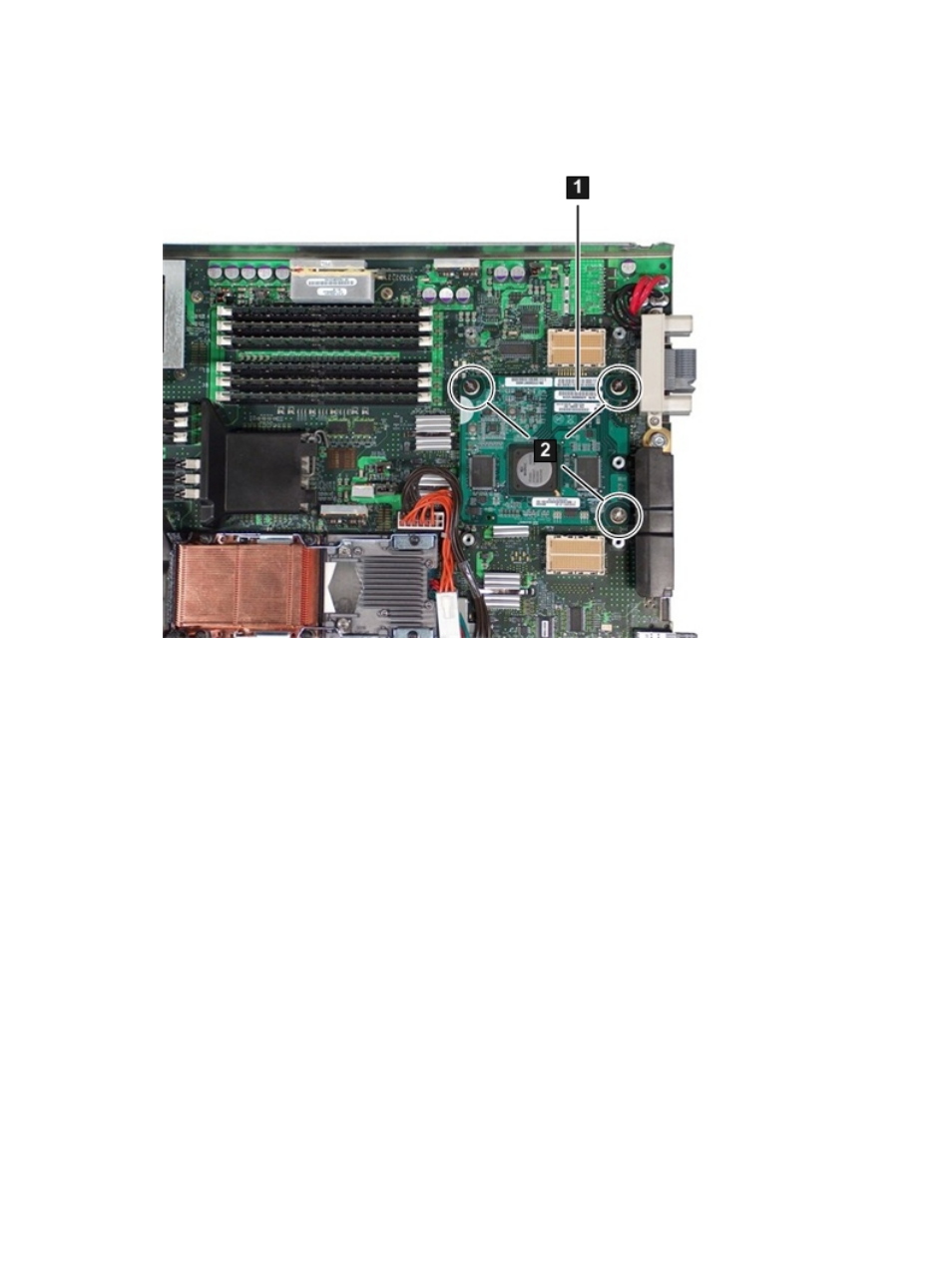

Figure 18 Mezzanine Card 1 Installed on the Server Blade System Board
Installing a Mezzanine Card to Ports 2 and 3
To insert a mezzanine card into the PCIe x8 ports 2 and 3 on the system board:
1.
Line up the plastic pins on the mezzanine card connector on the PCIe x8 port 2 on the system
board.
2. Push down on the card directly above the port to seat the card into port 2
3. Tighten the thumbscrews on the mezzanine card until snug to secure it to the system board.
4. Line up the plastic pins on the mezzanine card connector on the PCIe x8 port 3 on the system
board.
5. Push down on the card directly above the port to seat the card into port 3.
