Using the Universal Volume Manager GUI 4-19
Hitachi Universal Storage Platform V/VM Universal Volume Manager User’s Guide
Port Operation Window
The Port Operation window enables you to check the settings of ports and set
the port attributes. To display the Port Operation window, click Go, Universal
Volume Manager, and then Port Operation on the menu bar of the Storage
Navigator main window.

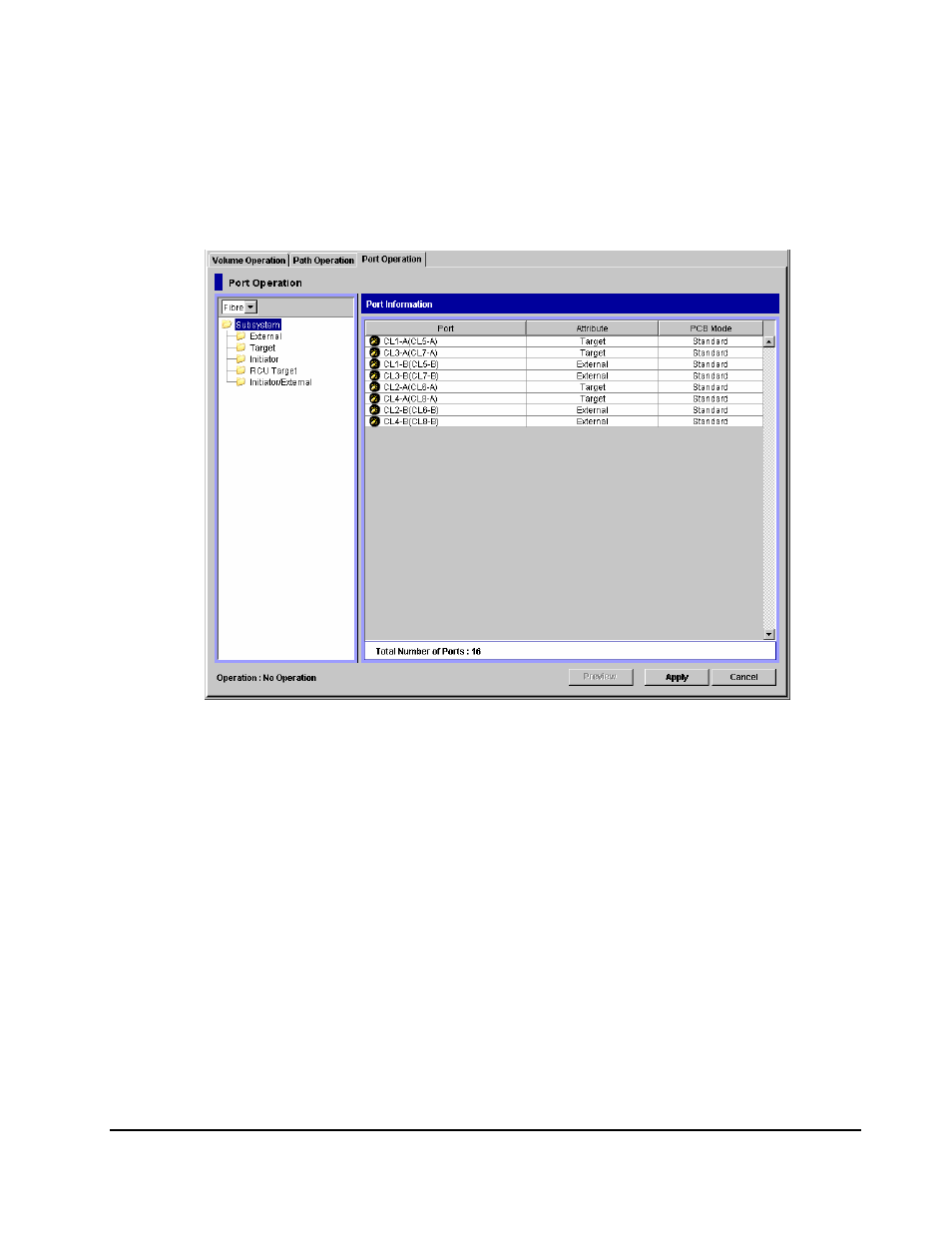

Figure 4-9 Port Operation Window
The Port Operation window consists of:
• Port Operation Tree (left of the window)
The left pane of the window is composed of a tree, and a drop-down list
which is used to switch the display of the tree. The contents displayed in
the list (right of the window) change corresponding to the items selected in
the tree.
• Port Operation List (right of the window)
Information on the port is displayed corresponding to the items selected in
the tree. The list can be sorted by the displayed items. For example, if you
want to sort the list in the order of port numbers, click Port on the list.
• Operation (lower left of the window)
The name of the performed setting operation is displayed. You can check
the details in the Preview dialog box by clicking the Preview button.
