A-16 Connecting External Storage Systems
Hitachi Universal Storage Platform V/VM Universal Volume Manager User’s Guide
External
Port 1
External
Port 2
Switch
EVA
LUN 1
LUN 1
LUN 2
LUN 2
HostGroup-1
HostGroup-2
World Wide LUN Name
600508b4 001028cb
00005000 011d0000
EVA
Port A
EVA
Port B
World Wide LUN Name
600508b4 001028cb
00005000 01200000
World Wide LUN Name
600508b4 001028cb
00005000 01230000
World Wide LUN Name
600508b4 001028cb
00005000 012c0000
Local Storage System

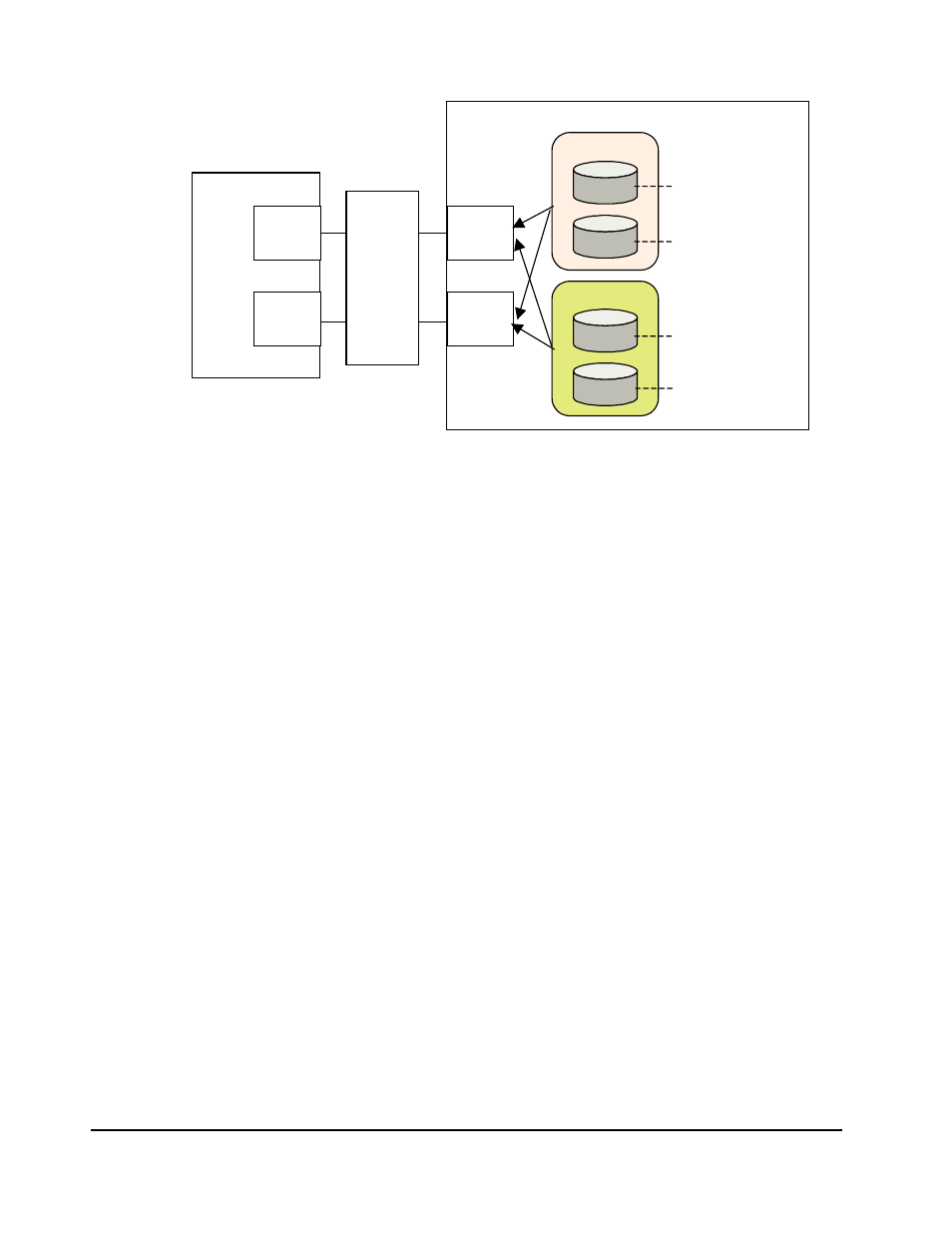

Figure A-1 Configuration Example for which Logical Volumes Cannot be
Identified only by Characteristic
