About Universal Volume Manager Operations 2-23
Hitachi Universal Storage Platform V/VM Universal Volume Manager User’s Guide
Mapping
External
Storage System
Legend
Set the Target port and set the LU path
from the Target port for the host I/O.
Target
Port
Host
: Internal volume where the external volume is mapped
: External volume
Local
Storage System

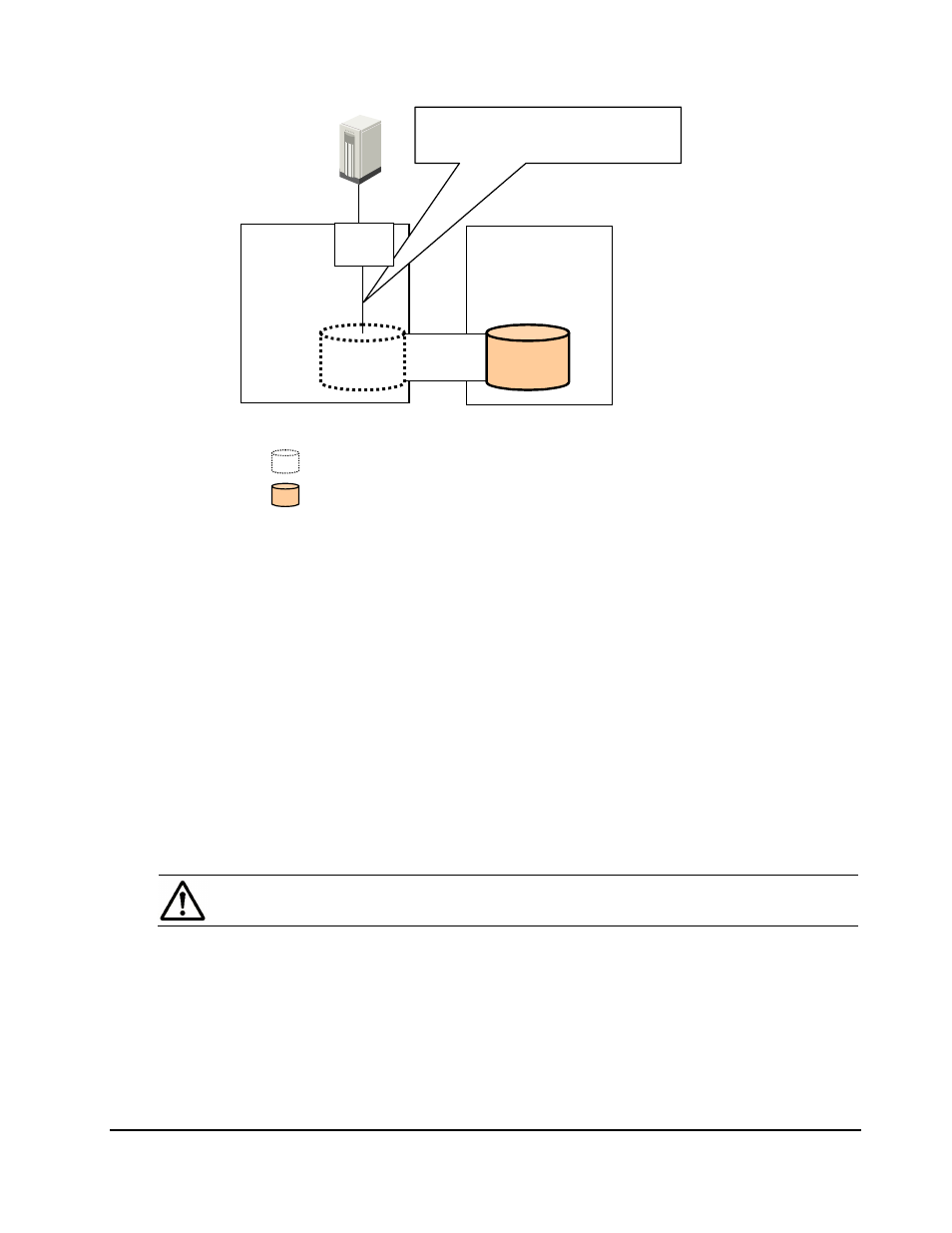

Figure 2-10 Storing the New Data in the Mapped External Volume
Using Existing Data in the Mapped External Volume
To use the existing data in the mapped external volume from the host that is
connected to the local storage system:
1. Store the data from the host that is connected to the external storage
system to the volume in the external storage system .
2. Map the volume containing data in the external storage system as an
internal volume of the local storage system using Universal Volume
Manager.
When you map the external volume, set the attributes of the mapped
volume as follows:
– Emulation type: OPEN-V
Note: You have to set the emulation type to OPEN-V to read the existing
data in the mapped external volume from the local storage system side.
3. Set the LU path from the Target port to the mapped volume to perform
the host I/O operation.
After the LU path is set, the host I/O operation to the mapped volume can
be initiated.
