5-18 Performing Universal Volume Manager Operations
Hitachi Universal Storage Platform V/VM Universal Volume Manager User’s Guide

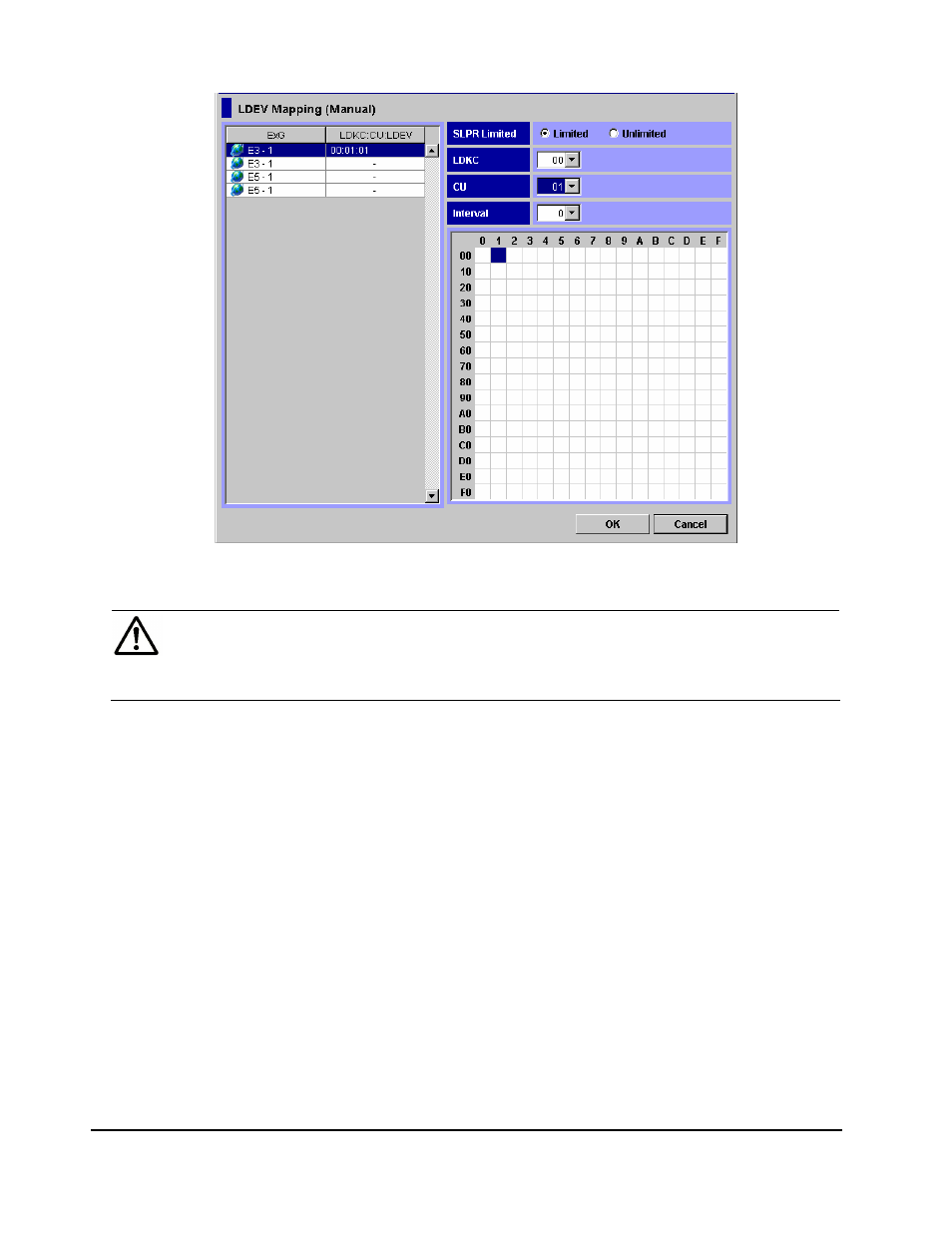

Figure 5-8 Example of LDEV Mapping (Manual) Dialog Box
Note: You can also assign contiguous LDEV numbers to LDEVs using this
dialog box. To assign contiguous LDEV numbers to LDEVs, select multiple
LDEVs at step 2, and specify the starting LDEV number at step 3 and 4. You
can set Interval if necessary.
Setting the Cross-subsystem Paths
You need to configure the cross-subsystem path from the internal volume to
the external volume before using the external volume mapped as an internal
volume.
You can configure the cross-subsystem path when you map the external
volume as the internal volume. You can also add or change the cross-
subsystem paths after the mapping operation is completed. To configure the
cross-subsystem paths, use the Configure Cross-subsystem Paths dialog box.
