4-2 Using the Universal Volume Manager GUI
Hitachi Universal Storage Platform V/VM Universal Volume Manager User’s Guide
Volume Operation Window
The Volume Operation window enables you to perform the operations, such as
mapping external volumes and setting cross-subsystem paths. To display the
Volume Operation window, click Go, Universal Volume Manager, and then
Volume Operation on the menu bar of the Storage Navigator main window.

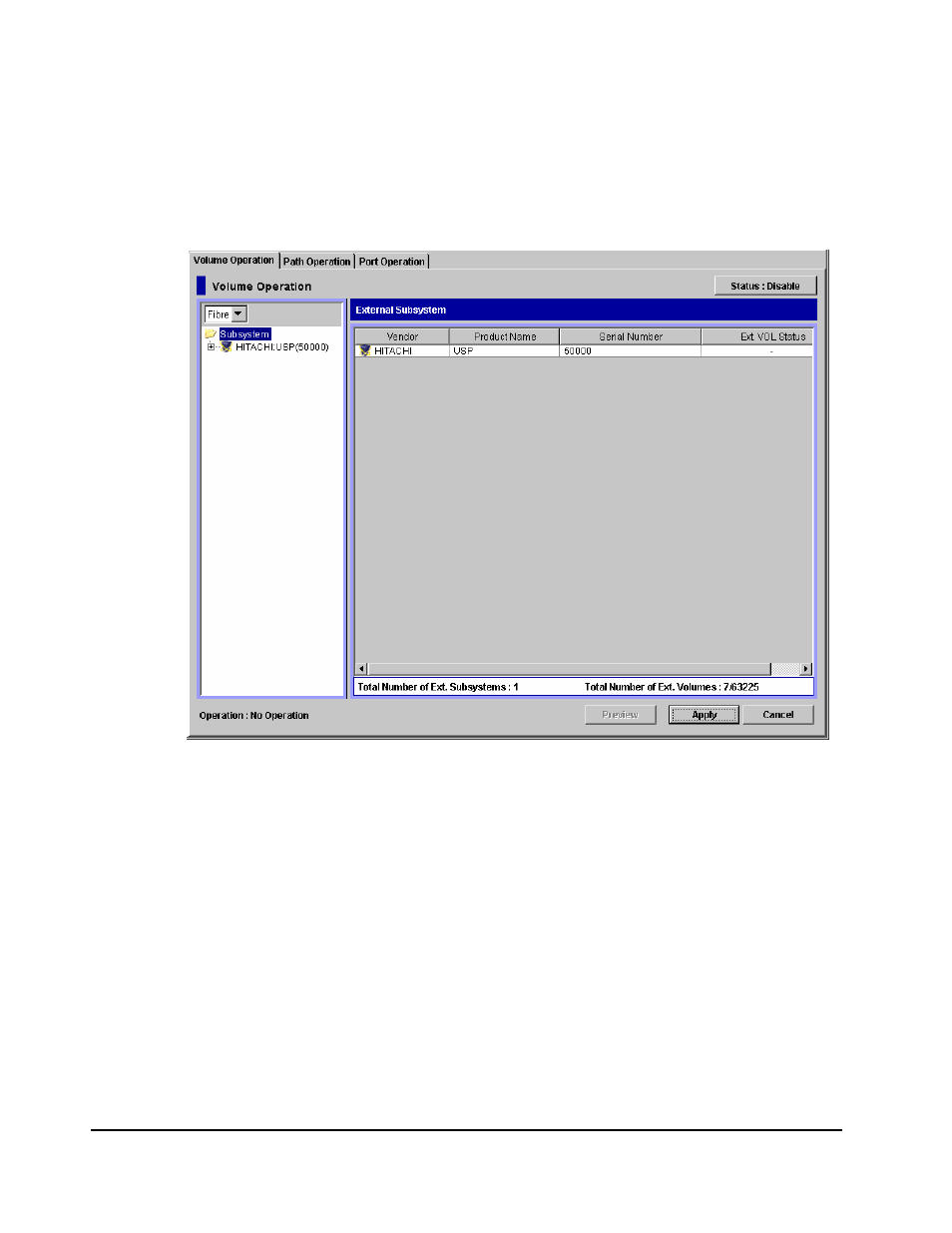

Figure 4-1 Volume Operation Window
The Volume Operation window consists of:
• Volume Operation Tree (left of the window)
The left pane of the window is composed of a tree, and a drop-down list
which is used to switch the display of the tree. The contents displayed in
the list (right of the window) switch corresponding to the items selected in
the tree.
• Status: Disable button or Status: Enable button (upper right of the
window)
When you click Status: Disable, the button name changes to Status:
Enable and you can display the external volume status in the Ext. VOL
Status column in the Volume Operation list.
