5-12 Performing Universal Volume Manager Operations
Hitachi Universal Storage Platform V/VM Universal Volume Manager User’s Guide

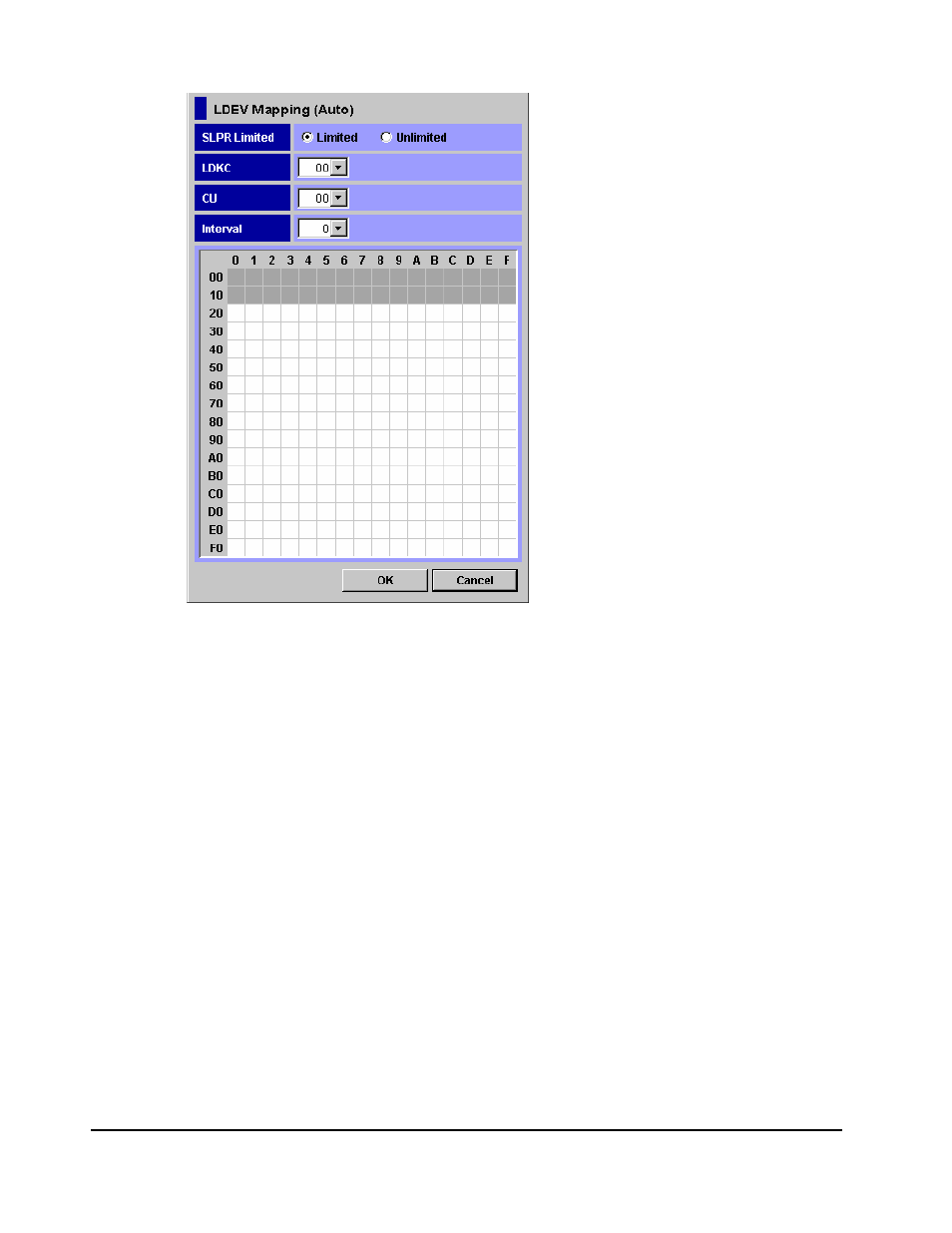

Figure 5-4 LDEV Mapping (Auto) Dialog Box
The LDEV Mapping (Auto) dialog box consists of:
• SLPR Limited
To restrict the CU in the CU drop-down list to the CU which belongs to the
SLPR, select the Limited. To display all the CU in the CU drop-down list
without any restriction, select the Unlimited. By default, the Limited is
selected.
• LDKC drop-down list
You can select the LDKC number of the local storage system to which you
want to map the external volume.
• CU drop-down list
You can select the CU number of the local storage system to which you
want to map the external volume. When you select Limited in the SLPR
Limited, the selection range is limited to CU which belongs to the SLPR.
• Interval drop-down list
You can select the interval of the LDKC:CU:LDEV number for mapping each
volume. The LDEV number is set to each LDEV with the interval that you
specified in this drop-down list.
