4-12 Using the Universal Volume Manager GUI
Hitachi Universal Storage Platform V/VM Universal Volume Manager User’s Guide
Path Operation Window
The Path Operation window enables you to stop or resume using cross-
subsystem paths. To display the Path Operation window, click Go, Universal
Volume Manager, and then Path Operation on the menu bar of the Storage
Navigator main window.

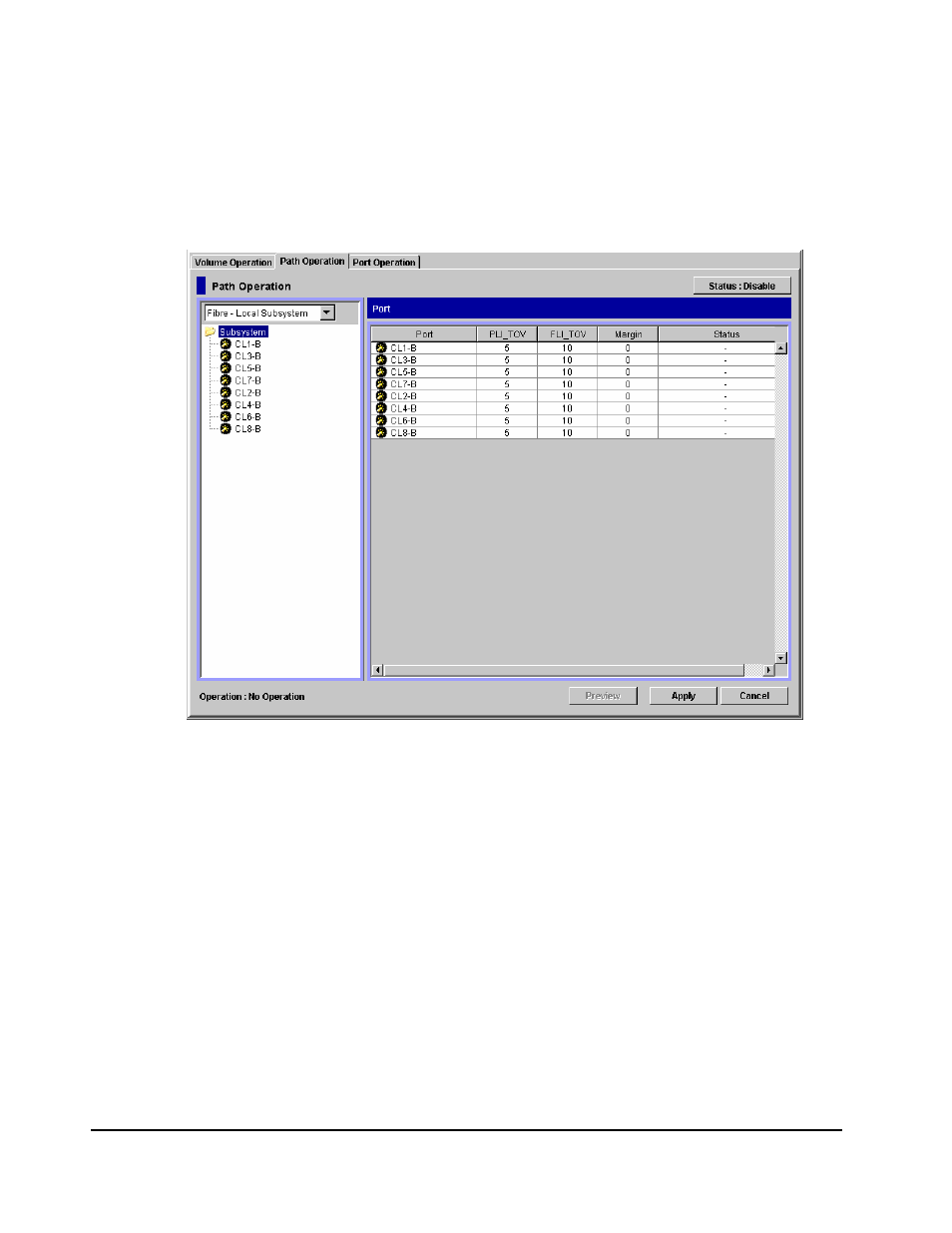

Figure 4-5 Path Operation Window
The Path Operation window consists of:
• Path Operation Tree (left of the window)
The left pane of the window is composed of a tree, and a drop-down list
which is used to switch the display of the tree. The contents displayed in
the list (right of the window) change corresponding to the items selected in
the tree.
• Status: Disable button or Status: Enable button (upper right of the
window)
When you click Status: Disable, the button name changes to Status:
Enable and you can display the cross-subsystem path status in the Status
column in the Path Operation list.
