2. Installation

2.9 EtherNet/IP Board Installation

Following two board types can be used for the fieldbus I/O option EtherNet/IP.

- PCU-ETHIO

2.9.1 Board Appearance

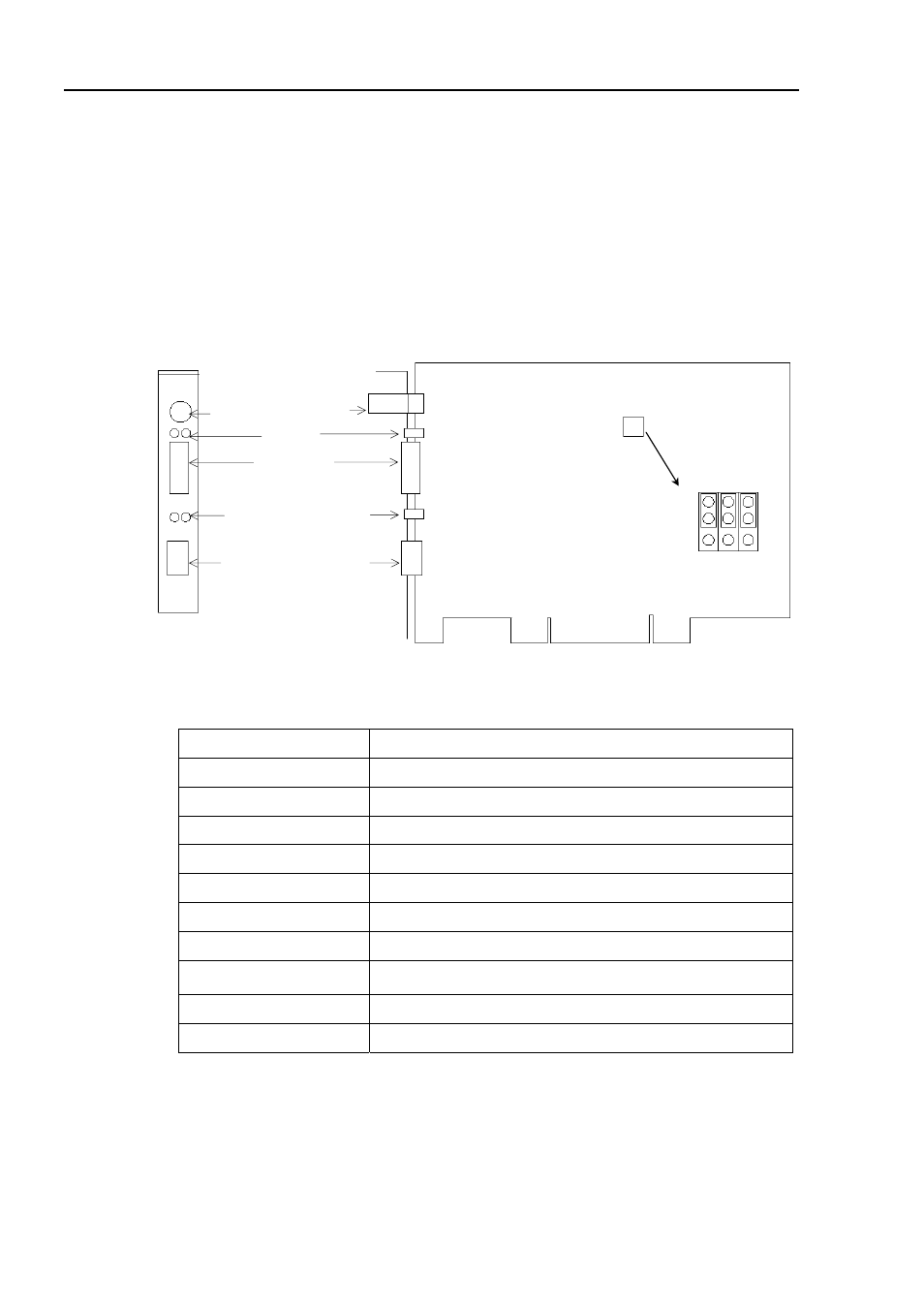

Part names and functions of the scanner board are shown in the following figure. For details
of the status display LEDs, refer to the 4. Troubleshooting in this manual.

PCU-ETHIO

C0 C1 C2

JP1

0

1

D-Sub 9 pin

(Not in use)

Status Display LED (2)

EtherNetI/P Connector

4-pin Terminal

Watchdog Port

(Do not use this port.)

Jumper for Board Address

LED (2)

(Not in use)

2.9.2 Specifications

Part Number

applicom PCU-ETHIO

Modes Master/Slave

Baud Rates

10, 100 Mbps

Interface EtherNet/IP

port

Maximum Node

127

Connection Type

Cyclic, Change of State

Explicit messaging

Yes

EDS support

Yes

Input Data Size

1 to 505 bytes

Output Data Size

1 to 509 bytes

Automatic Detection

Yes. Devices can be detected automatically.

Fieldbus I/O Rev.6
