4

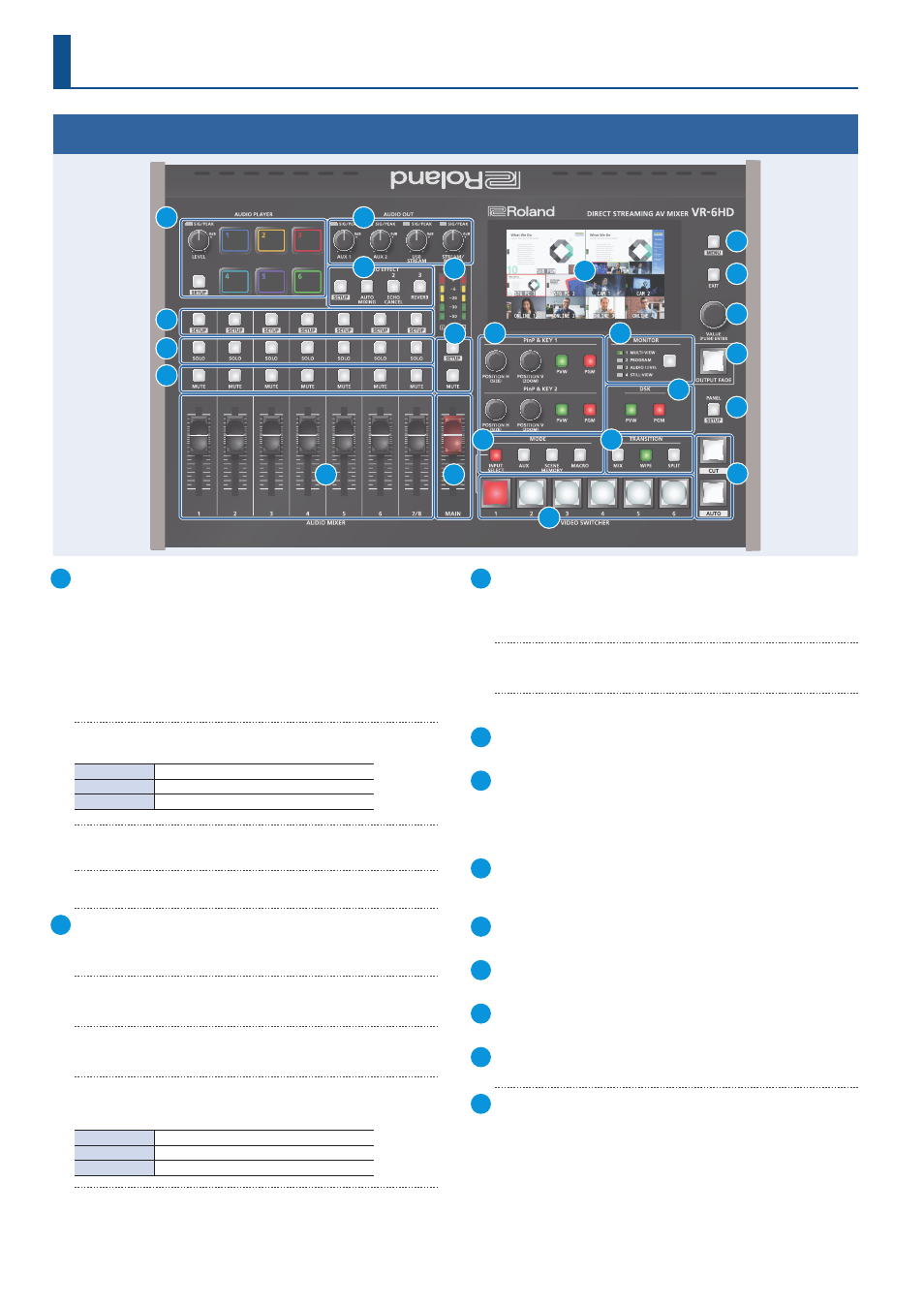

Top Panel
Panel Descriptions
1 AUDIO PLAYER
This section lets you assign sound sources such as background
music, sound effects and so on to the pads and then play them
back.
* You can use an audio file (WAV format) stored on a USB flash drive or
an SD card as the source.
[LEVEL] knob
Adjusts the playback volume of the sound source.
SIG/PEAK indicators
These indicators light up when audio output is detected.
Lit red Volume is excessive (0 dB or higher)
Lit yellow Appropriate volume (-20 to -1 dB)
Lit green Insufficient volume (–50 to -21 dB)
[SETUP] button
Shows the setup screen in the display.
Pads [1]–[6]
Press a pad to play back the assigned sound source.
2 AUDIO OUT
[AUX 1], [AUX 2] knobs
Adjusts the volume of the AUX bus output.
[USB STREAM] knob
Adjusts the volume of the USB output.
[STREAM/RECORD] knob
Adjusts the volume of streaming/recording.
SIG/PEAK indicators
These indicators light up when audio output is detected.
Lit red Volume is excessive (0 dB or higher)
Lit yellow Appropriate volume (-20 to -1 dB)
Lit green Insufficient volume (–50 to -21 dB)
3 AUDIO EFFECT
[1]–[3] buttons
Press to turn the audio effects on/off. You can also assign different
functions to each button.
[SETUP] button
Shows the setup screen in the display.
AUDIO MIXER
4 [SETUP] button
Shows the setup screen in the display.
5 [SOLO] buttons
Press these buttons to allow only the audio of the selected input
channels to be output. When this is turned on (the button lights
up) for a channel, you can monitor the pre-fader audio for that
channel through headphones.
6 [MUTE] buttons
Press these buttons to mute (silence) the audio of the selected
input channels.
7 Level meters
Shows the main output level.
8 [SETUP] button , [MUTE] button
These buttons are for the main output.
9 [1]–[7/8] faders
These adjust the input volume for each channel.
10 [MAIN] fader
Adjusts the output volume.
11 Display (Touch Panel)
Shows the status of the input/output video and of streaming/
recording, as well as the parameters and menus.
10
2
11
20
3
17
8
9
5
6
7
1
4
12
13
16
19
21
15
14
18
22
23
