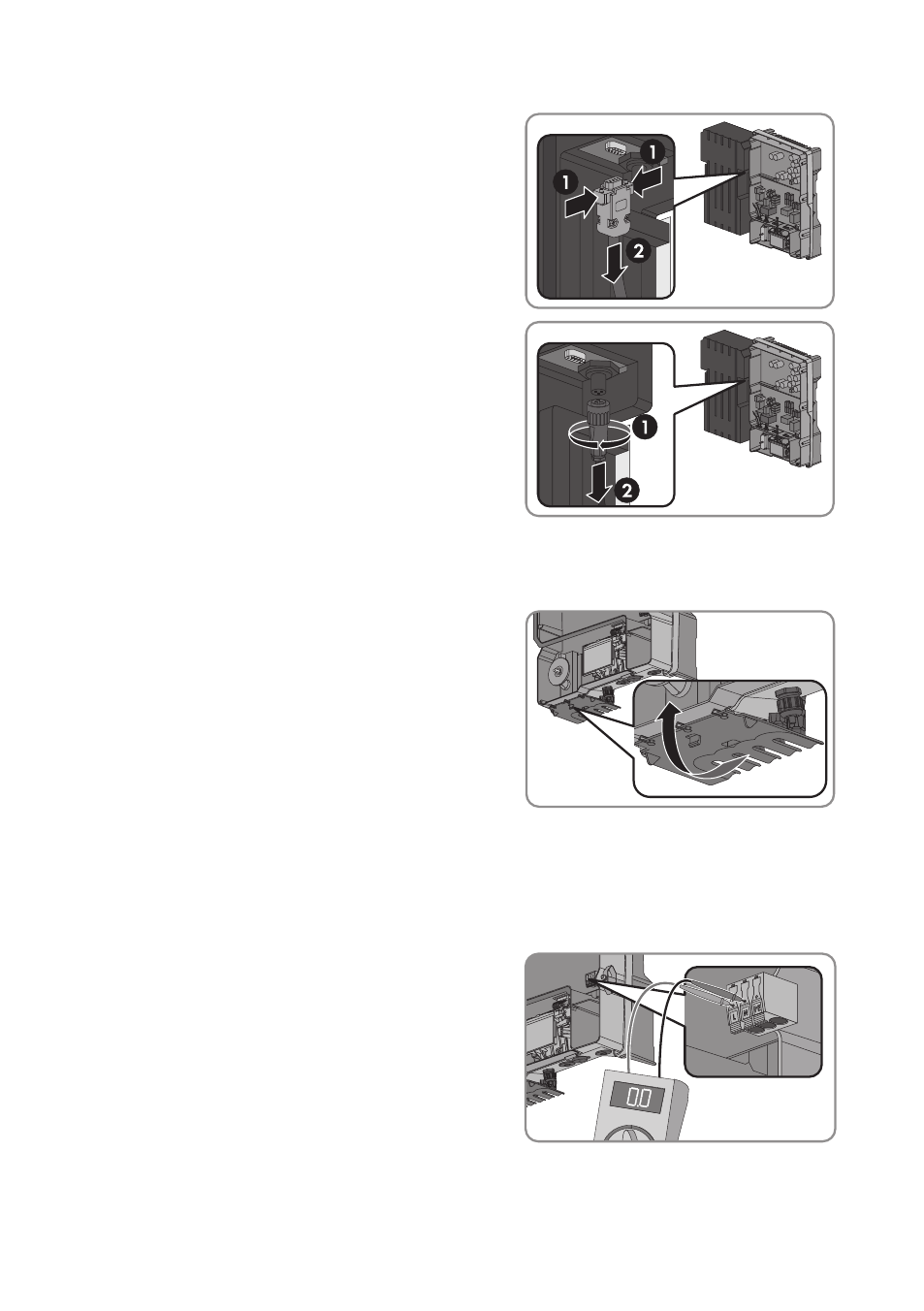

9. Remove the data cable from the Battery Pack.
Press the lateral brackets in and pull the plug out
of the pin connector.
10. Remove the power cable from the Battery Pack.
Turn the mating plug to the left until it releases
and pull it out of the pin connector.
11. If the protective caps of the pin connectors for the data cable and the power cable are
available, use them to cover the corresponding pin connectors of the Battery Pack.
12. Insert the data cable and power cable into the bracket on the left-hand side of the inverter.
13. Flip the DC contact protection up and press
firmly until it snaps into place.
14. Use a current clamp to ensure that no current is present in the DC cables.
15. Release and remove all DC connectors. To do this, insert a flat-blade screwdriver or an angled
screwdriver (blade width: 3.5 mm) into one of the side slots and pull the DC connectors
straight out. Do not pull on the cable.
16. Ensure that no voltage is present at the DC inputs on the inverter.
17. Ensure that no voltage is present on the AC
connecting terminal plate between L and N
using a suitable measuring device. Insert the test
probe into each round opening of the terminal.
