Page 28: Interior view, Ac connection, Requirements for the ac connection

6.1.2
Interior View

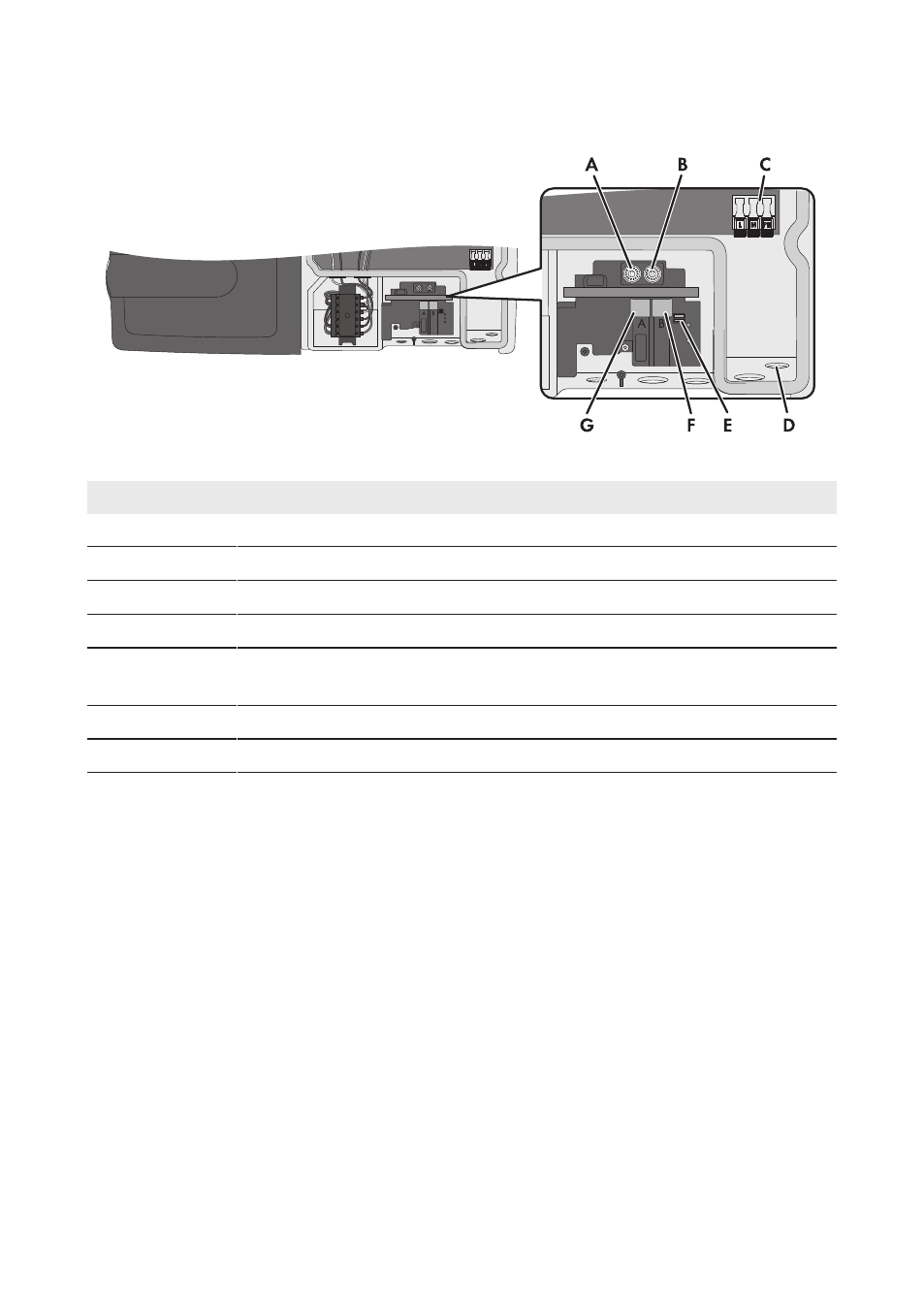

Figure 9: Connection areas in the interior of the inverter
Position
Designation
A
Rotary switch A for setting the country data set
B
Rotary switch B for setting the display language
C
Connecting terminal plate for the AC cable
D
Pressure equalizing membrane
E
Switch for temporarily changing the display language to English (for service
purposes)
F
Network port B
G
Network port A
6.2 AC Connection
6.2.1
Requirements for the AC Connection
Cable requirements:
☐ External diameter: 12 mm to 21 mm
☐ Maximum conductor cross-section: 10 mm²
☐ Insulation stripping length: 18 mm
☐ The cable must be dimensioned in accordance with the local and national directives for the
dimensioning of cables. The requirements for the minimum wire size derive from these
directives. Examples of factors influencing cable dimensioning are: nominal AC current, type of
cable, routing method, cable bundling, ambient temperature and maximum desired line losses
(for calculation of line losses, see design software Sunny Design from software version 2.0 at
6 Electrical Connection
SMA Solar Technology AG
Operating Manual
SB36-50SE-BE-en-11
28
