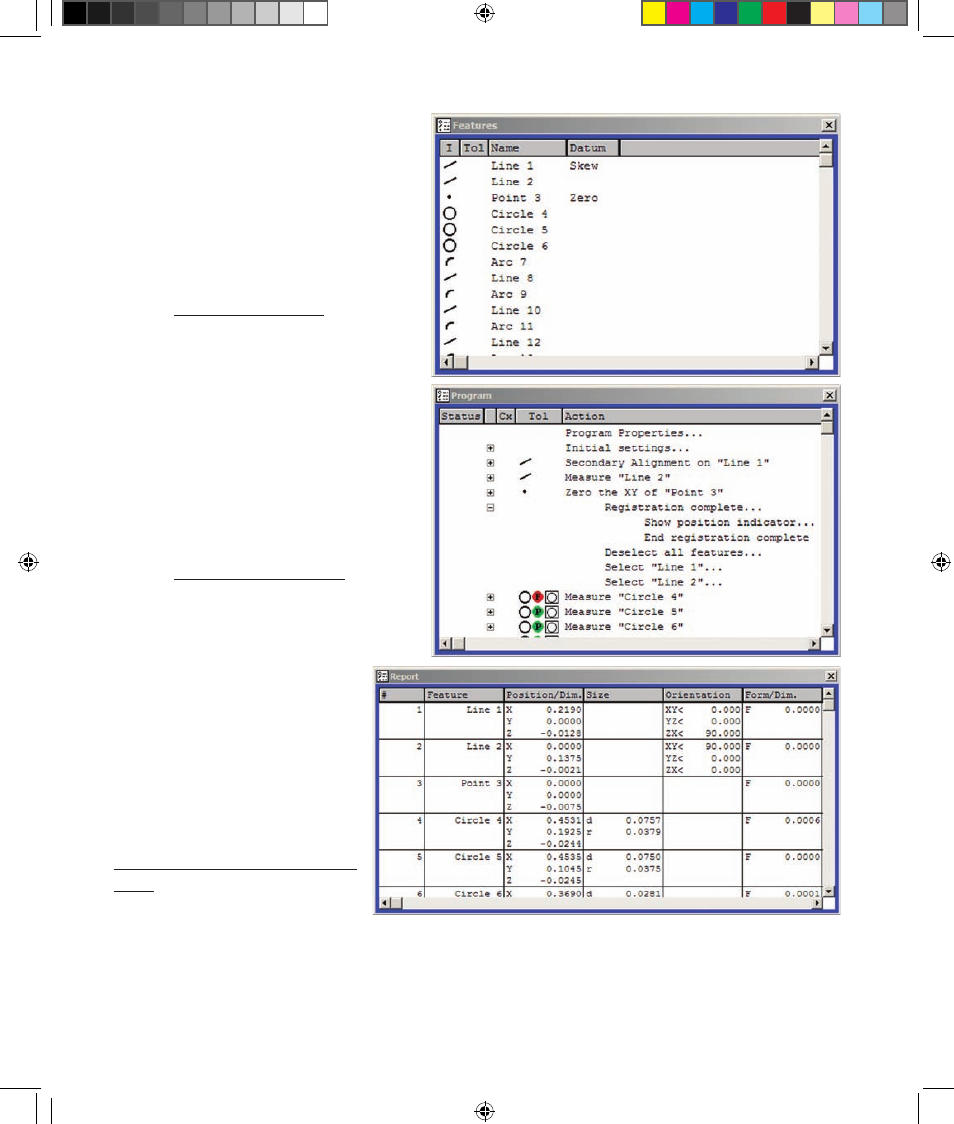

Features template
The Features template displays dimensional
data for all measured, created or constructed
features. Default columns include the
feature icon, tolerance, feature name and
datum.
Use of the Features template is described in
detail in Chapter 5: Measuring.
Program template
The Program template displays a list of pro-
gram steps with information that includes
program status, tolerances, current step, ac-
tions to be performed and the program data
such as loop executions completed.
Use of the program template is described in
detail in Chapter 8: Programming.
Report template
The Report template displays a
tabular summary of feature data
intended as the basis of printed re-
ports of measurement results.
Use of the report template is de-
scribed in detail in
Chapter 7: Reporting and Tem-
plates.
