158 QC5200 Series User’s Guide

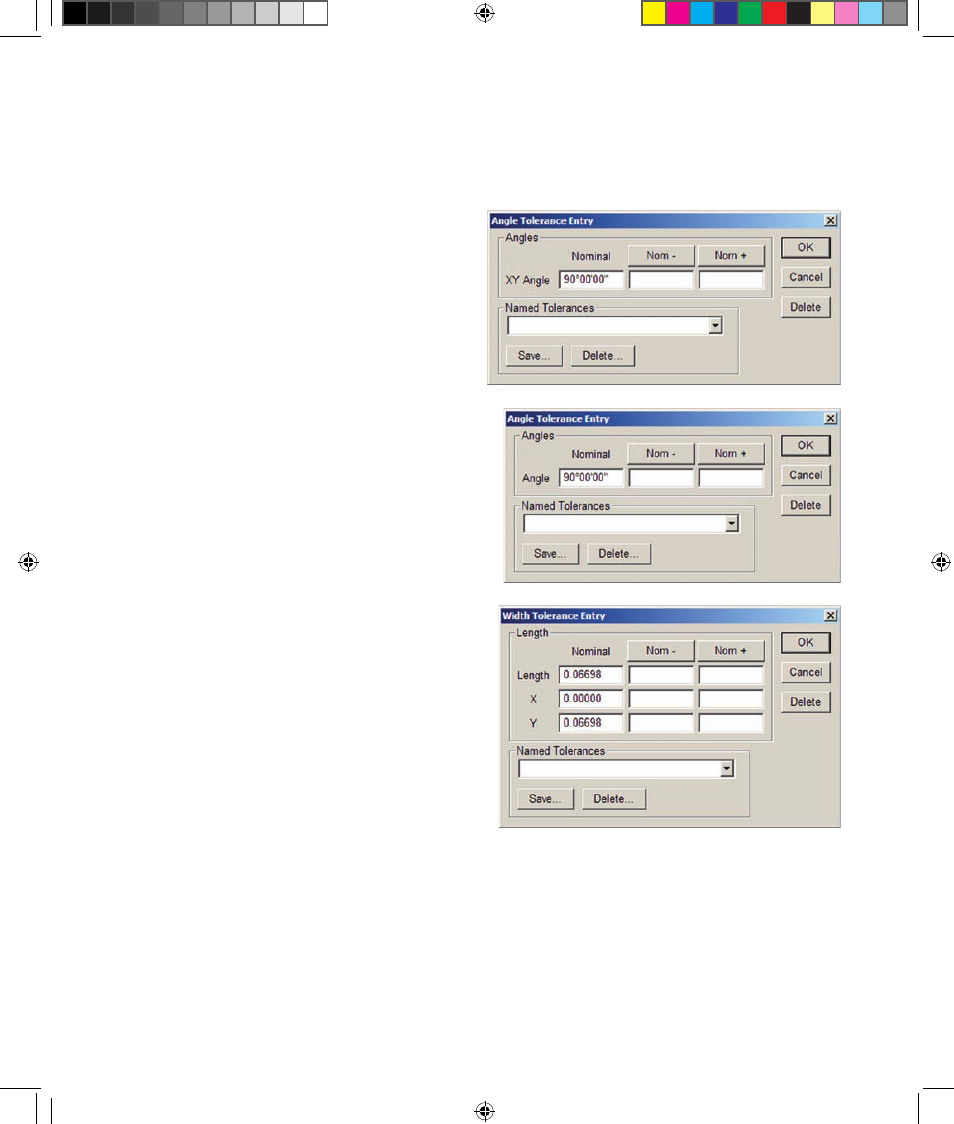

Angle
Angle tolerances can be applied to lines and angles. The tolerance entry screens are identical, and are used
to specify the acceptable deviation from a nominal angle.
Lines
The tolerance entry screen is used to specify the
acceptable deviation from a nominal angle made
between the line feature and the part skew line.
Enter the Nominal angle, the acceptable Nom - and
Nom + angle deviation values and then click OK.
Angles
The tolerance entry screen is used to specify the ac-
ceptable deviation from a nominal angle.
Enter the Nominal angle, the acceptable Nom - and
Nom + angle deviation values and then click OK.
Width
Width tolerances can be applied to distances and are
used to specify the acceptable deviation from a nomi-
nal length. The length can be specified as a vector
length or as separate X and Y lengths.
Enter the Nominal Length, the acceptable Nom - and
Nom + Length deviation values or enter Nominal X/
Y, Nom ±X and Nom ±Y values and then click OK.
