Programming
Auto programming measurement steps
The Auto program function can be used to create feature measurement
program steps for any features contained in the Features template.
The Auto program function will create program steps for features that
have been probed or imported. To use the Auto program function to
create program steps:
1 Highlight the desired features in the Features template.
NOTE
Do not highlight the first few features that were
measured when the measurement reference was
created.

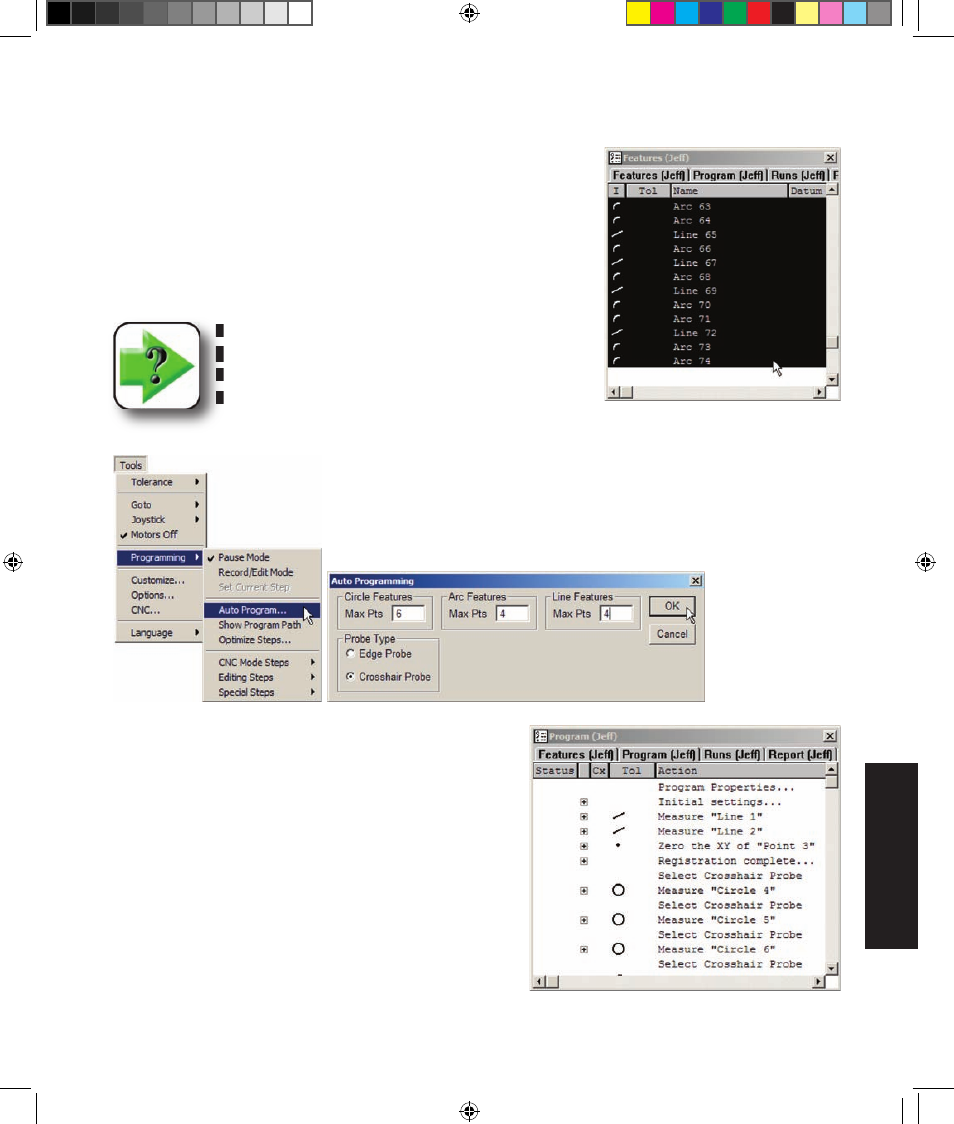

2 Click the Tools/Programming/Auto program menu item.
The Auto programming dialog box will be displayed.
3 Enter the desired number of probed points for the
circle, arc and line features, and then specify the probe
type by clicking a Probe Type radio button. Click OK to
create program steps for the highlighted features. The new
program steps will be shown in the Program template.
Features highlighted in the
Features template
New program steps for highlighted features
Creating Programs
