User Interface

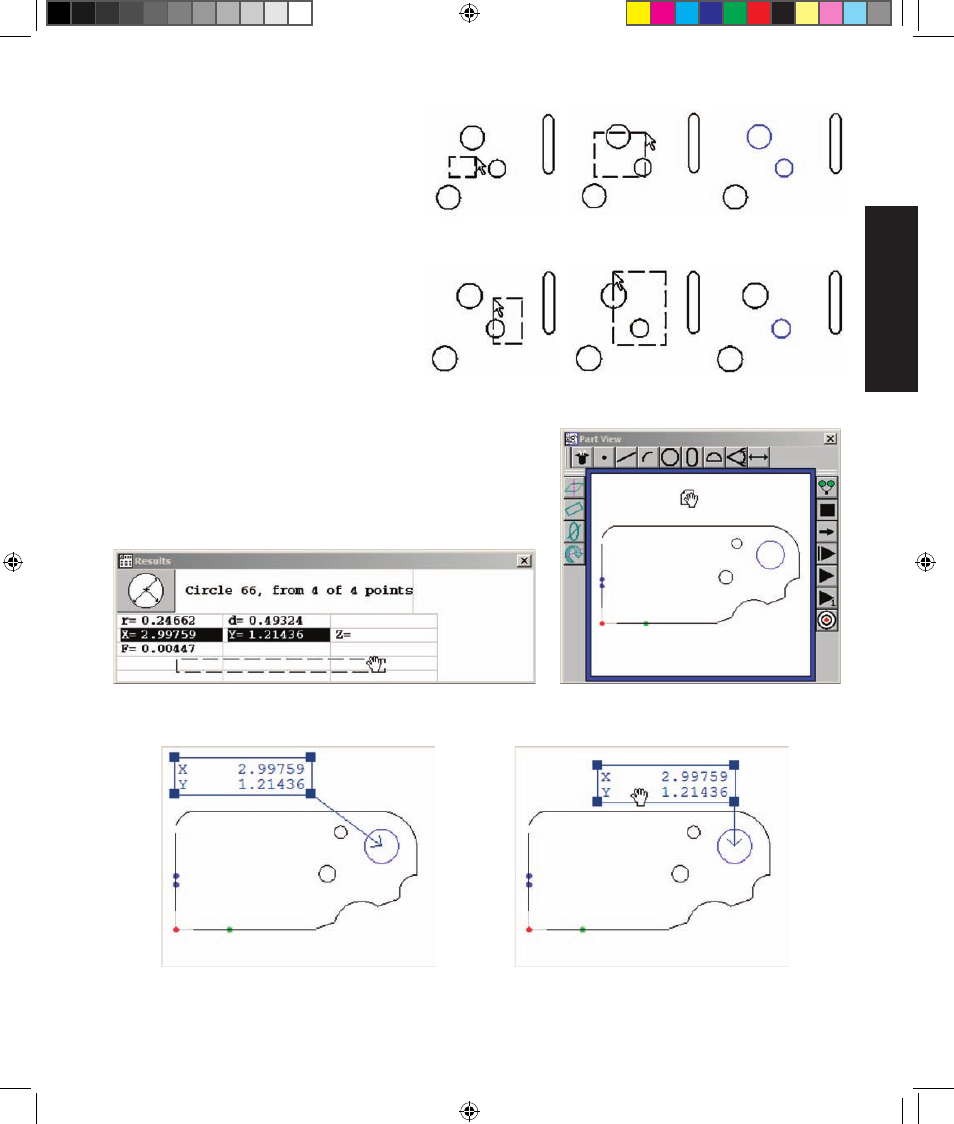

When the marquee is dragged across fea-
tures from left to right, all features touched
by the marquee are selected.
When the marquee is dragged across
features from right to left, only features
completely enclosed by the marquee are
selected.
Adding feature data
Feature data can be added to the Part View window by clicking
and dragging the desired data for a selected feature from the
Results window to the Part View window.
QC5200 Windows
Dragging the marquee from left to right selects all features
touched by the marguee
Dragging the marquee from right to left selects only features
completely enclosed by the marguee
Data for the selected feature is clicked and dragged... into the Part View window
The feature data can then be... clicked and dragged to the desired position
