68 Introduction
2.4 St
at
us disp
la
ys

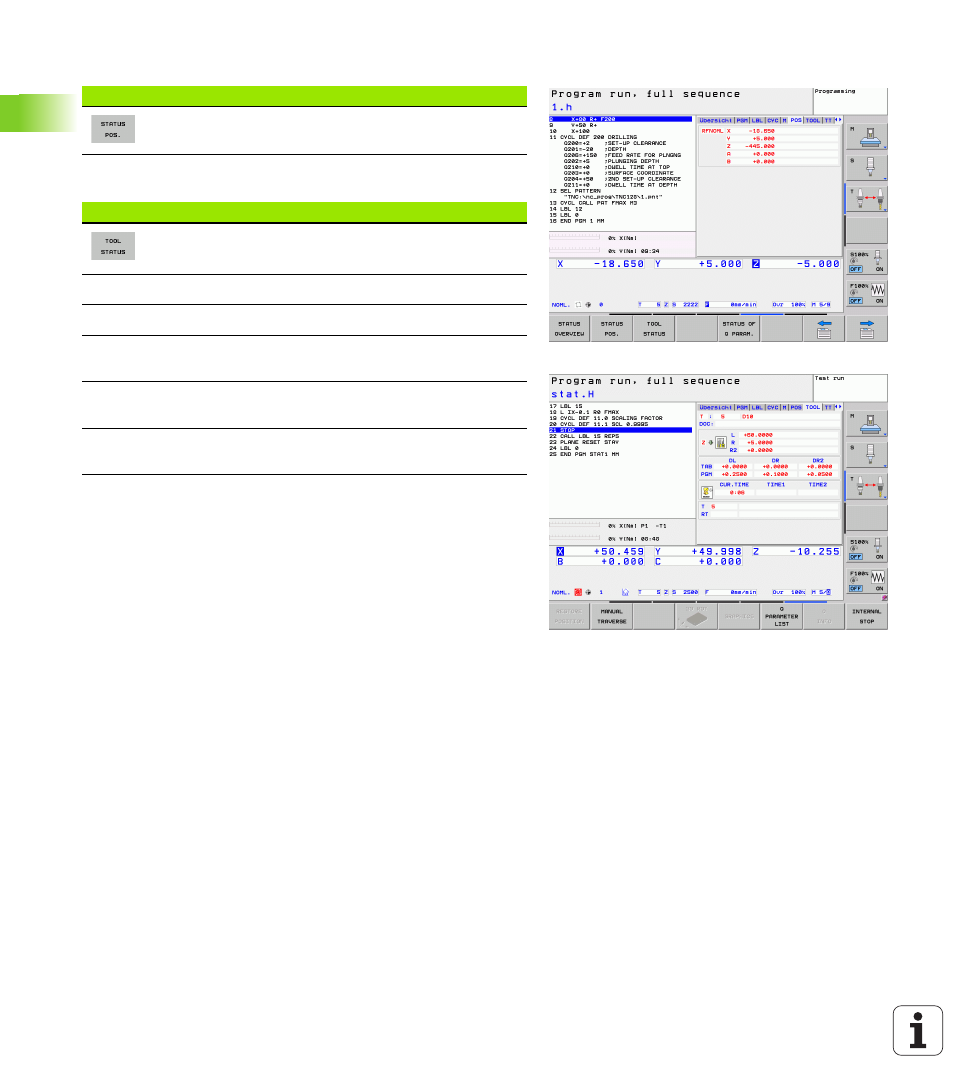

Positions and coordinates (POS tab)
Information on tools (TOOL tab)
Soft key Meaning
Type of position display, e.g. actual position
Soft key Meaning
 T: Tool number and name
 RT: Number and name of a replacement tool
Tool axis
Tool length and radii
Oversizes (delta values) from the tool table (TAB) and
the TOOL CALL (PGM)
Tool life, maximum tool life (TIME 1) and maximum
tool life for TOOL CALL (TIME 2)
Display of the active tool and the (next) replacement
tool
