392 Drilling, boring and thread cycles
16.4 REAMING (Cy
c
le 20
1)

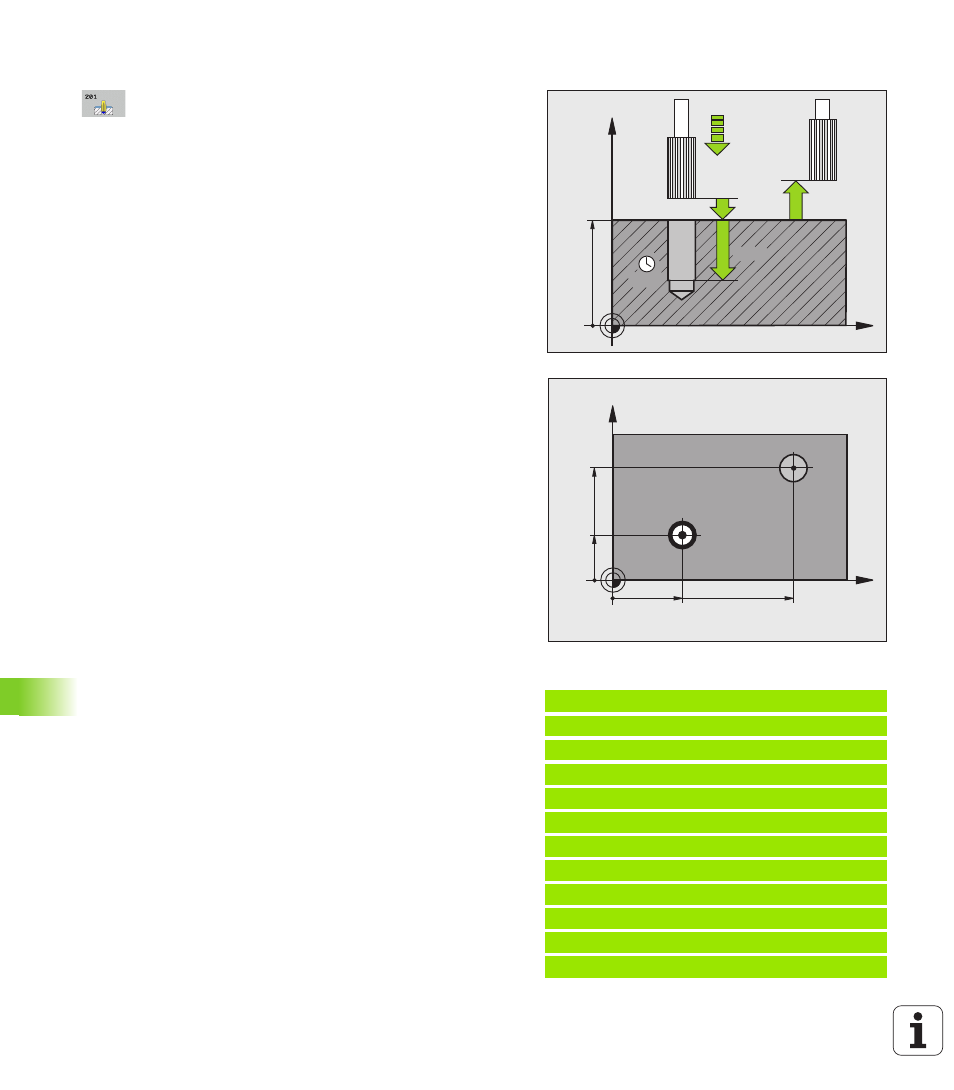

Cycle parameters
 Set-up clearance Q200 (incremental): Distance
between tool tip and workpiece surface. Input range
0 to 99999.9999
 Depth Q201 (incremental): Distance between
workpiece surface and bottom of hole. Input range
-99999.9999 to 99999.9999
 Feed rate for plunging Q206: Traversing speed of
the tool during reaming in mm/min. Input range 0 to
99999.999; alternatively FAUTO, FU
 Dwell time at depth Q211: Time in seconds that the
tool remains at the hole bottom. Input range 0 to
3600.0000
 Retraction feed rate Q208: Traversing speed of the
tool in mm/min when retracting from the hole. If you
enter Q208 = 0, the tool retracts at the reaming feed
rate. Input range 0 to 99999.999
 Coordinate of workpiece surface Q203 (absolute):
Coordinate of the workpiece surface. Input range 0
to 99999.9999
 2nd set-up clearance Q204 (incremental): Coordinate
in the spindle axis at which no collision between tool
and workpiece (fixtures) can occur. Input range 0 to
99999.9999
Example: NC blocks
11 CYCL DEF 201 REAMING
Q200=2 ;SET-UP CLEARANCE
Q201=-15 ;DEPTH
Q206=100 ;FEED RATE FOR PLNGNG
Q211=0.5 ;DWELL TIME AT DEPTH
Q208=250 ;RETRACTION FEED RATE
Q203=+20 ;SURFACE COORDINATE
Q204=100 ;2ND SET-UP CLEARANCE
12 X+30 FMAX
13 Y+20 FMAX M3 M99
14 X+80 FMAX
15 Y+50 FMAX M99
X
Z
Q200
Q201
Q206
Q211
Q203
Q204
30
X
Y
20
80
50
