370 Fundamentals of cycles
15.4 P
A
T
T
ERN DEF pat
ter
n definition
Defining individual machining positions
 X coord. of machining position (absolute): Enter X
coordinate
 Y coord. of machining position (absolute): Enter Y
coordinate
 Coordinate of workpiece surface (absolute): Enter Z
coordinate at which machining is to begin
You can enter up to 9 machining positions. Confirm each
entry with the ENT key.
If you have defined a workpiece surface in Z not equal to
0, then this value is effective in addition to the workpiece
surface Q203 that you defined in the machining cycle.

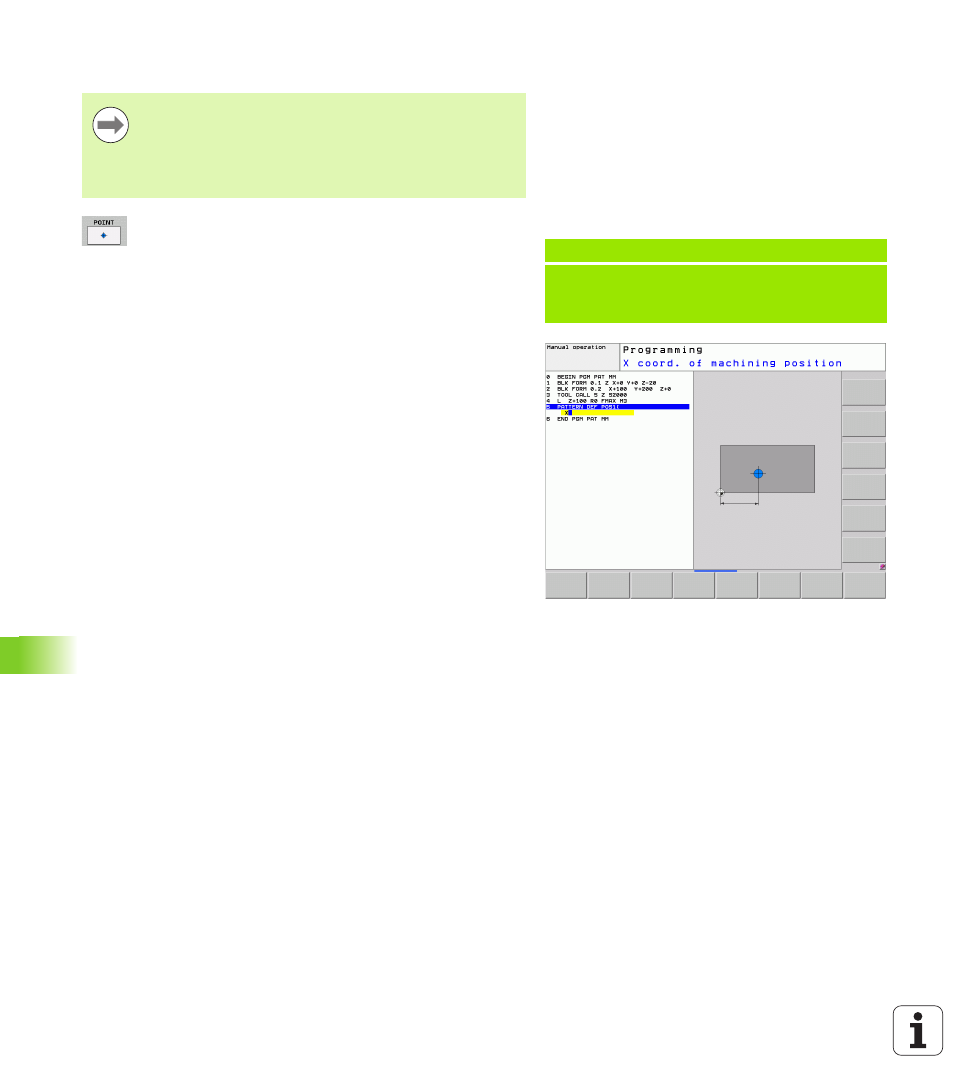

Example: NC blocks
10 Z+100 R0 FMAX
11 PATTERN DEF
POS1 (X+25 Y+33.5 Z+0)
POS2 (X+50 Y+75 Z+0)
