262 Programming: Special functions
1
0
.2 F
reely definable tables
Editing the table format

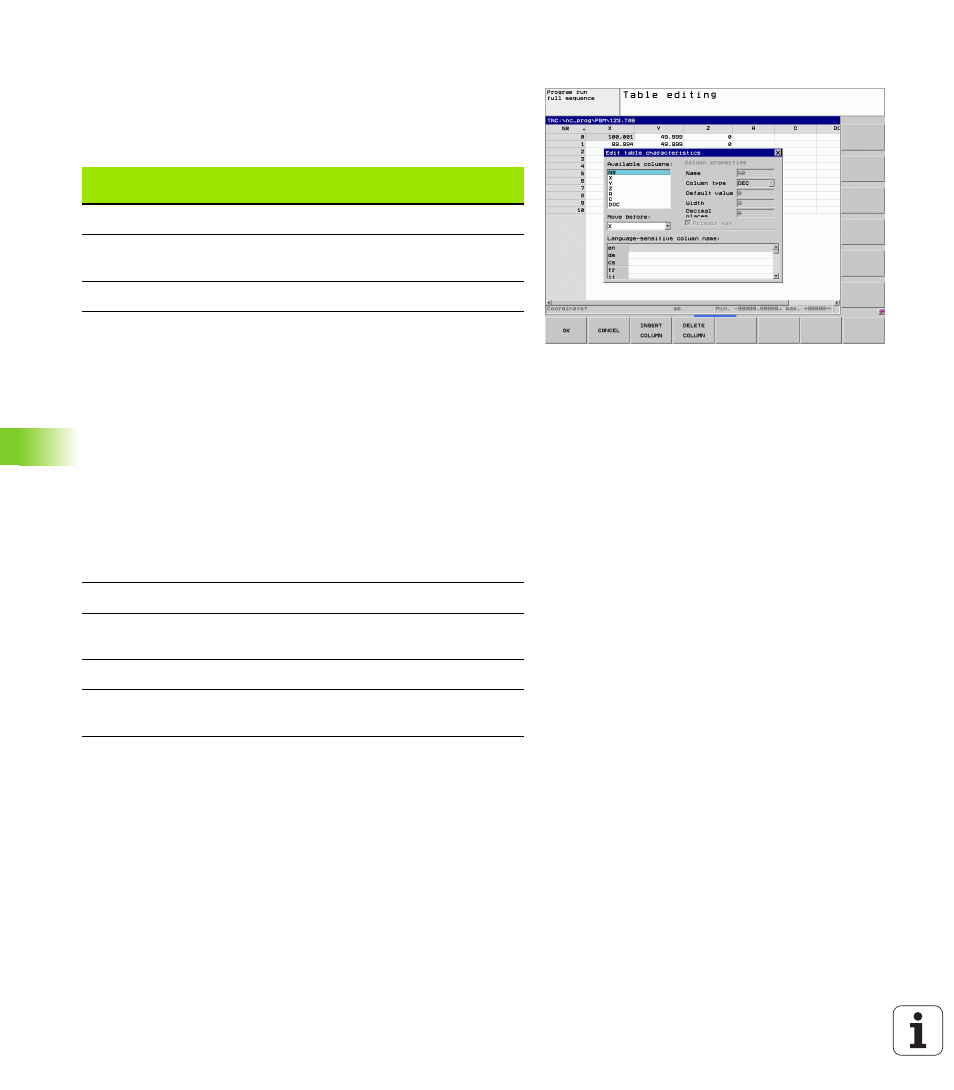

 Press the EDIT FORMAT soft key (2nd soft-key level): The TNC
opens the editor form, in which the table structure is shown. The
meanings of the structure commands (header entries) are shown in
the following table.
Structure
command
Meaning
Available columns: List of all columns contained in the table
Move before: The entry highlighted in Available
columns
is moved in front of this column
Name Column name: Is displayed in the header
Column type TEXT : Text input
SIGN : Algebraic sign + or –
BIN : Binary number
DEC : Decimal, positive, whole number
(cardinal number)
HEX
: Hexadecimal number
INT : Whole number
LENGTH : Length (is converted in inch
programs)
FEED
: Feed rate (mm/min or 0.1 ipm)
IFEED : Feed rate (mm/min or ipm)
FLOAT : Floating decimal point
BOOL : Logical value
INDEX : Index
TSTAMP : Permanently defined format for
date and time
Default value Default value for the fields in this column
Width Width of the column (number of
characters)
Primary key First table column
Language-sensitive
column name Language-sensitive dialogs
