HEIDENHAIN TNC 128 65
2.4 St
at
us disp
la
ys
Overview

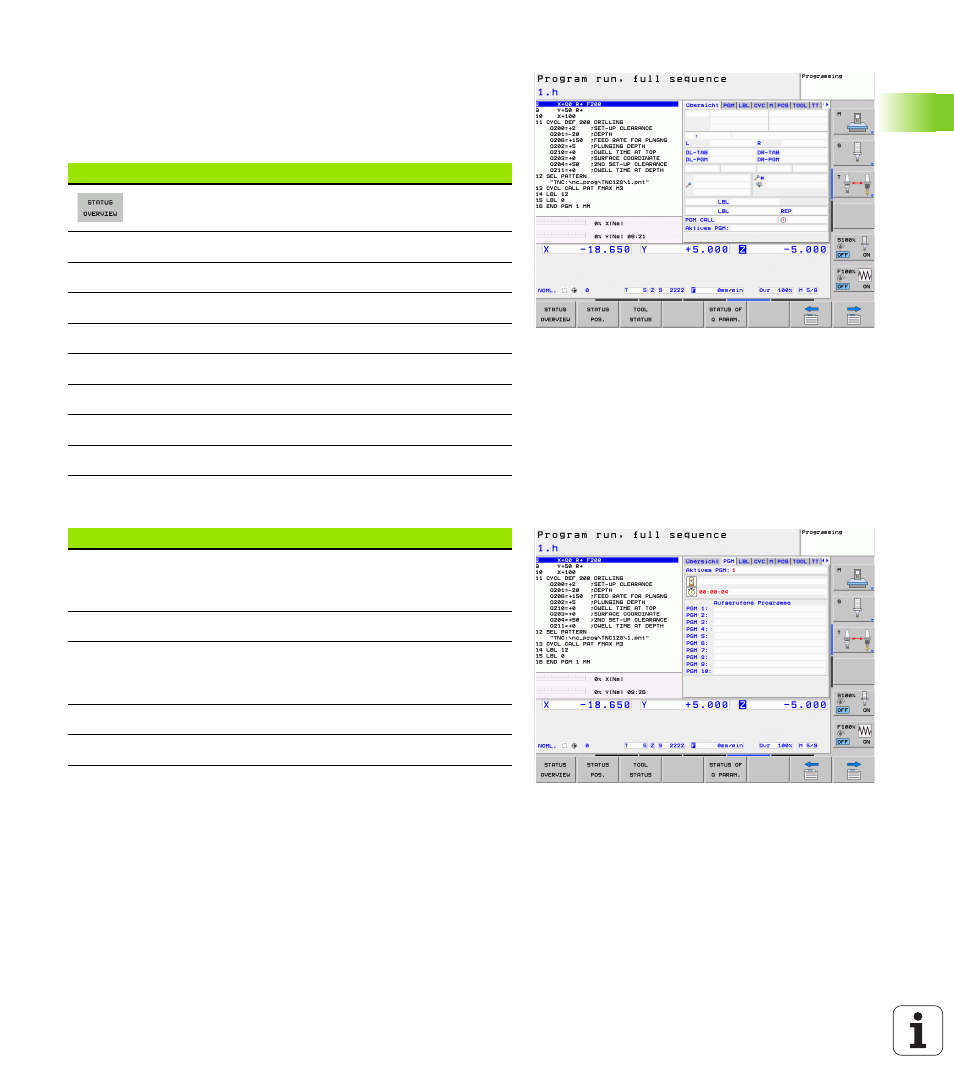

After switch-on, the TNC displays the Overview status form, provided
that you have selected the PROGRAM+STATUS screen layout (or
POSITION + STATUS). The overview form contains a summary of the
most important status information, which you can also find on the
various detail forms.
General program information (PGM tab)
Soft key Meaning
Position display
Tool information
Active M functions
Active coordinate transformations
Active subprogram
Active program section repeat
Program called with PGM CALL
Current machining time
Name of the active main program
Soft key Meaning
No direct
selection
possible Name of the active main program
Dwell time counter
Machining time when the program was
completely simulated in the Test Run operating
mode
Current time
Active programs
