Tool-Chek

TC200

3-23

Ports

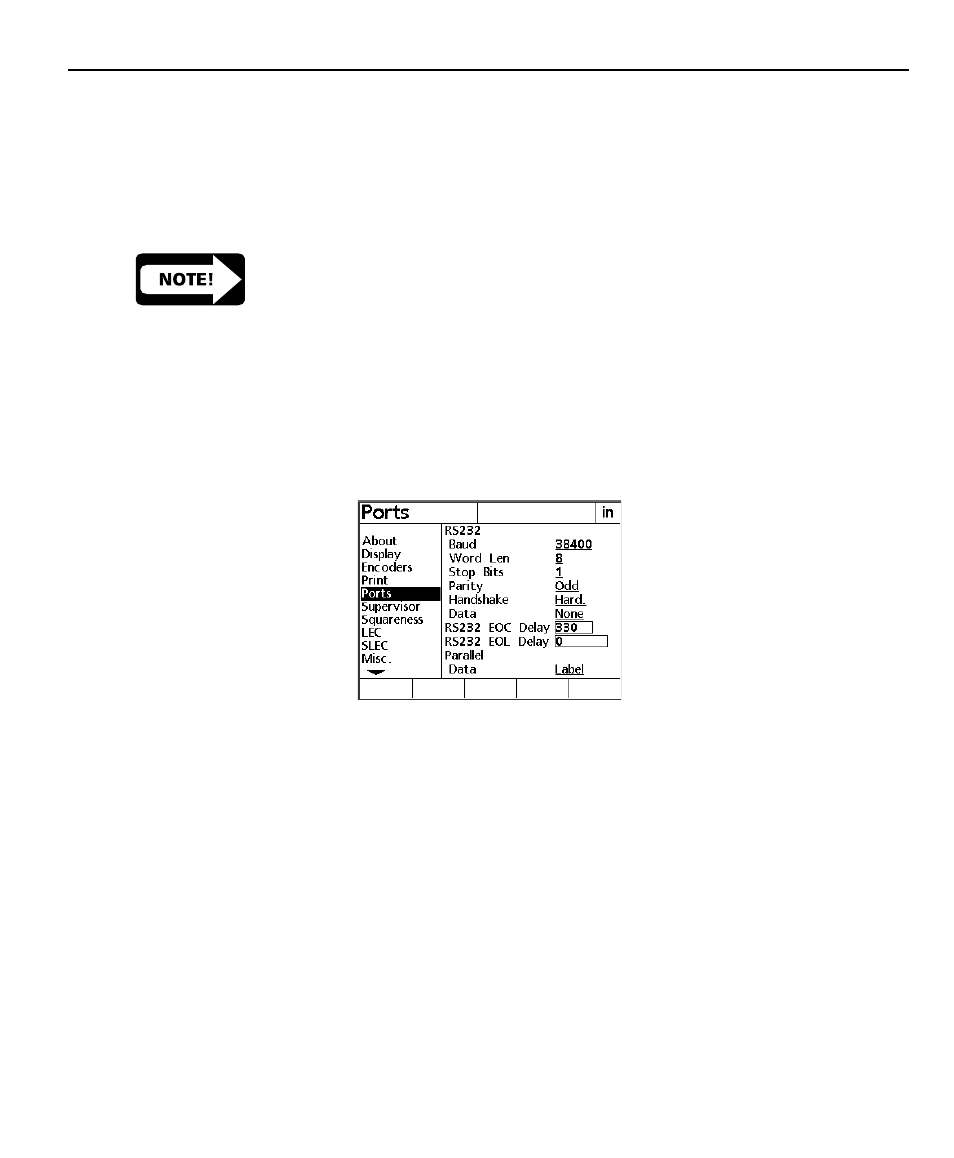

Serial (RS232) communications are configured on this screen. Par-
allel port protocols are standard and require no end-user setup.
In order to connect the TC200 to a serial printer setting on this
page must match the corresponding parameter of the printer.
Consult the printer information for its operating parameters.

NOTE

NOTE
Metronics attempts to support the widest variety of printers

Metronics attempts to support the widest variety of printers

Metronics attempts to support the widest variety of printers
available. Still, not every serial printer is compatible with the

available. Still, not every serial printer is compatible with the

available. Still, not every serial printer is compatible with the
TC200. Carefully check the ports setup for accuracy if the printer

TC200. Carefully check the ports setup for accuracy if the printer

TC200. Carefully check the ports setup for accuracy if the printer
fails to work. If all settings appear correct the printer may not

fails to work. If all settings appear correct the printer may not

fails to work. If all settings appear correct the printer may not
be compatible.

be compatible.

The print setup screen contains 9 supervisor level procedures. There
are no user level procedures on this setup screen. All fields re-
quire the supervisor password prior to access.

Supervisors can set baud rate (Baud), word length (Word Len),
stop bits, parity, handshake, data, parallel data protocols, end of
character delay (EOC Delay), and end of line delay (EOL Delay).
