Chapter 3 Setup
3-8

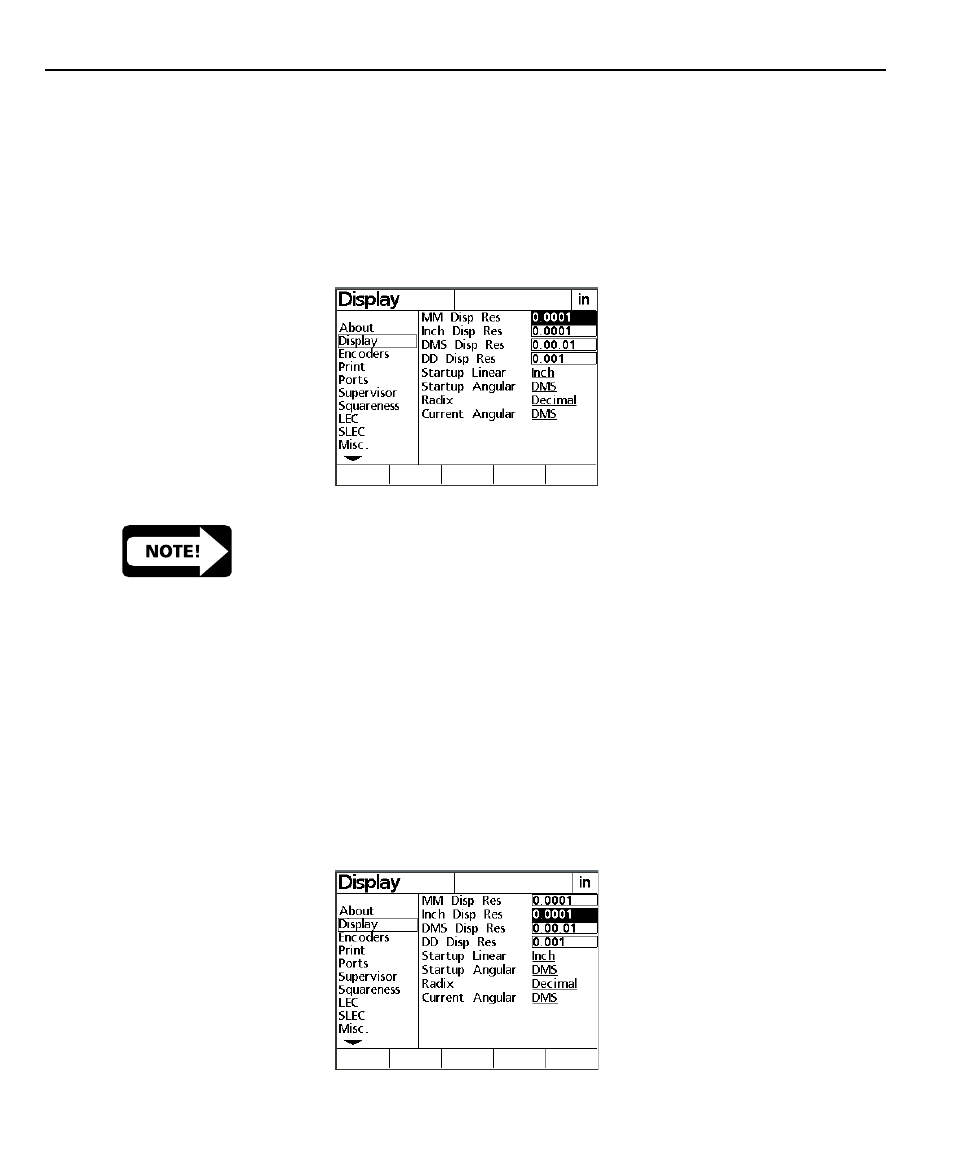

MM Disp Res
Defines the measurement resolution displayed on the TC200 for
linear information in mm (metric) mode. Any resolution at or
below the resolution of the encoder is a valid entry for this field.
Do not enter a resolution higher than the encoder resolution.
Consult the encoder product information to determine its resolu-
tion. This data entry field requires the supervisor password prior
to access.
NOTE NOTE NOTE NOTE NOTE
When inputting resolution remember that .0001mm is a higher
When inputting resolution remember that .0001mm is a higher When inputting resolution remember that .0001mm is a higher When inputting resolution remember that .0001mm is a higher When inputting resolution remember that .0001mm is a higher
resolution than .0002mm. Therefore, any entry less than
resolution than .0002mm. Therefore, any entry less than resolution than .0002mm. Therefore, any entry less than resolution than .0002mm. Therefore, any entry less than resolution than .0002mm. Therefore, any entry less than
.0002mm exceeds the resolution of an encoder with .0002mm
.0002mm exceeds the resolution of an encoder with .0002mm .0002mm exceeds the resolution of an encoder with .0002mm .0002mm exceeds the resolution of an encoder with .0002mm .0002mm exceeds the resolution of an encoder with .0002mm
resolution.
resolution. resolution. resolution. resolution.
Inch Disp Res
Defines the measurement resolution displayed on the TC200 for
linear information in inch (English) mode. Any resolution at or
below the resolution of the encoder is a valid entry for this field.
Do not enter a resolution higher than the encoder resolution.
Consult the encoder product information to determine its resolu-
tion. This data entry field requires the supervisor password prior
to access.
