Chapter 2

Operation

2-14

Step 8
The TC200 includes additional inputs for radius and angle for spe-
cialized cutting tools. For conventional milling procedures these
fields are left blank.

Step 9
Press the save softkey to save the tool. The TC200 displays the
tool just created.

Creating a tool sequence

The TC200 records user input and store it as a tool sequence. Tool
sequences can be saved for repeated use or modified for slightly
different tasks. For more on modifying tool sequences see Chap-
ter 3: operation.

NOTE

NOTE
While recording a tool sequence, use the cancel key to return to

While recording a tool sequence, use the cancel key to return to

While recording a tool sequence, use the cancel key to return to
a previously recorded tool. Pressing cancel once brings up the

a previously recorded tool. Pressing cancel once brings up the

a previously recorded tool. Pressing cancel once brings up the
previous tool; to go back three tools press cancel three times,

previous tool; to go back three tools press cancel three times,

previous tool; to go back three tools press cancel three times,
and so forth. T

and so forth. T

and so forth. Tools can also be re-measured after recording by

ools can also be re-measured after recording by

pressing the tool sequence key then using the up or down arrow

pressing the tool sequence key then using the up or down arrow
keys to select the desired tool and pressing finish.

keys to select the desired tool and pressing finish.

Step 1

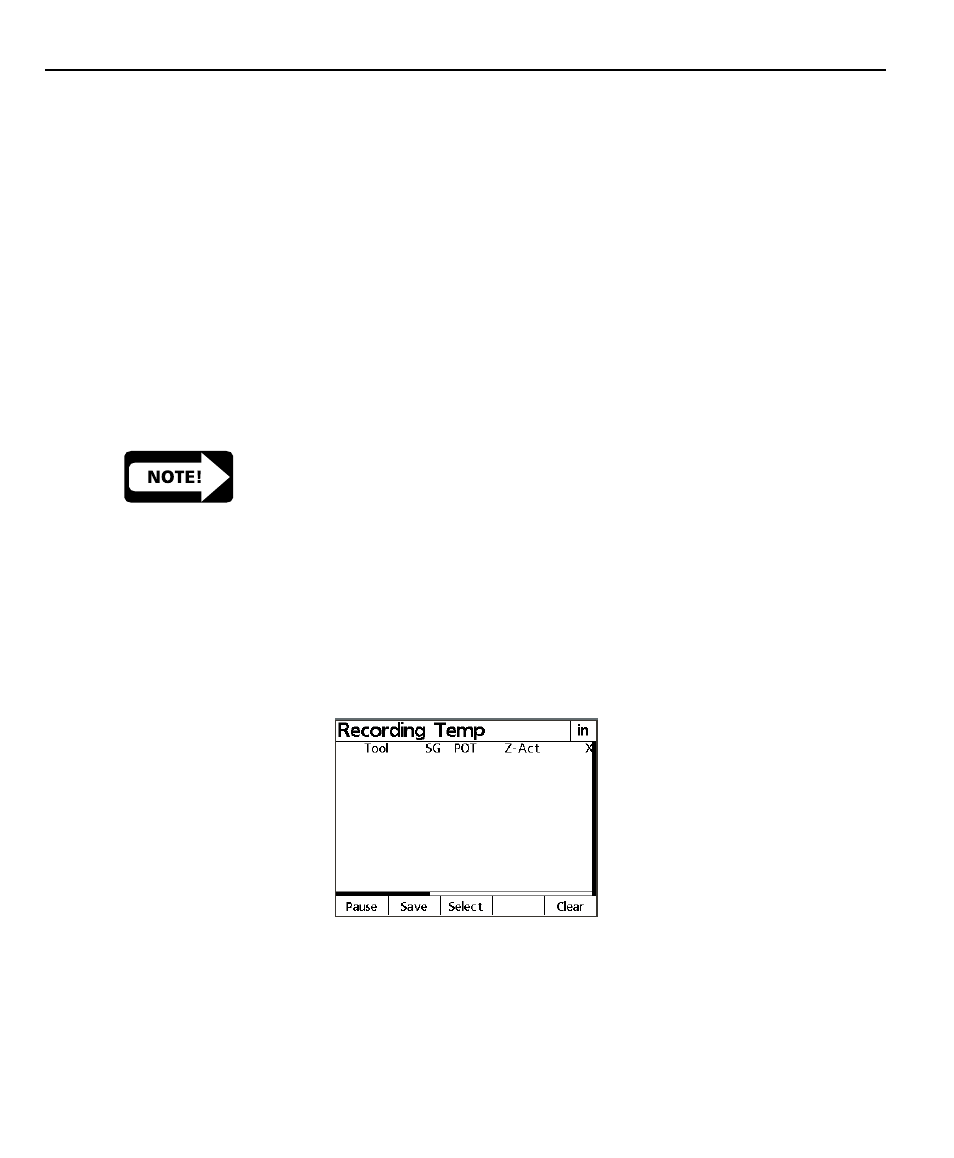

Press the tool sequence feature selection key. The LCD displays
the Recording Temp screen.
