67

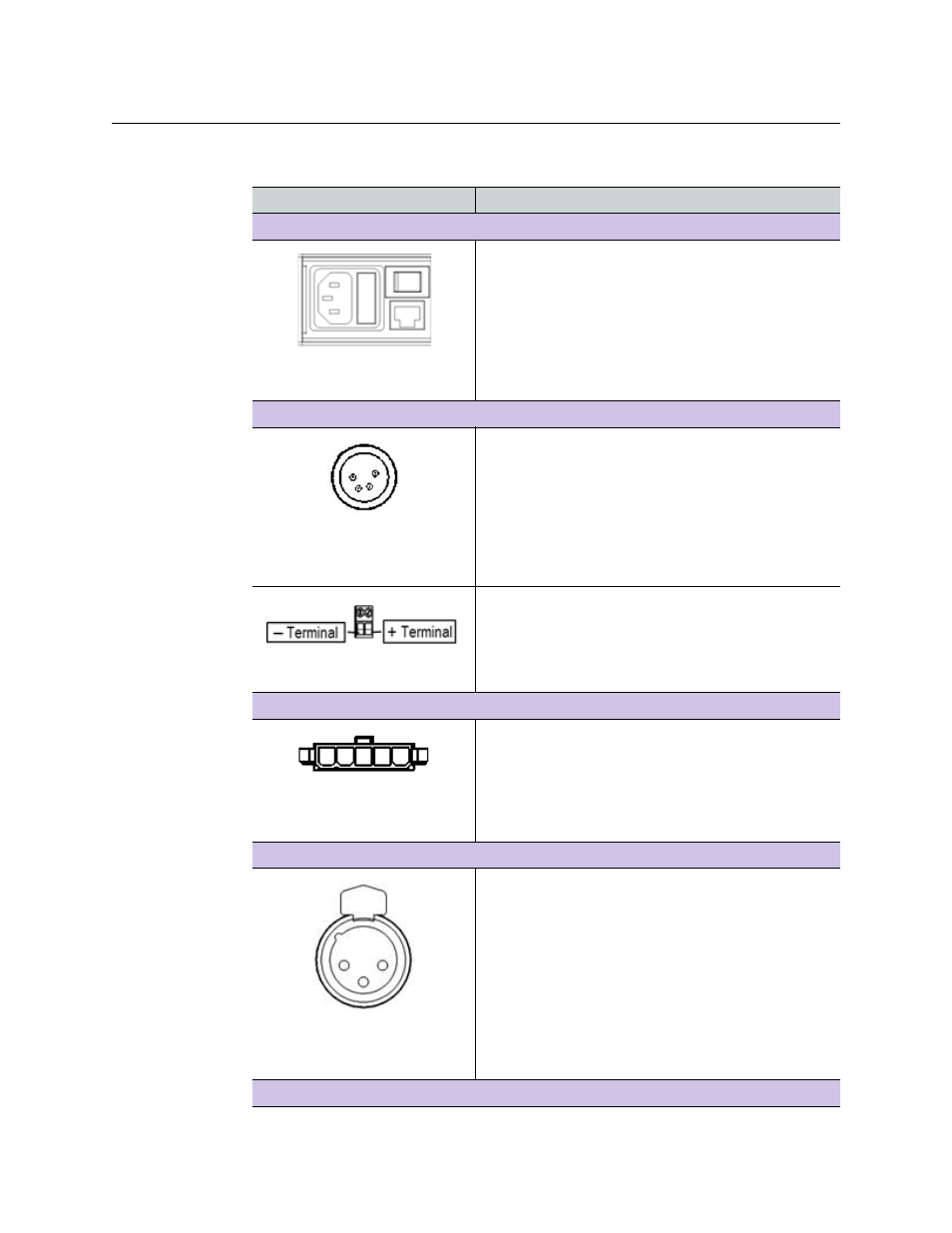

Base Station Connectors
Base Station Connectors
Item Description
AC Power Input Connector- Models CHG3-BS-3050-95VD-xxx-xxx
Base Station #1
Standard IEC C14 receptacle
Panel Mounted AC Power Receptacle: 110/220 VAC
Two 4 amp fuses (5 x 20mm). Fuses are in operation at
all times – both the AC Line Hot and the AC Line
Neutral are fused.
12VDC Input Power Connectors – Models CHG3-BS-3050-2ST/2MX/NEU
Base Station #20
XLR4 Male
• Pin 1: Ground
• Pin 2: Unused
• Pin 3: Unused
• Pin 4: + Power 12 VDC
This matching connector is from either an ADAP-AC-04
or a customer-supplied 12VDC power supply.
This connector is wired in parallel with terminal block
#21 (below).
Base Station #21
Terminal block
• Pin 1: Minus Voltage Terminal
• Pin 2: Plus Voltage Terminal
This connector is wired in parallel with XLR4 Male #20
(above).
95VDC output: Model CHG3-BS-3050-95VD-STM-xxx
Base Station #23
Mating connector:
Molex 39-01-4051
• Pin 1: 95VDC + OUT (White*)
• Pin 2: 95VDC + OUT (Black*)
• Pin 5: Ground (Green)
*Tied together at terminal lug end
Clear-Com Intercom
Base Station #16 & 17
XLR3 Female (x2)
• Pin 1: Ground
• Pin 2: +VDC Power
• Pin 3: Power
RTS Intercom
