13
CopperHead 3050
User Guide
Area A - Connector Panel

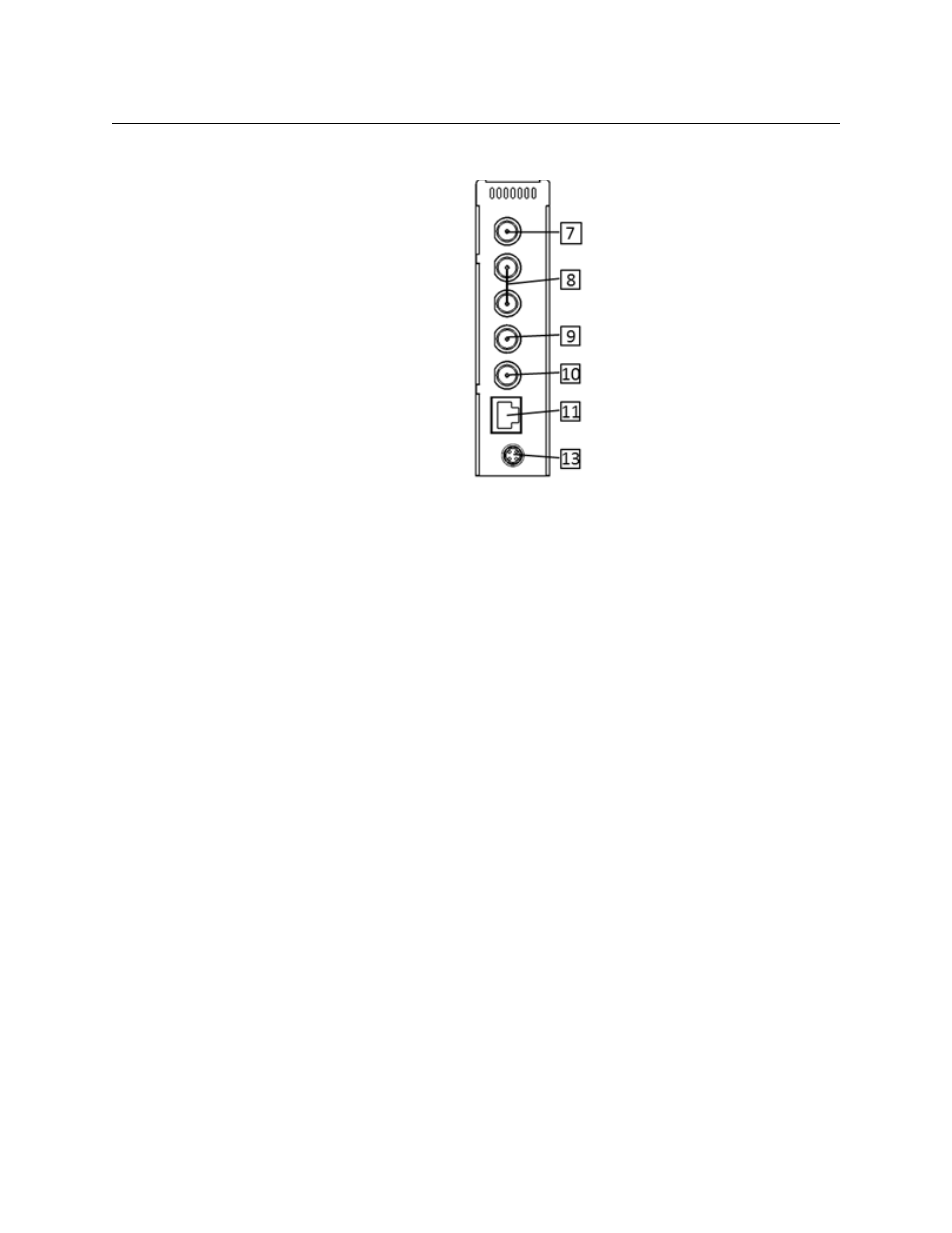

Fig. 3-2: Camera Rear Connector Panl
• 7: SD-HD/SDI In (to Base Station)
• 8: SD-HD/SDI Digital Video Outputs A & B (from Base Station)
• 9: VBS In (to Base Station) VBS signal paths typically carry analog video
• 10: VBS Out (from Base Station)
• 11: Ethernet (100Mbs)
• 13: Power Wafer Connector
For additional information about the signals carried on these connectors, see Area D - Fiber
Connector on page 15.
Throughout this document component Key Numbers are coordinated with the overall
system diagrams found in
Diagrams on page 82.
