Page 23
17
CopperHead 3050
User Guide
CopperHead 3050 Camera Unit Front Side

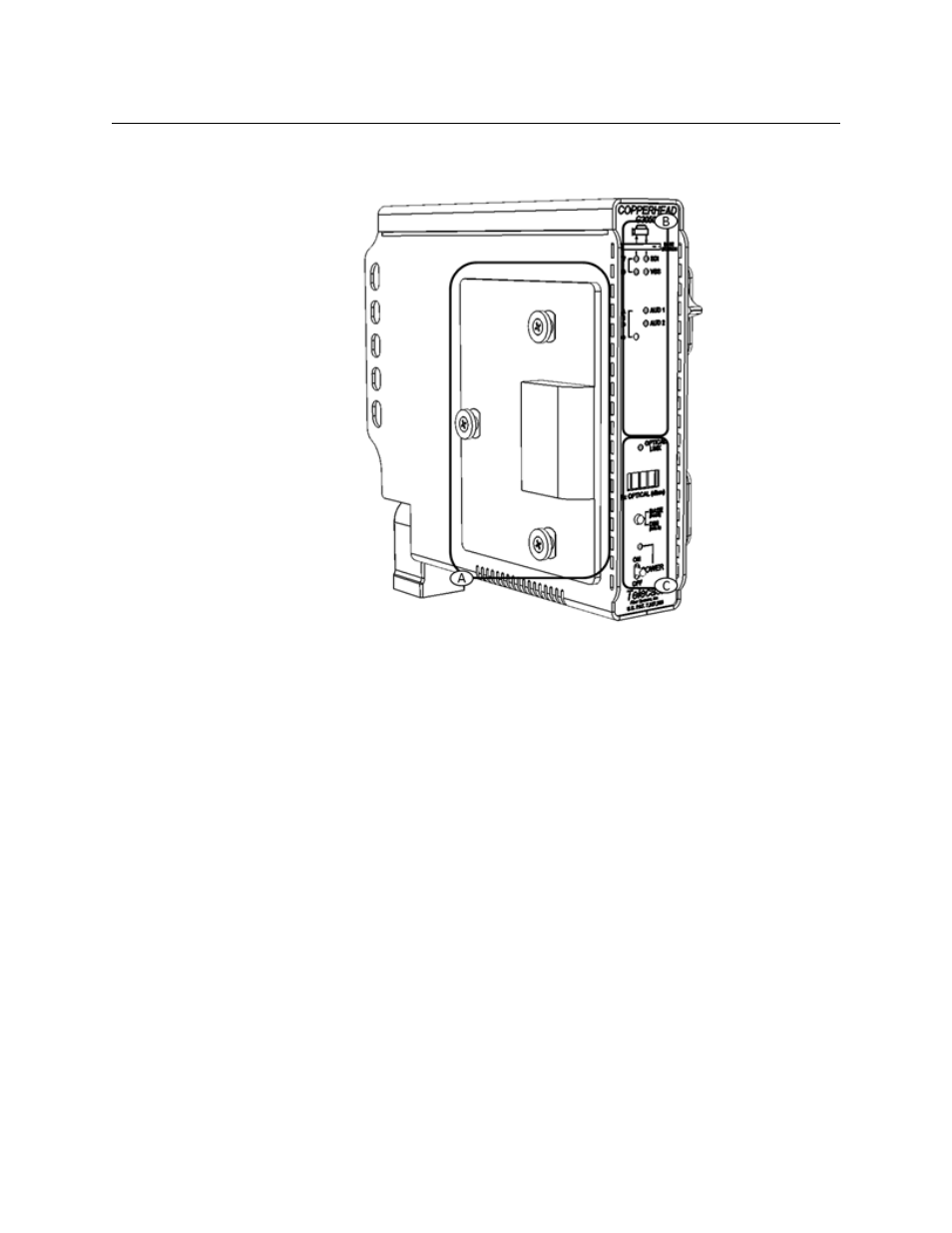

Fig. 3-7: CopperHead 3050 Camera Unit Front Side
The front side of the Camera Unit has three areas of interest:
• A - Camera Mounting Plate (see
Area A - Camera Mounting Plate
• B - Signal/Data LED Activity Indicators (see
Area B - Signal/Data Indicators
• C - Digital Status Display & Power Switch (see
