15
CopperHead 3050
User Guide
• 15 - Intercom Local/Remote
• LOCAL- Switch 18 is enabled
• REMOTE- Remote Push-to-Talk Switch enabled
For information on the Audio/Intercom Connector Panel operation, see Set Up of the
CopperHead 3050 Transceiver System for operation on page 48.
Area D - Fiber Connector
The CopperHead 3050 Camera Unit is shipped with one of the three Fiber Connectors
shown in
Figure 3-5 .

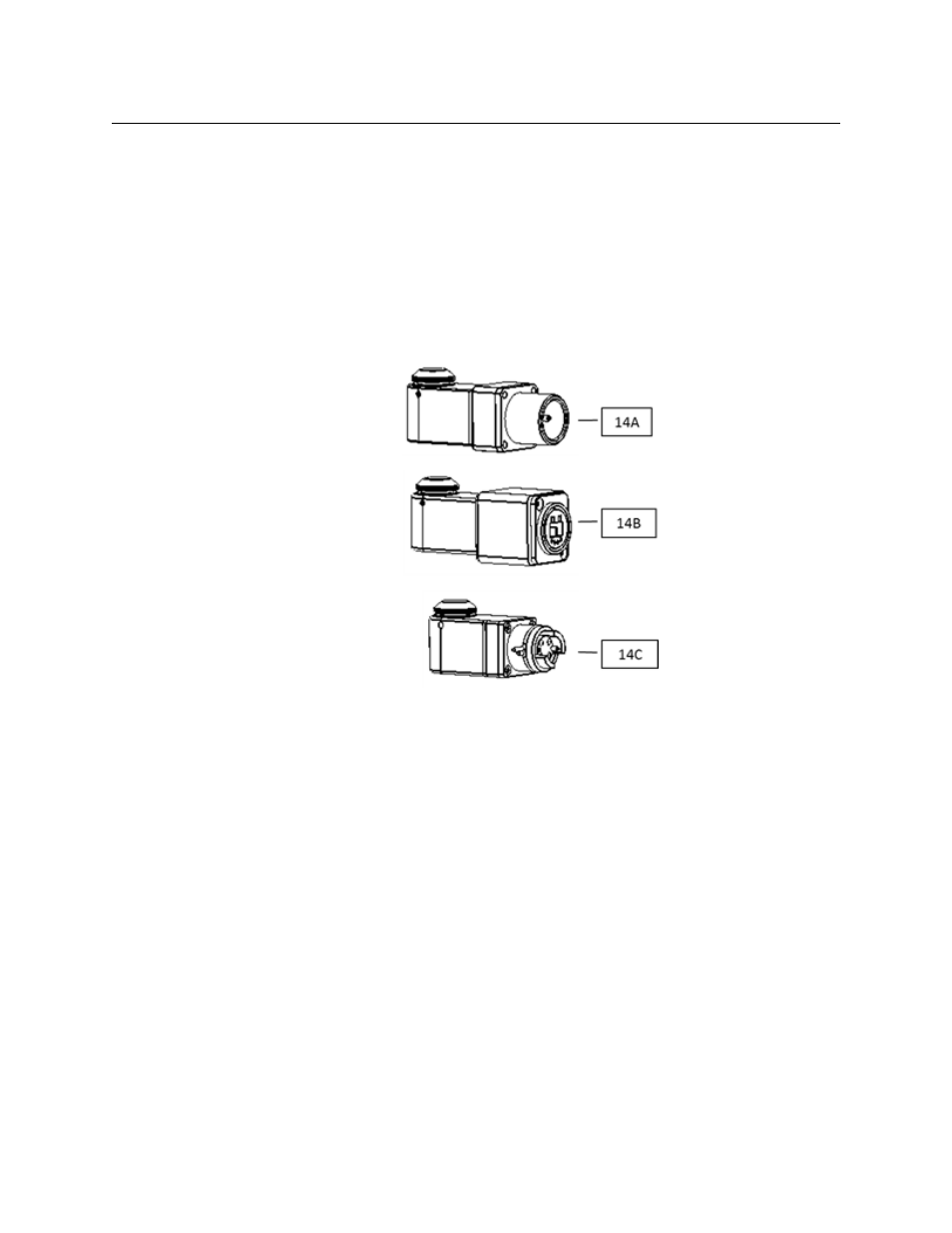

Fig. 3-5: Three types of Fiber Connectors
• 15A - SMPTE 304M, powered
• 15B - OpticalCON, powered or unpowered
• 15C - MX Expanded Beam, unpowered
