Detailed Description
CopperHead 3050 Camera Unit Front Side
Area A - Camera Mounting Plate
The CopperHead 3050 Camera Unit is shipped with a variety of Camera Mount to camera
types. The Anton Bauer mount and the Sony V-mount are the most common. PAG and
other battery mount systems are available by special order. Please contact Grass Valley
Technical Support (see
Contact Us on page 65) or your authorized dealer.

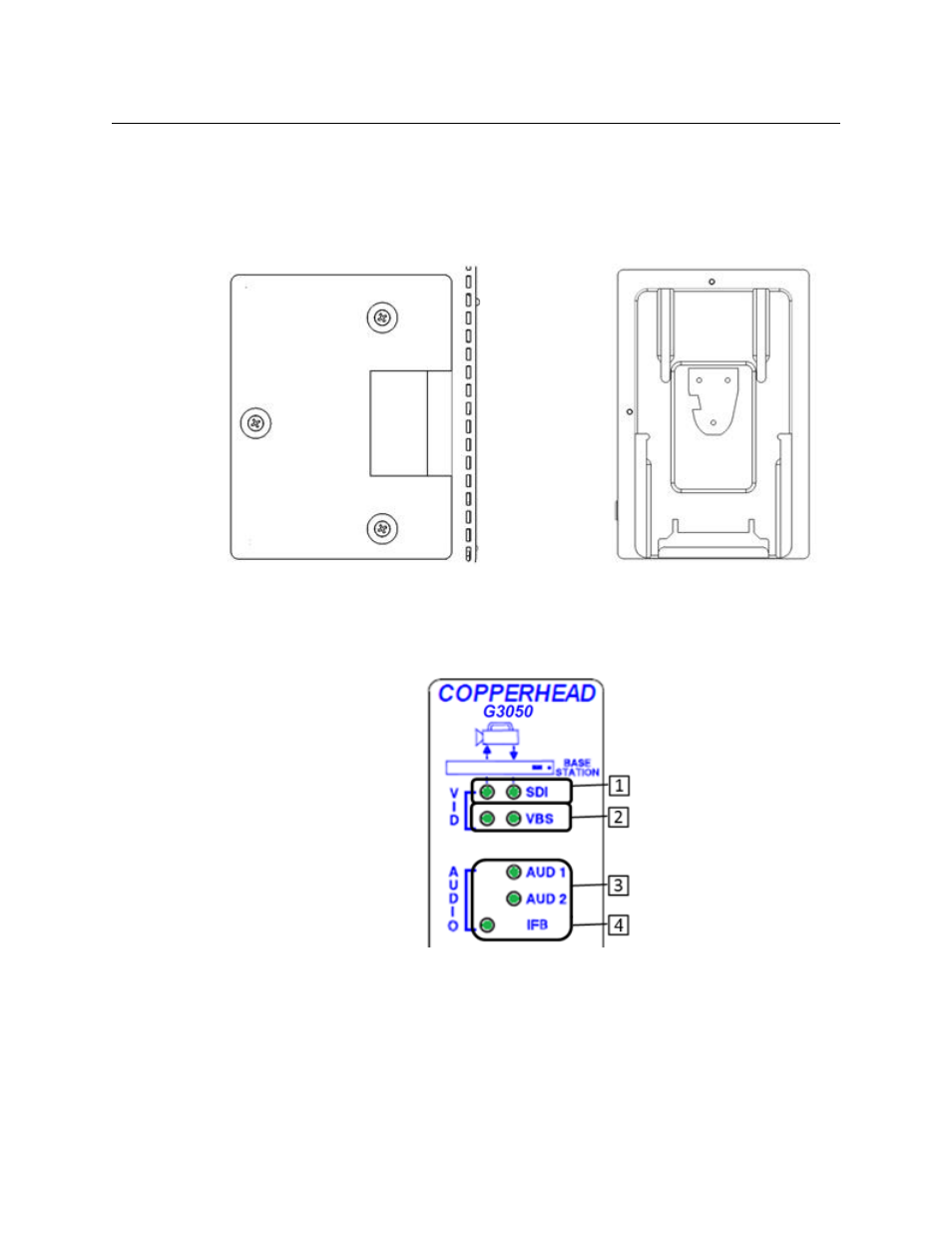

Fig. 3-8: CopperHead 3050 Transceiver System Camera Mount
Area B - Signal/Data Indicators
Fig. 3-9: CopperHead 3050 Transceiver System Camera Unit Indicator Panel
The CopperHead 3050 Transceiver System Camera Unit Indicator Panel has a series of LED
displays that monitor the various signal paths between the Camera Unit and the Base
Station.
• For signals remain constant, such as time code and video, the LED remains on as a
steady Green.
• For signals that fluctuate (such as audio), the LED will reflect the varying signal activity.
Anton-Bauer Camera Mount V-type Camera Mount
