Fiber Optic Connector Types
Depending on the type of Fiber Optic Cable used, different Connector types can be
configured. The following table summarizes the various types of connectors typically used
in a CopperHead 3050 Transceiver System Transceiver System configuration and the
allowed Fiber Optic Cable usage.

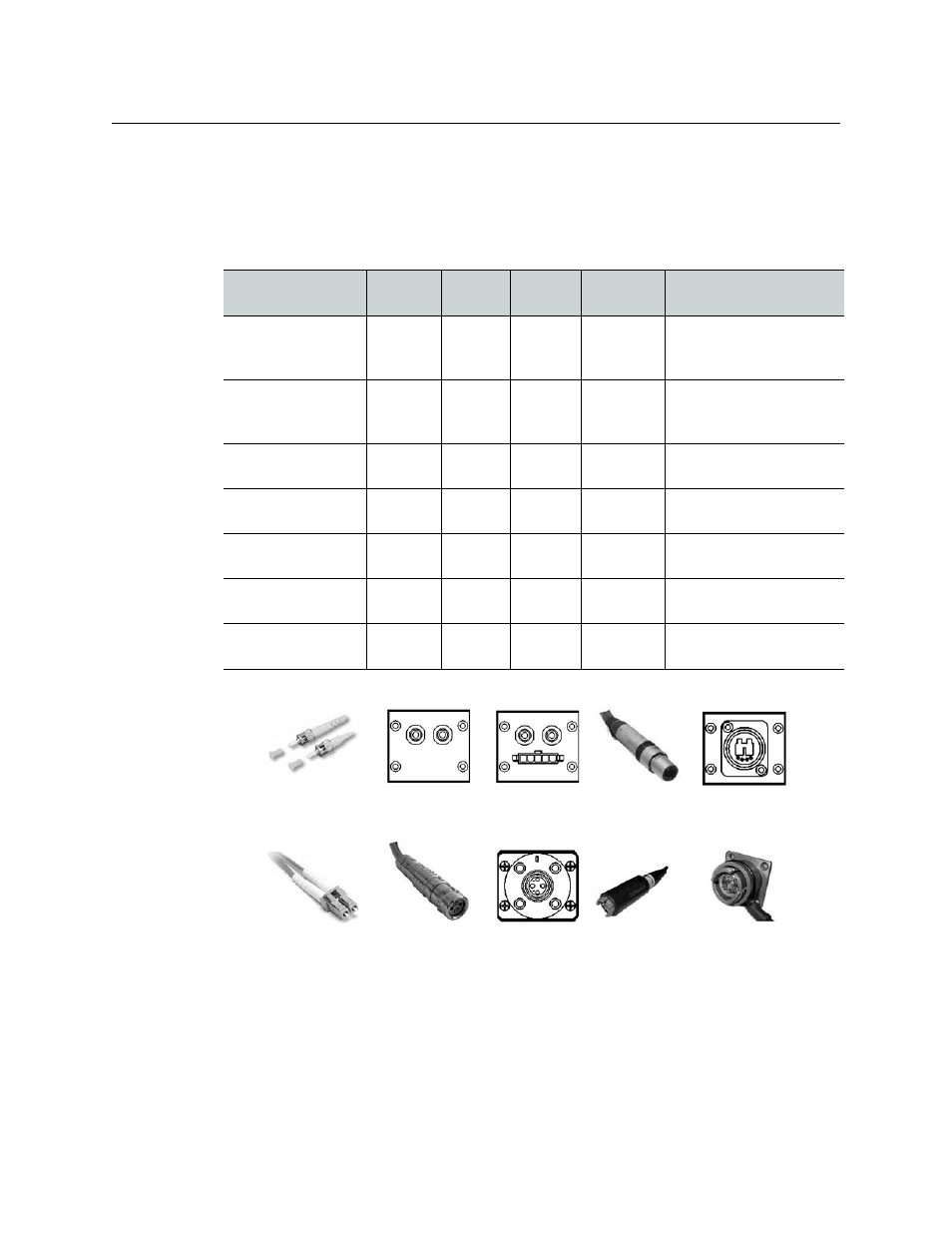

Fig. 2-3: Fiber Optic Connectors
Connector Type
Tactical
Fiber Use Hybrid
Fiber Use Camera
Unit Use Base Station
Use
Notes
ST Fiber Connectors Yes Not
Typically No Yes Less Expensive – not as
durable as OpticalCON,
SMPTE 304M or MX
ST Fiber Connectors
with Molex Power
Plug No Not
Typically No Yes Used with separate Fiber
and Power cables
LC Connectors No No No No Infrastructure and Internal
Equipment Use
SMPTE 304M No Yes (up
to 95V) Yes Yes
OpticalCON Cable
Connector (Neutrik) Yes Yes Yes Yes
OpticalCON Panel
Connector (Neutrik) Yes Yes No No Infrastructure Use Only
MX Expanded Beam
Connector Yes No Yes Yes
ST Cable
Connectors
ST Panel
Connectors
ST Panel w/
Molex
OpticalCON
Cable
OpticalCON
Panel
LC Connectors SMPTE 304M
Cable
SMPTE 304M
Panel
MX Expanded
Beam Cable
MX Expanded
Beam Panel
