CopperHead 3050 Transceiver System Components
CopperHead 3050 Camera Unit Overview

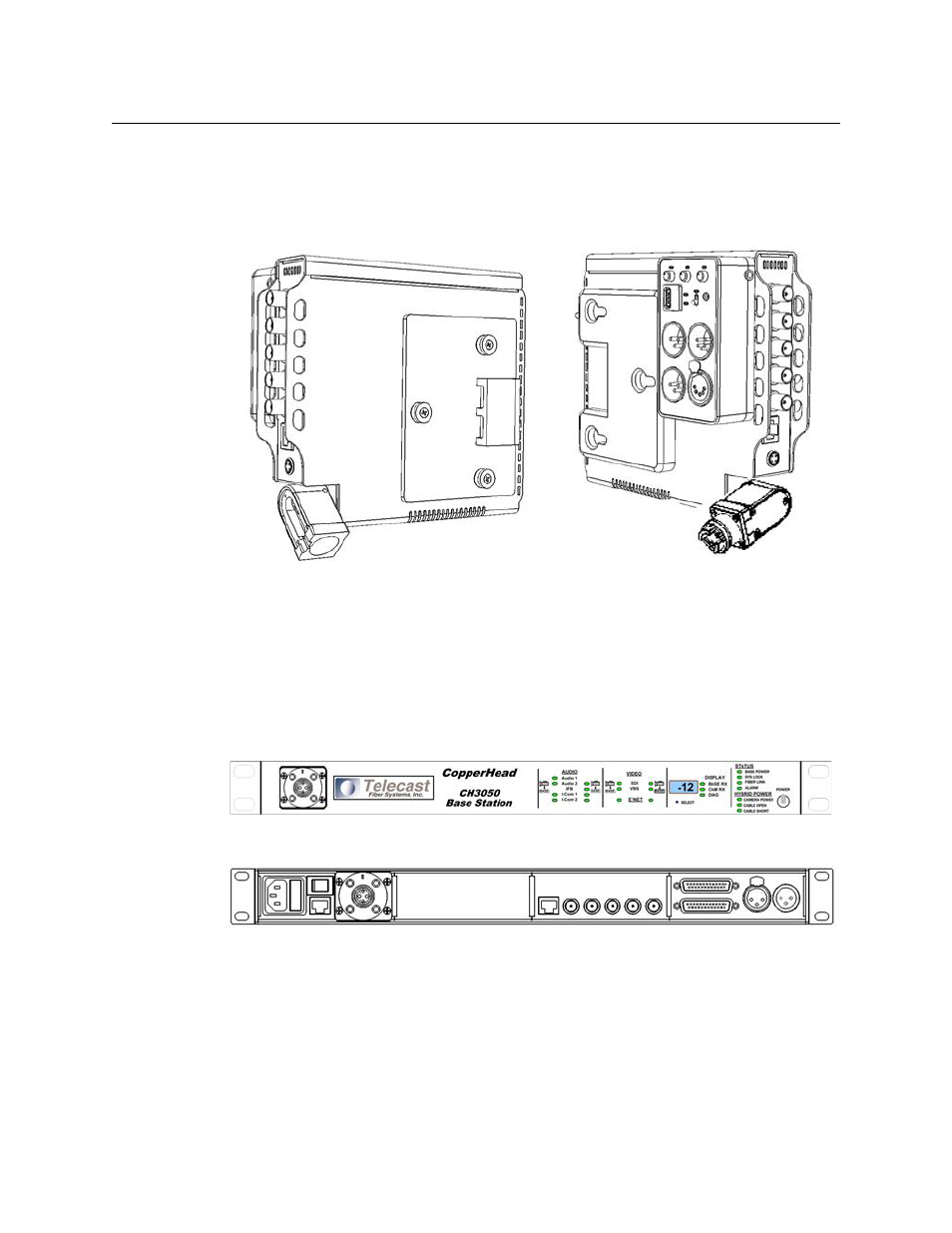

Fig. 2-5: Camera Unit Front and Back Side
The actual appearance of your CopperHead 3050 Camera Unit will vary depending on the
battery mount and fiber cable connection options specified at the time of purchase.
CopperHead 3050 Base Station
Fig. 2-6: CopperHead 3050 Base Station Front Panel
Fig. 2-7: CopperHead 3050 Base Station Connector or Back Panel
The actual appearance of your CopperHead 3050 Base Station will vary depending on the
fiber cable connection and power options specified at the time of purchase.
Camera Unit Front Side
(attached to the camera) Back Side (attached to the
battery/power supply)
