39
CopperHead 3050
User Guide
SMPTE Hybrid Fiber between the MPS Power Unit and Camera Unit
ST Fiber Connectors between Base Station and External Power Unit Camera powered by
Power Wafer.

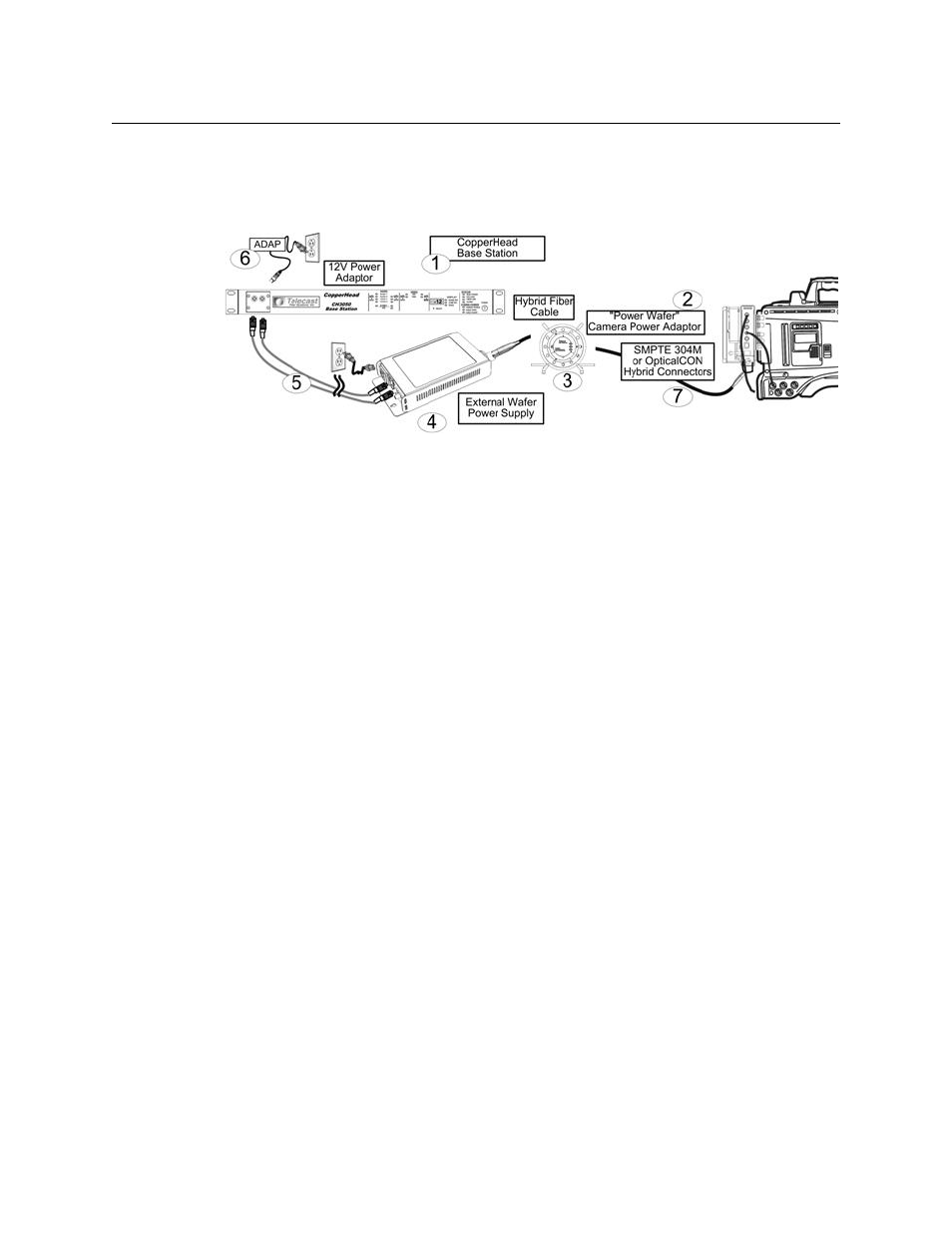

Fig. 5-4: SMPTE Hybrid Fiber between the MPS Power Unit and Camera Unit
Between the Base Station (1) and the External Wafer Power Supply (4), connect a pair of ST
Fiber Cables (5).
Power the External Wafer Power Supply locally by connecting to AC Power. Between the
External Wafer Power Supply (4) and the Camera Unit, connect a length of SMPTE Hybrid
Fiber Cable (3). At each end of the fiber cable,there will be either an OpticalCON or SMPTE
304M Connector (7).
The Base Station connector (1) may be mounted either on the front or back of the Base
Station. The camera will be powered by the
CopperHead Power Wafer Camera Power Supply
(2).
The Base Station will be powered by connection to local AC power (6).
