Physical Installation
Relocation of the CopperHead 3050 Base Station Fiber connector
Relocation of the CopperHead 3050 Base Station Fiber connector
The CopperHead 3050 Base Station may be configured with the Fiber Connector mounted
either on the back or the front of the Base Station. You may order your Base Station in either
configuration and it is possible to relocate the Fiber Connector from one position to the
other in the field.

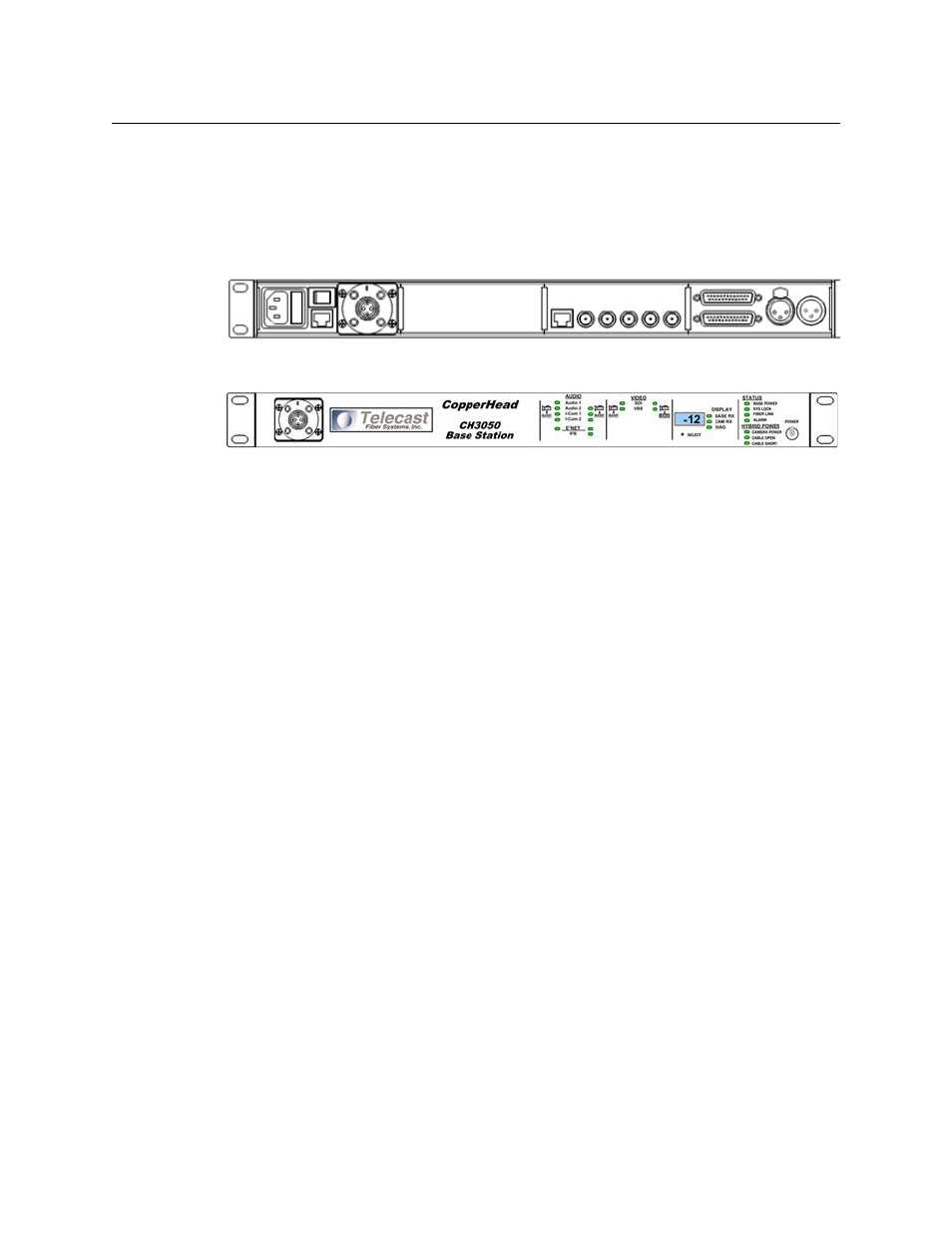

Fig. 4-4: CopperHead 3050 Base Station with Rear Mounted Fiber Connector
Fig. 4-5: CopperHead 3050 Base Station with Front Mounted Fiber Connector
The Fiber Connector relocation process can be completed by a qualified Grass Valley Fiber
technician in about 15 minutes or less. If you perform this task yourself, you shoul budget
about one hour.
For a complete illustrated step-by-step procedure, go to http://www.miranda.com/support
and click on the CopperHead 3050 Technical Notes link or Grass Valley support directly.
