14
Detailed Description
CopperHead 3050 Camera Unit Back Side
Area B - Audio/Intercom Connector Panel

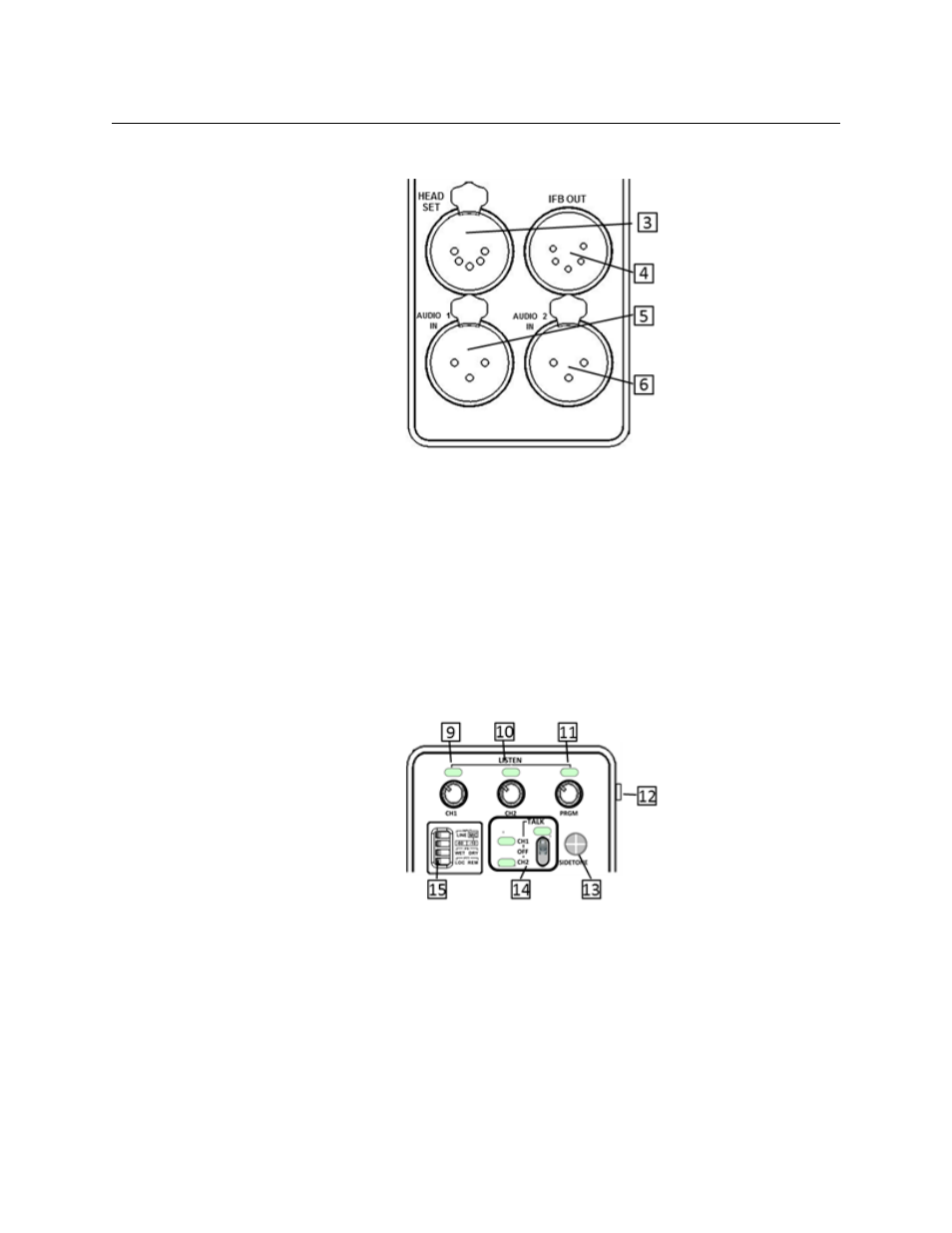

Fig. 3-3: Audio/Intercom Connector Panel
• 3- Intercom Head Set Connector
• 4 - IFB Out: carries the IFB Circuit Signal typically for reporter use
• 5 - Audio 1 Input (Line Level) - (to Base Station): typically audio program from camera
line outputs
• 6 - Audio 2 Input (Line Level) - (to Base Station): typically audio program from camera
line outputs
For information on the Audio/Intercom Connector Panel operation, see Set Up of the
CopperHead 3050 Transceiver System for operation on page 48.
Area C - Intercom Controls
Fig. 3-4: Intercom Controls
• 9 - Intercom 1 Monitor Level Control and Activity Indicator
• 10- Intercom 2 Monitor Level Control and Activity Indicator
• 11 - Return Program Monitor Level Control and Activity Indicator
• 12 - Intercom & Return Program Output: mini-phone jack with no microphone
functionality
• 13 - Sidetone Control
• 14 - Intercom Talk Control
