CopperHead 3050
User Guide
Additional CopperHead 3050 Transceiver System Items
Your CopperHead 3050 Transceiver System may consist of one or more of the following
items:
• Portable fiber reel with fiber per your purchase order
• Optional Universal Camera Control Unit (please refer to the User's guide supplied with
this product)
• Optional "Power Wafer" Camera Adaptor
• Optional MPS External Power Wafer Power Supply
• Optional "PowerPlus" Camera Adaptor and Power Adaptor (please refer to the User's
guide supplied with this product or refer to a Technical Bulletin available at
• Optional HDX Power Unit (please refer to the User's guide supplied with this product or
refer to a Technical Bulletin available at
"Power Wafer" Camera Adaptor
The CopperHead 3050 Camera Unit can be powered by the optional "Power Wafer" Camera
Adaptor. The Power Wafer replaces the local camera battery and any local AC power supply
adaptor. The Power Wafer gets its power from the Hybrid fiber cable and the CopperHead
3050 Base Station equipped with the internal power supply or from the MPS external
supply.

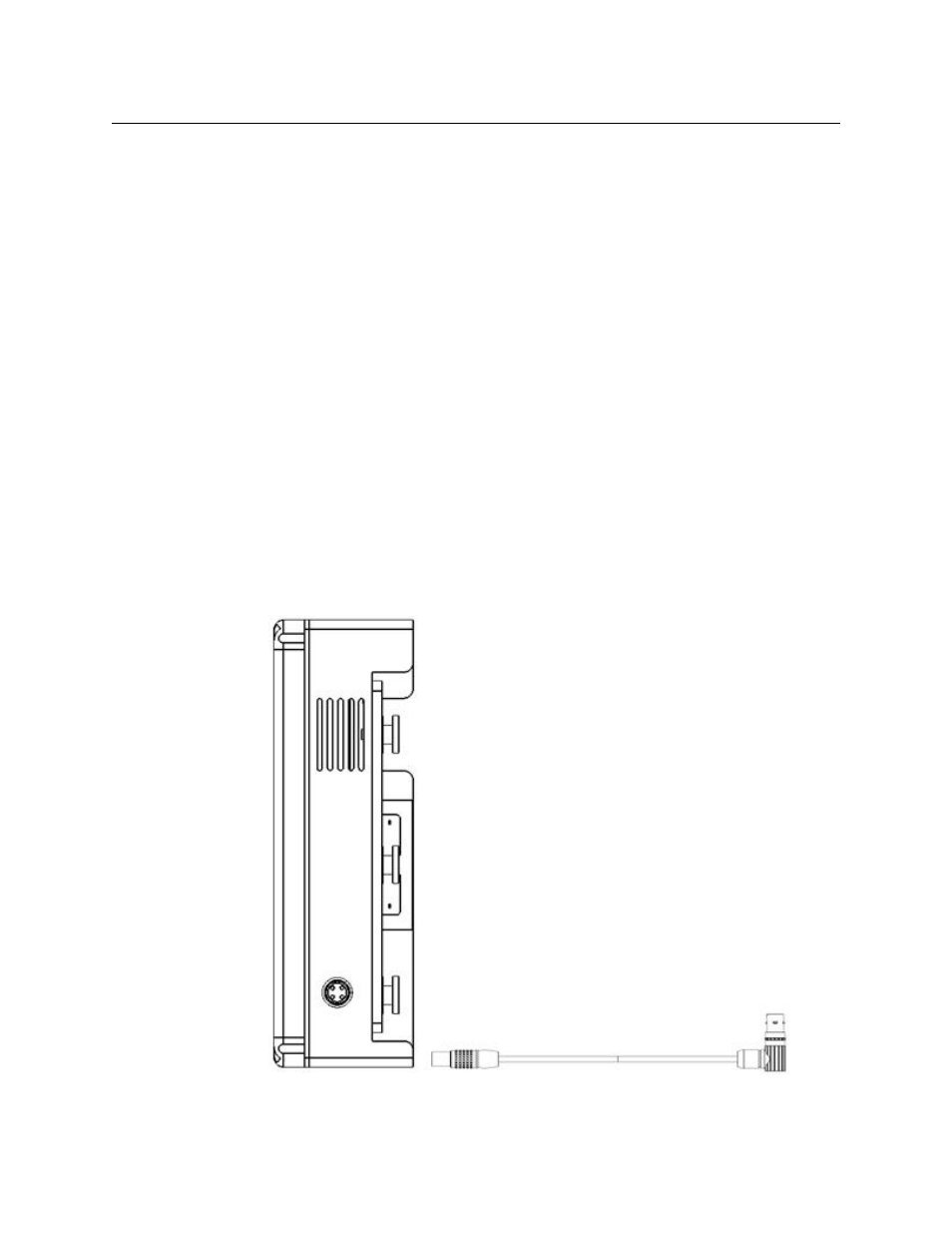

Fig. 3-26: Power Wafer and Hybrid Fiber Cable
Hybrid Fiber Cable
