4.3.10 Cascading
For applications exceeding the number of available ports, the system can
be extended by cascading.
In this case, the Draco major devices are connected by so-called "tie
lines". The tie lines are dynamically configured to support connections in
both directions.
To access cascaded matrices from a console, one of the matrices has to
be configured as sub matrix (see Chapter 5.3.1, Page 67).

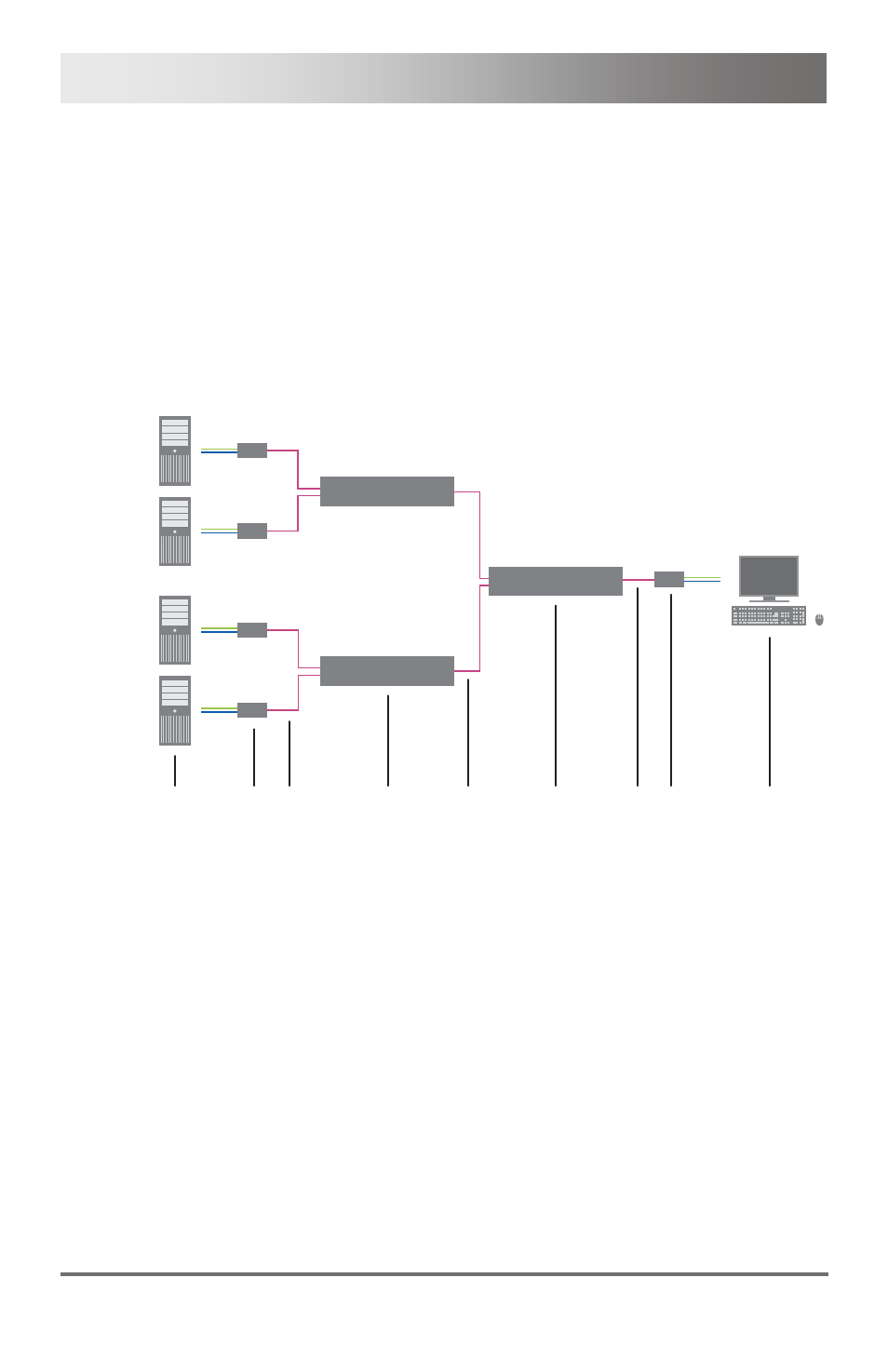

1 2 3 3 4 6 3 7 5
Cascading
1 Source (computer, CPU)
2 CPU Unit
3 Interconnect cable
4 Draco major (sub matrix)
5 Draco major (main matrix)
6 CON Unit
7 Console (monitor, keyboard and mouse)
