4.3.1 Single-Head Matrix (KVM)
Up to 16 users can have access to up to 32 CPUs in the Single-Head
operation mode. Though a non-blocking access is given for all users that
means no user can be disturbed by any activity from another user.
1 2 3 5 3 6 4

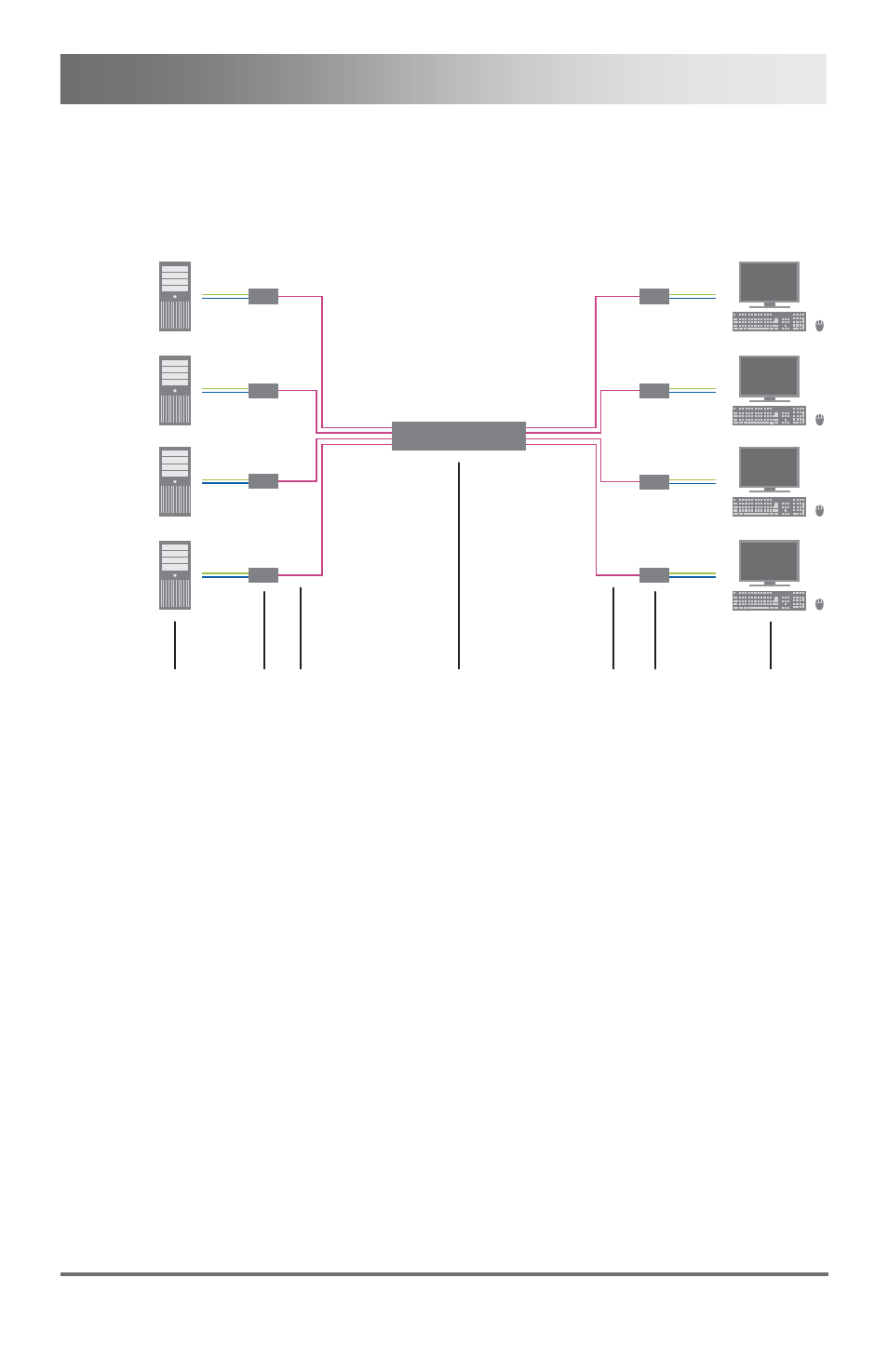

Single-Head Matrix (KVM)
1 Source (computer, CPU)
2 CPU Unit
3 Interconnect cable
4 Draco major matrix
5 CON Unit
6 Console (monitor, keyboard, and mouse)
If you have a Single-Head console, you can also get access to Dual-Head
or Quad-Head CPUs. However, control will only be given at monitor one.
