Draco major
156 2011-10-11

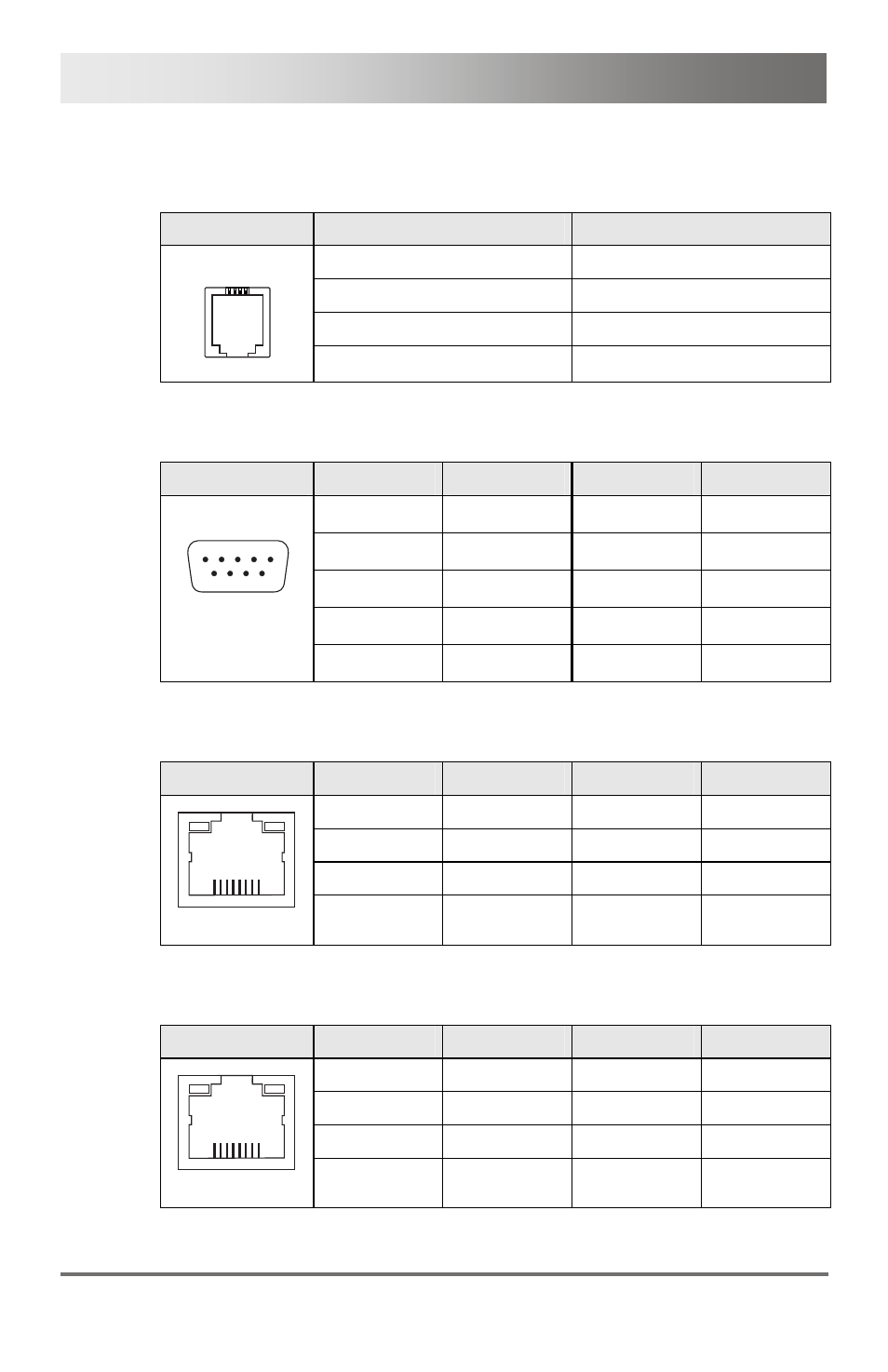

7.5 Connector Pinouts
RJ10 (Serial Control)
Picture Pin Signal
1 LED +
2 LED -
3 Dry Contact
1..4
4 GND
D-Sub 9 (Serial)
Picture Pin Signal Pin Signal
1 n.c. 6 DTR
2 CTS 7 TxD
3 RTS 8 RxD
4 DSR 9 n.c.
1.................5
6...........9
5 GND
RJ45 (Network)
Bild Pin Signal Pin Signal
1 D1+ 5 n.c
2 D1- 6 D2–
3 D2+ 7 n.c
8..........1
4 n.c 8 n.c
RJ45 (Interconnect)
Picture Pin Signal Pin Signal
1 D1+ 5 D3–
2 D1- 6 D2–
3 D2+ 7 D4+
8..........1
4 D3+ 8 D4-
