Configuration
2011-10-11
133
OSD
Select
Status > Crosspoint Switch
in the main menu.

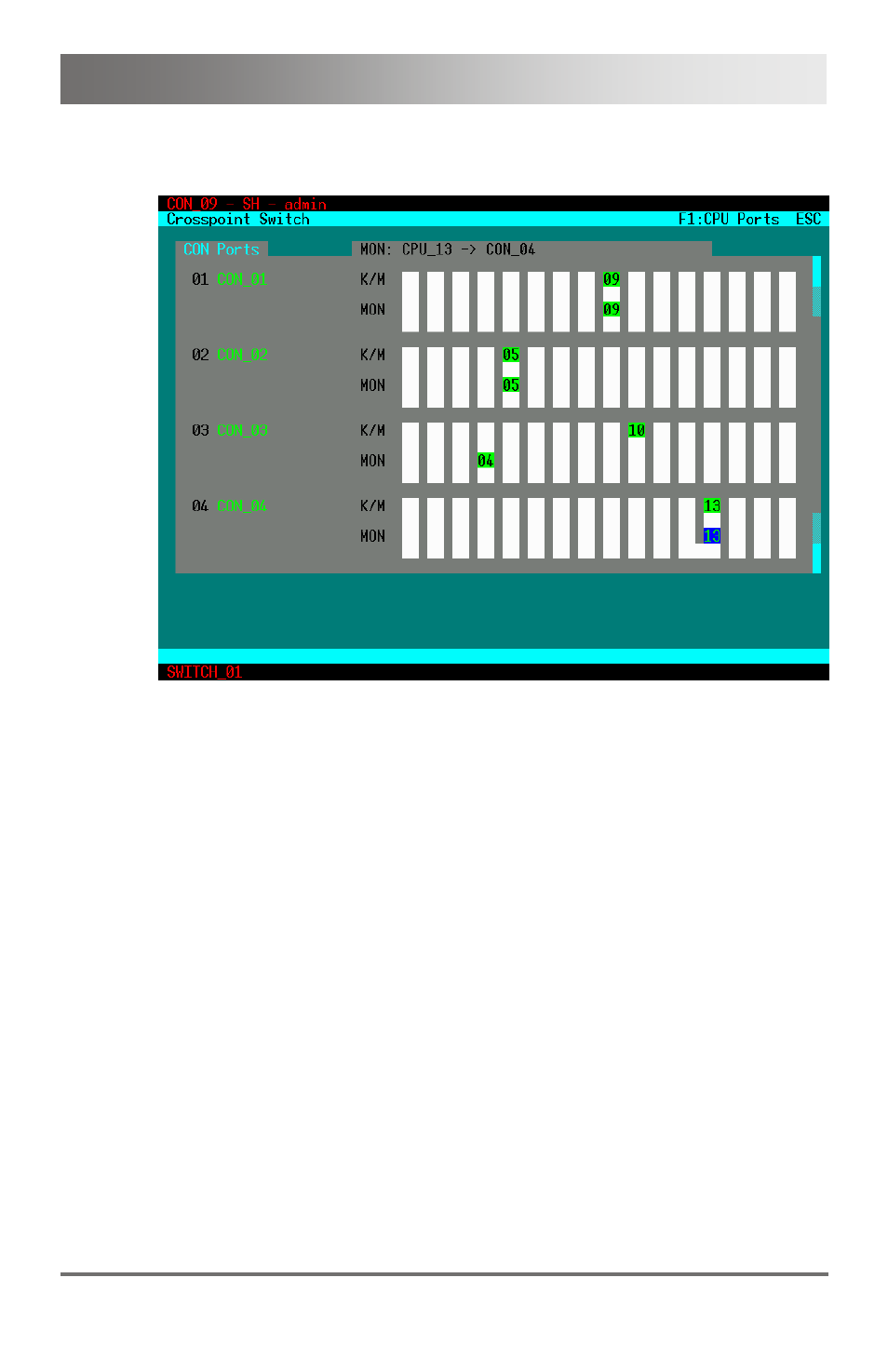

Menu Crosspoint Switch
The data for a maximum of four CON ports are shown in the columns.
The 32 CPU ports are shown in the lines (two lines with respectively
16 CPUs).
In the upper two lines (K/M) of any CON port is shown, to which CPU
the keyboard/mouse signals have to be sent.
In the lower two lines (MON) of every single CON port is shown, from
which CPU the video signal is displayed.
The switching of a single keyboard/mouse or video signal is done by the
key
key
