Draco major
136 2011-10-11

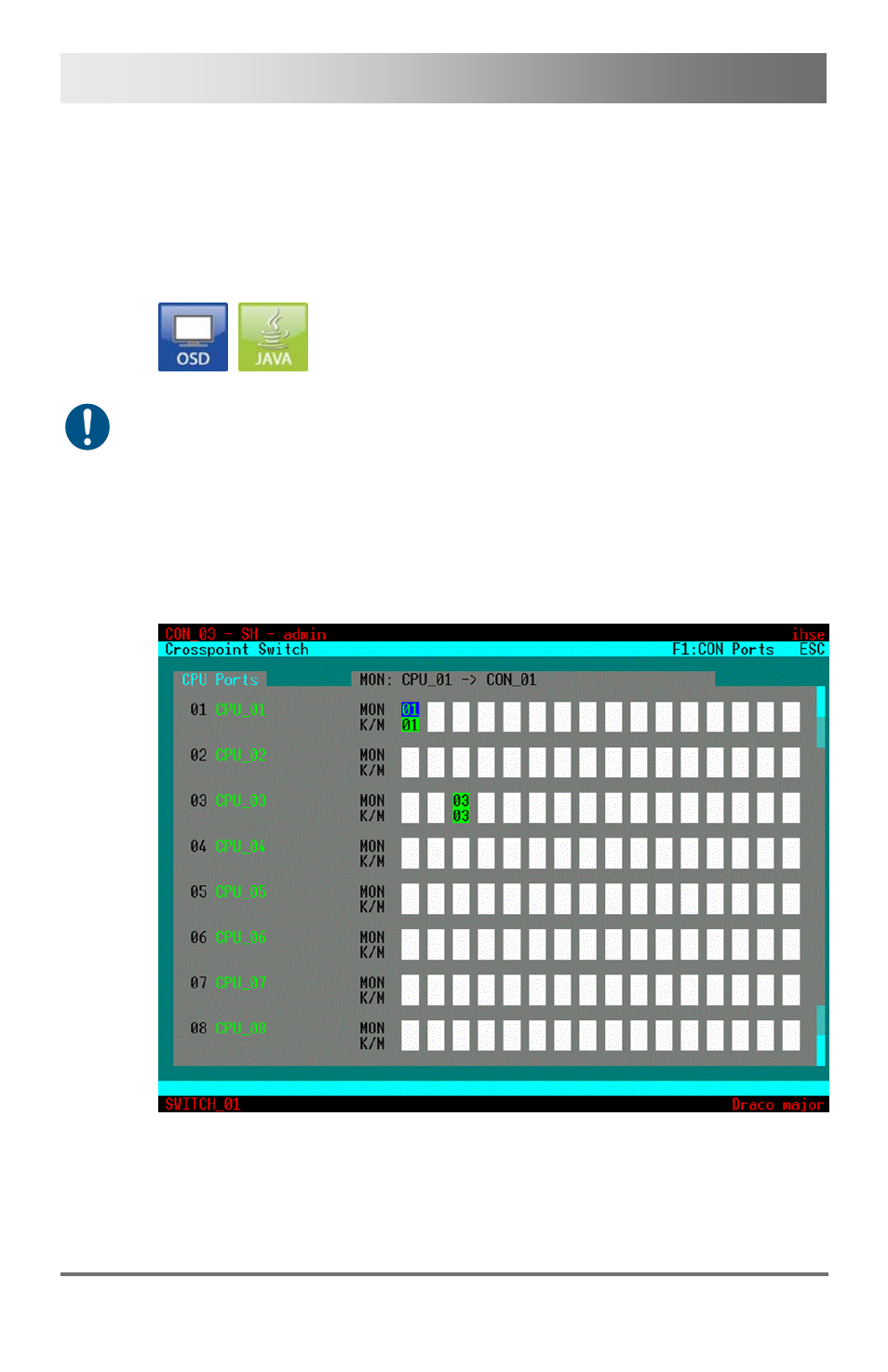

6.3.2 Crosspoint Switch Function (CPU Ports)
In the menu Crosspoint Switch, the various CPUs are shown that can be
switched to available consoles. For the best overview, a matrix display is
used in this case.
You have the following possibilities to access the menu:
The switching function is done immediately. The user has to take care of
the legitimacy of the switching operation. There is no control by the
system.
OSD
 Select
Status > Crosspoint Switch
in the main menu.
 Press the key to get to the menu CPU Ports.
Menu Crosspoint Switch (CPU Ports)
