Configuration
2011-10-11 137
 The 32 CPU ports are shown in the columns.
 In the lines the 16 possible CON ports are shown for every single
CPU.
 In the upper line (MON) of any CPU port is shown, on which console
the video signal of the current CPU port is shown.
 In the lower line (K/M) of any CPU port is pictured, on which console
the keyboard/mouse control is at the moment.
Practically any number of monitors can be switched to a CPU in a line, but
always only 1x keyboard/mouse (K/M).
Java-Tool
 Select
CP Switch > CPU Ports
in the task area.

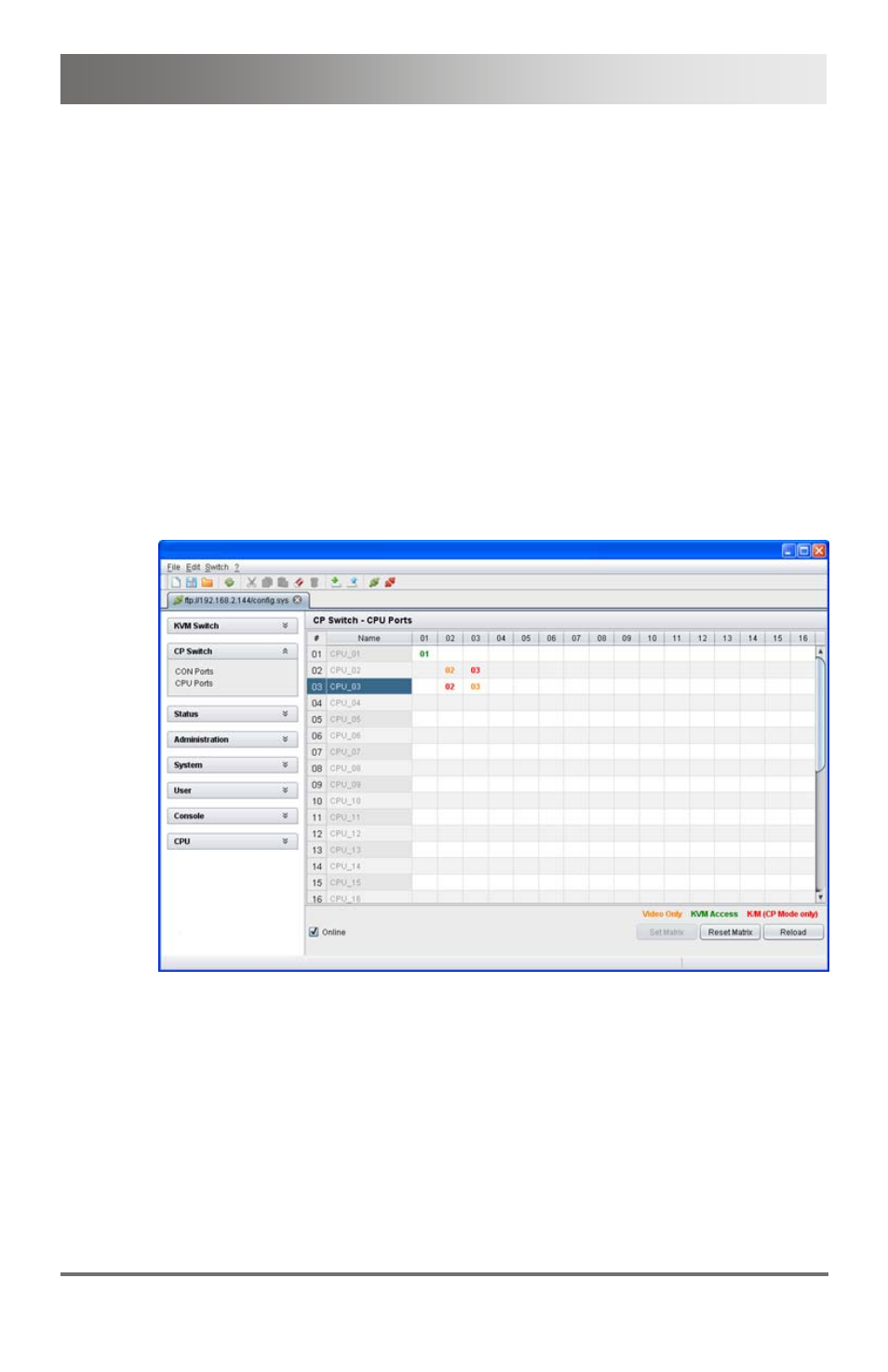

Menu CP Switch – CPU Ports
To set a connection between a console and a source (Computer, CPU),
proceed as follows:
 Double click with the mouse on the according matrix field and select
the desired type of connection (Video Only or KVM-Access).
If you select the empty field in the selection list, the current connection will
be closed.
