Java Tool
 Select in the task area CP Switch > CON Ports.

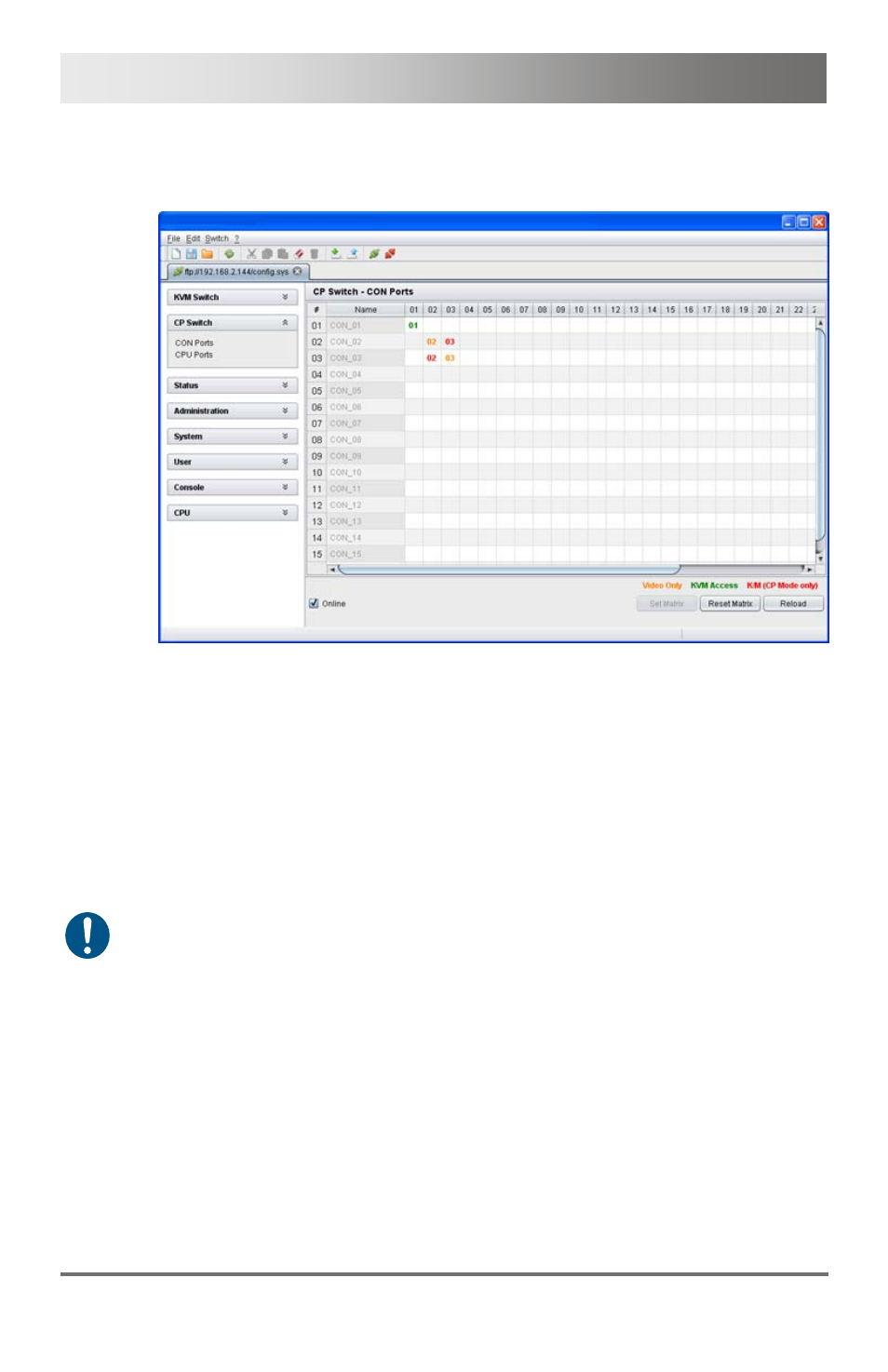

Menu CP Switch – CON Ports
To set a connection between a console and a source (Computer, CPU),
proceed as follows:
 Double click with the mouse on the according matrix field and select
the desired type of connection (Video Only or KVM-Access).
If you select the empty field in the selection list, the current connection will
be closed.
If connections should be established or closed, a popup window will open
after the respective change to confirm the operation by Yes or to reject by
No
(online check mark has to be set).
To connect all available CON units to a video signal from a CPU unit at
the same time, proceed as follows:
 Use the right mouse button to click in the respective CPU number in
the line CPU of the matrix and afterwards select the menu item Set
All Available Video Channels
in the opening selection list.
To close all connections between the respective CPU and the connected
consoles, proceed as follows:
